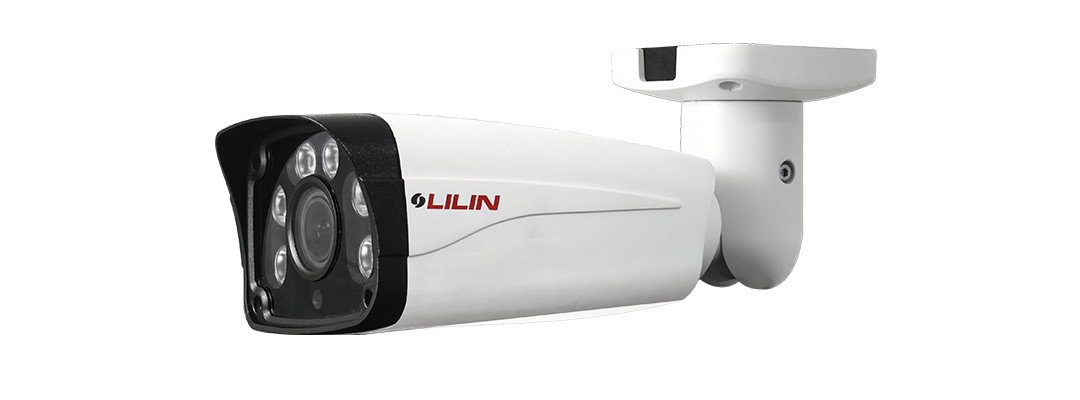

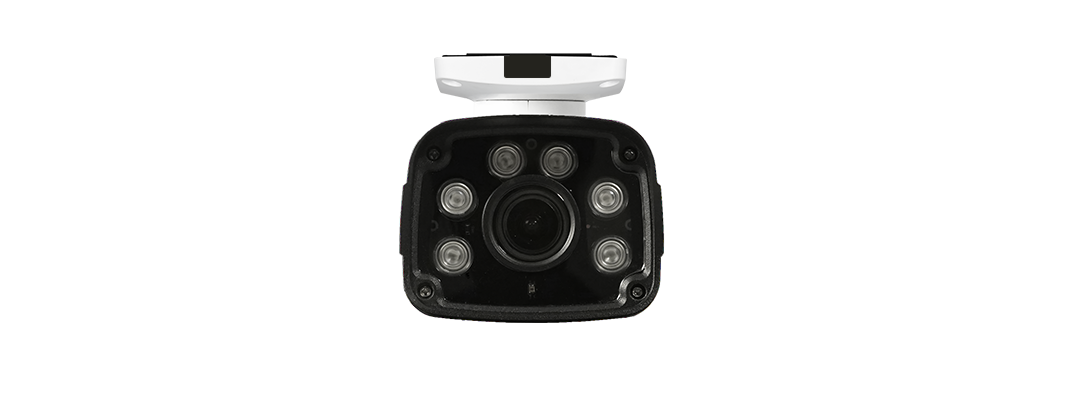

LiLin - Z6W9582X3 - 4K Day & Night Auto Focus Smart Dual Light Bullet IP Camera
Part number:
Price:
Product Overview
The LILIN Z6W9582X3 is a 4K Day & Night Auto Focus Smart Dual Light Bullet IP Camera designed for high-resolution outdoor surveillance. It combines an 8 megapixel CMOS image sensor, motorized zoom/focus lens, dual-light illumination, H.265/H.264 compression, and rugged IP67/IK10 protection for demanding security environments.
Key Configuration
Model: Z6W9582X3 | Resolution: 4K / 8MP | Lens: Auto focus motorized zoom/focus | Illumination: IR up to 50m, WarmLight up to 40m | Protection: IP67 / IK10
Key Features
- 8MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus motorized zoom/focus lens for flexible scene adjustment
- Smart dual-light illumination with IR distance up to 50m and WarmLight viewable length up to 40m
- 3D noise reduction, 2D WDR, HDR up to 140dB, IVS / AI, and SMART event support
- Two-way audio, Digital I/O 1 in / 1 out, and ONVIF Profile S, T, G, M support
Technical Context
The Z6W series uses dual-light technology to combine infrared night imaging with WarmLight illumination for color visibility when needed. Advanced HDR, WDR, and noise reduction help maintain usable image detail in mixed lighting, while edge-based IVS and AI functions support intelligent event detection without relying only on basic motion triggers.
Installation Notes
The IP67-rated housing supports outdoor installation in rain and dusty environments, while IK10 vandal resistance helps protect the bullet camera in exposed commercial, perimeter, and public-area deployments.
| General | |
| Model | Z6W9582X3 |
| Light sensor | Yes |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Network OS | Embedded Linux 4.19 |
| Dimensions | 100(W) x 85(H) x 284(D) mm |
| Weight | 1000g |
| Casing Material | Aluminum alloy |
| Warranty | 3 Year(s) |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color: 0.01 Lux at F1.35 ; B/W: 0.005 Lux at F1.35 ; 0 Lux with Light LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.4 (W) – F2.2 (T) |
| Iris Control | Fixed IRIS |
| Angle of View | 109.8° (W) – 46.2° (T) (H) , 57.2° (W) – 25.9° (T) (V) , 126.3° (W) – 53° (T) (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 50M, Warm Light : 40M |
| Pick Up Element | 1/1.8" CMOS image sensor |
| Effective pixels | 3856 (H) × 2176(V) = 8,390,656 (Pixels) |
| Auto Focus | Support |
| Smart IR | Yes |
| Video & Image | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 20 FPS @ 3840 × 2160 50Hz: 20 FPS @ 3840 × 2160 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Audio & I/O | |
| Audio Input / Output | Audio 1 input / 1 output, Mono, 1.98 Vp-p, 2.2KΩ, Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW) , Terminal Block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| RCM | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 8.7W / PoE, 10.1W |
