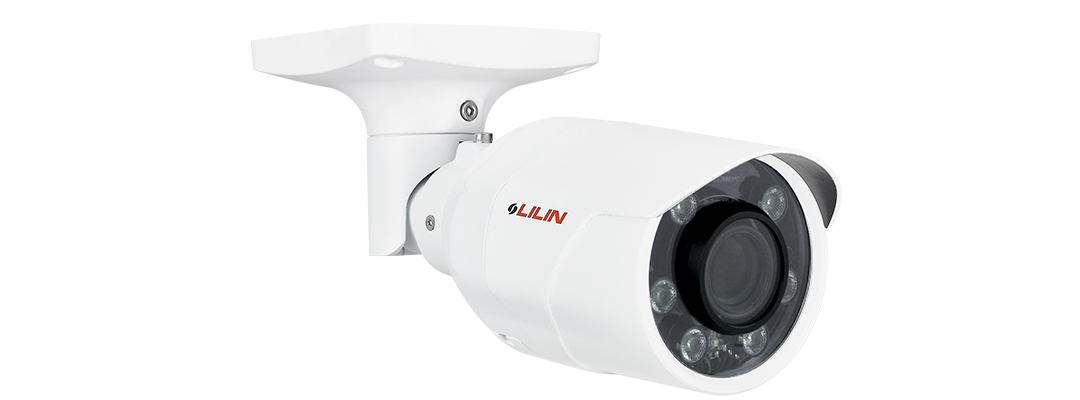

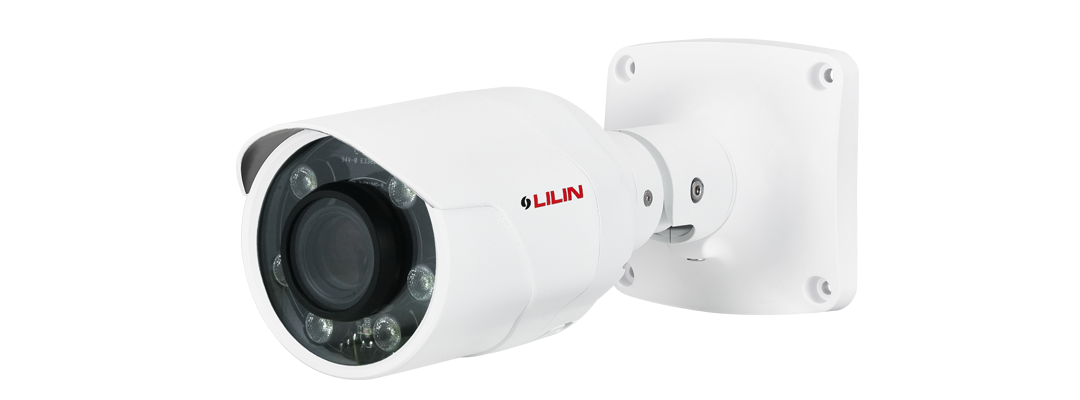

LiLin - Z7R8182X10-P - Starvis 4K P-Iris Auto Focus IR AI Smart IP Camera
Part number:
Price:
Product Overview
The LILIN Z7 Series is a high-end, multi-functional AI camera platform designed for advanced surveillance applications. It combines 8 megapixel Ultra HD imaging, motorized zoom/focus control, strong IR performance, and onboard edge AI processing for real-time recognition and event handling.
Key Configuration
Series: LILIN Z7 | Resolution: 8MP / Ultra HD | Lens: Auto focus motorized zoom/focus with P-IRIS | IR Range: Up to 55m | Protection: IP68 / IK10
Key Features
- 8MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus motorized zoom/focus lens with P-IRIS support
- HDR function up to 140dB with 3D noise reduction and digital PTZ
- AI-supported edge recognition with optional AI license modules
- High-efficiency IR LED with radiant distance up to 55m
- Two-way audio, digital I/O, RS-485, and cable-managed housing support
- ONVIF Profile S, T, G, and M support for flexible VMS integration
Technical Context
The Z7 Series performs image recognition and event processing directly at the edge, reducing the need for separate AI processing units or PC intermediaries. It supports a broad range of AI modules for perimeter detection, face mask detection, people and vehicle counting, safety detection, fire and smoke detection, license plate recognition, vehicle classification, vessel detection, and animal detection.
With comprehensive hardware and software I/O interfaces, including digital I/O ports and integration libraries, the Z7 Series is suitable for demanding intelligent monitoring, automation management, and security protection environments.
Installation Notes
The IP68-rated housing is built for harsh outdoor environments with rain and dust exposure, while IK10 vandal resistance helps protect the camera in exposed public, commercial, and industrial locations.
| General | |
| Model | Z7R8182X10-P |
| Light sensor | Yes |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| Network OS | Embedded Linux 4.14 |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1150g |
| Casing Material | Aluminum alloy |
| Window / Glass Thickness | Ø75 Heat Resistant Glass |
| Warranty | 3 Years |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.05 Lux at F1.6 ; B/W : 0.01 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 5~50mm (zoom / focus motorized) |
| Iris | F 1.6 |
| Iris Control | P-IRIS |
| Angle of View | 41.8° (W) - 6.4° (T) (H) 31.0° (W) - 4.8° (T) (V) 53.2° (W) - 8.0° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 30° |
| Max IR distance | 55M |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| Auto Focus | One Push |
| Video & Image | |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC Connector |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| EV (Exposure Value) | Adjustable |
| ePTZ & Digital Zoom | Yes |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, QoS, beat, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| IP Rating | IP68 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at compliant) |
| Power Consumption | DC12V,13.1W / PoE+, 14.9W |
