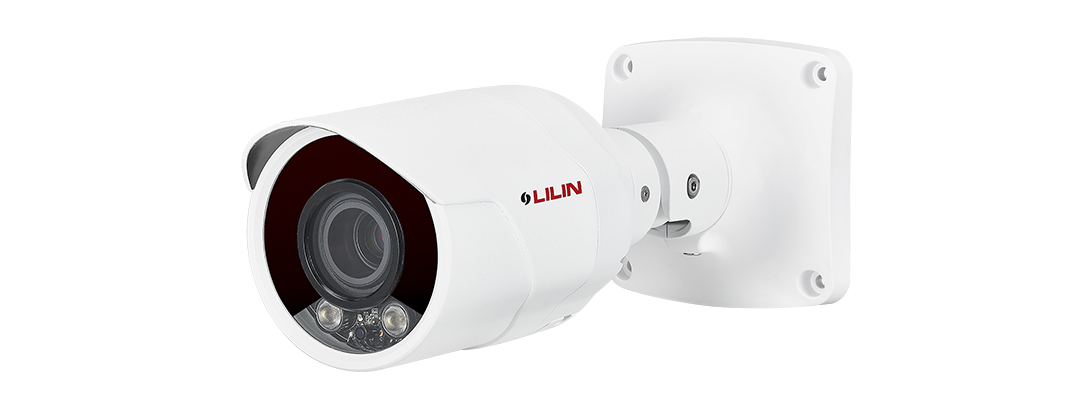

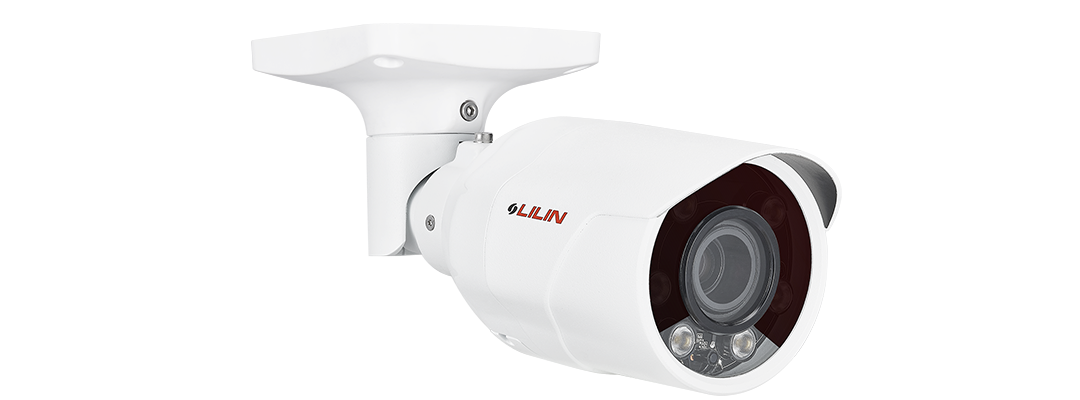

LiLin - Z7R8182X2-P - Starvis 4K P-Iris Auto Focus IR AI Smart IP Camera
Product Overview
The LILIN Z7R8182X2-P is a Starvis 4K P-Iris Auto Focus IR AI Smart IP Camera designed for high-end surveillance applications that require strong image quality, advanced AI analytics, and reliable outdoor protection. It combines an 8 megapixel CMOS sensor, motorized zoom/focus lens, P-Iris control, high-efficiency infrared illumination, and edge-based AI recognition in one professional camera platform.
Key Configuration
Model: Z7R8182X2-P | Resolution: 4K / 8MP | Lens: Auto focus motorized zoom/focus with P-Iris | IR Range: Up to 55m | Protection: IP68 / IK10
Key Features
- 8MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus motorized zoom/focus lens with P-Iris support
- 3D noise reduction, HDR up to 140dB, and digital PTZ support
- AI-supported edge recognition with metadata, SMART events, and alarm integration
- High-efficiency IR LED with radiant distance up to 55m
- ONVIF Profile S, Profile T, Profile G, and Profile M supported
Technical Context
As part of the Z7 Series, this camera is built for advanced edge AI applications. It can process image recognition and event data directly at the camera level, reducing the need for external AI processing units or PC-based analytics servers.
The Z7 platform supports a broad range of AI modules for perimeter detection, face mask detection, people and vehicle counting, safety compliance, smoke and fire detection, license plate recognition, traffic enforcement, vessel detection, and animal detection. These capabilities make it suitable for intelligent monitoring, automation management, and high-security environments.
Installation Notes
The IP68-rated housing supports outdoor installation in rain, dust, and demanding weather conditions, while IK10 vandal resistance helps protect the camera in exposed public, commercial, or industrial locations. The cable-managed housing and bracket support cleaner installation and improved cable protection.
| General | |
| Model | Z7R8182X2-P |
| Light sensor | Yes |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| Network OS | Embedded Linux 4.14 |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1120g |
| Casing Material | Aluminum alloy |
| Window / Glass Thickness | Ø75 Heat Resistant Glass |
| Warranty | 3 Years |
| Camera & Lens | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.04 Lux at F1.6 ; B/W : 0.008 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 6 – 22mm (zoom / focus motorized) |
| Iris | F 1.6 |
| Iris Control | P-IRIS |
| Angle of View | 42.8° (W) – 18.3° (T) (H) , 23.6° (W) – 10.4° (T) (V) , 49.7° (W) – 21.1° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 30° |
| Max IR distance | 55M |
| Pick Up Element | 1/2.8" CMOS image sensor |
| Effective pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| Auto Focus | One Push |
| Video & Image | |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC Connector |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| High Dynamic Range(HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| EV (Exposure Value) | Adjustable |
| ePTZ & Digital Zoom | Yes |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Audio & I/O | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Network & Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Network Interface/Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, ONVIF Profile M |
| Max number of online users | 10 simultaneous users |
| Integration & Analytics | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G, ONVIF Profile M / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Storage | |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| System Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above Microsoft® Edge (IE mode) |
| Approvals & Environment | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| BSMI Certification | Yes, CNS 15963 |
| IP Rating | IP68 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at compliant) |
| Power Consumption | DC12V,13.1W / PoE+, 14.9W |
