Luminys - A3T-2LA2 - 2MP Dual-illumination Analog Turret Camera
Product Overview

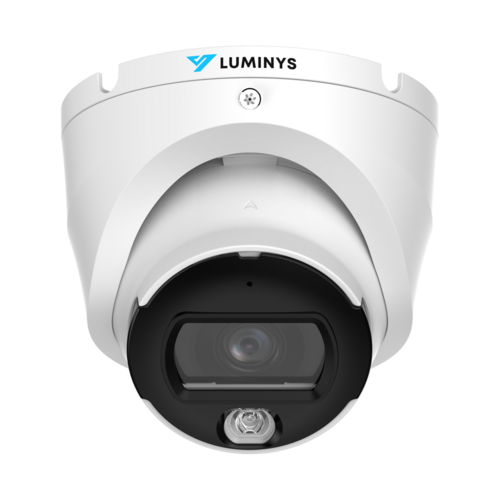

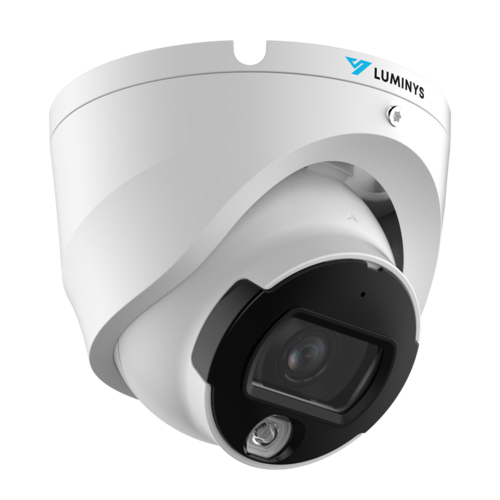

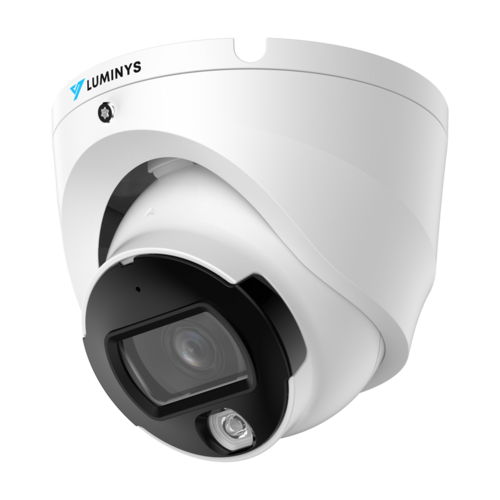

Luminys A3T-2LA2 is a 2 MP dual-illumination HD analog turret camera with a 2.8 mm fixed F2.0 lens and built-in microphone. It supports CVI, TVI, AHD, and CVBS video through a BNC connection, combining IR and white-light illumination with DWDR, 3D noise reduction, and IP67 protection for reliable indoor or outdoor surveillance.
Key Configuration
Model: A3T-2LA2 | Camera Type: 2 MP HD analog turret | Sensor: 1/3.2-inch 2 MP CMOS | Resolution: Up to 1920 × 1080 | Lens: 2.8 mm fixed F2.0 | Video Output: BNC, CVI/TVI/AHD/CVBS | Illumination: IR and white light up to 20.1 m | Audio: Built-in microphone | Protection: IP67
Key Features
- · 2 MP CMOS sensor provides video up to 1920 × 1080 resolution
- · 2.8 mm fixed F2.0 lens provides a 100° horizontal field of view
- · Supports CVI, TVI, AHD, and CVBS video through a configurable BNC output
- · Dual illumination combines IR and white-light LEDs with illumination up to 20.1 m
- · Automatic, manual, or disabled illuminator control supports different installation requirements
- · DWDR, 3D noise reduction, BLC, and HLC improve image clarity in high-contrast scenes
- · Built-in microphone provides audio input for compatible recording systems
- · Automatic ICR day/night switching supports color and black-and-white monitoring
- · 12 V DC power and 0°-360° pan/rotation with 0°-78° tilt simplify installation
- · IP67-rated metal housing operates from -40°C to +60°C and complies with FCC, IC, and NDAA requirements
Technical Context
The camera's dual-illumination system can use infrared light for discreet night monitoring or white light for visible-color illumination, with either mode reaching up to 20.1 m. DWDR balances bright and dark areas, while 3D noise reduction helps suppress image noise in low-light scenes. The DIP-switch-configurable BNC output allows the camera to integrate with CVI, TVI, AHD, or legacy CVBS DVR systems.
Installation Notes
The camera measures Ø94.0 × 85.3 mm and weighs approximately 0.3 kg. It requires 12 V DC power and supports a 0.5 m close-focus range. Compatible junction-box, wall, pole, and ceiling mounting accessories are available separately and should be selected as a complete compatible combination.
| Technical Specifications | |
| Product Model | A3T-2LA2 |
| Product Series | Luminys Starter Series |
| Camera Type | 2MP dual-illumination HD analog turret camera |
| Video Standards | CVI, TVI, AHD, and CVBS |
| Image Sensor | 1/3.2-inch 2MP CMOS |
| Maximum Resolution | 1920 × 1080 |

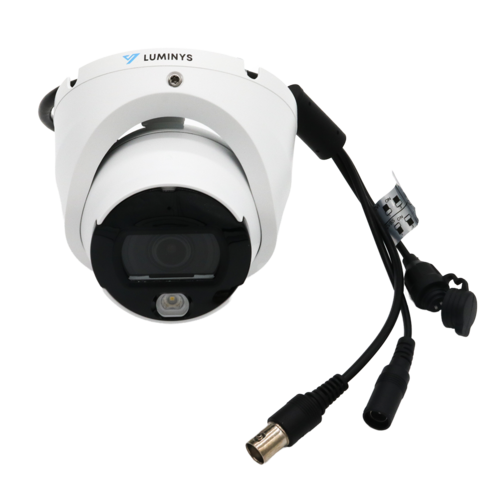

| Video Output | BNC output with CVI/TVI/AHD/CVBS selection via DIP switch |
| Stream Capability | 1 video stream |
| Lens Type | Fixed lens |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Field of View | Horizontal: 100° Vertical: 54° Diagonal: 117° |
| Close Focus Range | 0.5 m (1.6 ft) |
| Illumination | |
| Illuminators | 1 × multi-core light with IR and white-light LEDs |
| Illuminator Control | Automatic, manual, or off |
| IR Illumination Distance | Up to 20.1 m (66.0 ft) |
| White-Light Illumination Distance | Up to 20.1 m (66.0 ft) |
| Minimum Illumination | Color: 0.02 lux at F2.0 Black and white: 0.002 lux at F2.0 0 lux with IR light on |
| Video and Image Performance | |
| Maximum Frame Rate | CVI: 1080p at 25 fps; NTSC 1080p at 30 fps AHD: 1080p at 25 fps; NTSC 1080p at 30 fps TVI: 1080p at 25 fps; NTSC 1080p at 30 fps CVBS: 960H; NTSC 960H at 30 fps |
| Supported Resolutions | 1080p, 720p, 960H, D1, and CIF |
| Day/Night Mode | Automatic ICR, color, or black and white |
| Light Balancing | Digital Wide Dynamic Range (DWDR) |
| Noise Reduction | 3D noise reduction |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Signal-to-Noise Ratio | More than 65 dB |
| Mirror and Rotation | Supported |
| DORI Distance | Detect: 44.8 m (147.0 ft) Observe: 18.0 m (59.0 ft) Recognize: 8.8 m (29.0 ft) Identify: 4.6 m (15.0 ft) |
| Audio | |
| Audio Input | Built-in microphone |
| Electrical | |
| Power Supply | 12 VDC |
| Power Consumption | 2.4W maximum with LED illumination enabled |
| Mechanical | |
| Housing | Turret housing |
| Material | Metal |
| Pan and Rotation | 0° to 360° |
| Tilt | 0° to 78° |
| Product Dimensions | 94.0 mm diameter × 85.3 mm 3.7 × 3.4 in |
| Net Weight | 0.3 kg (0.7 lb) |
| Gross Weight | 0.4 kg (0.9 lb) |
| Packaging Dimensions (L × W × H) | 122.0 × 119.0 × 111.0 mm 4.8 × 4.7 × 4.4 in |
| Environmental Conditions | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | Less than 95% RH, non-condensing |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Ingress Protection | IP67 |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA compliant |
| Compatible Accessories | |
| Junction Box | LUM-J05 Purchased separately |
| Wall Mount | LUM-W05 Purchased separately |
| Pole Mount | LUM-P02 and LUM-W05 Both items are required and purchased separately |
| Ceiling Mount | LUM-A02 and LUM-E01 Both items are required and purchased separately |
