Luminys - A3T-2LAV - 2MP Dual-Light Analog Vari-focal Turret Camera
Product Overview

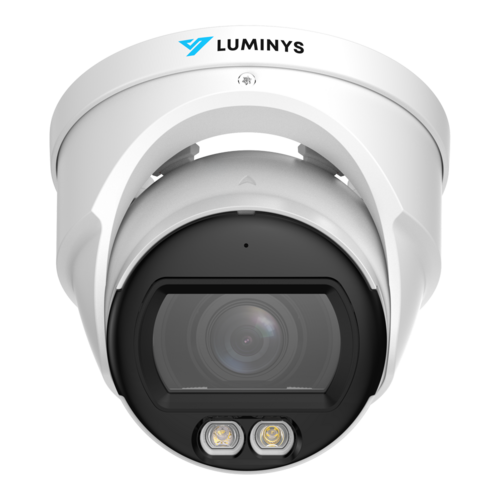

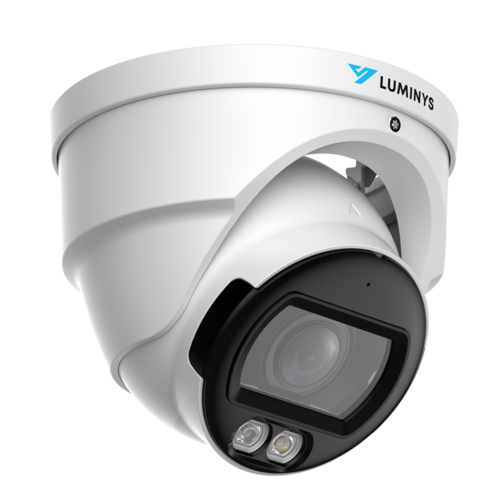

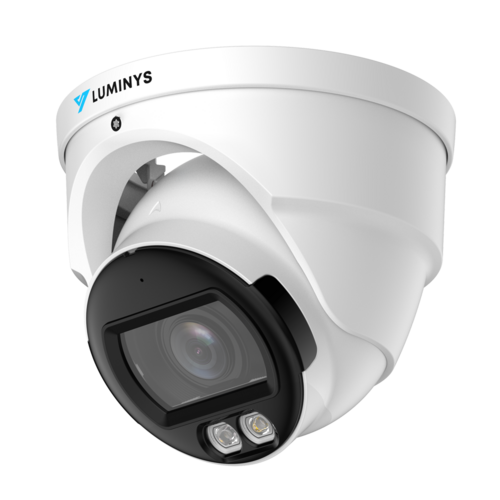

Luminys A3T-2LAV is a 2 MP dual-illumination HD analog turret camera with a 2.7-12.0 mm motorized varifocal lens and built-in microphone. It supports CVI, TVI, AHD, and CVBS video through a BNC connection, combining IR and white-light illumination with 130 dB WDR, 3D noise reduction, and IP67 protection for flexible indoor and outdoor surveillance.
Key Configuration
Model: A3T-2LAV | Camera Type: 2 MP HD analog turret | Sensor: 1/2.8-inch 2 MP CMOS | Resolution: Up to 1920 × 1080 | Lens: 2.7-12.0 mm motorized varifocal F1.5 | Video Output: BNC, CVI/TVI/AHD/CVBS | Illumination: IR up to 30 m, white light up to 25 m | Audio: Built-in microphone | Protection: IP67
Key Features
- · 2 MP CMOS sensor provides video up to 1920 × 1080 resolution
- · 2.7-12.0 mm motorized varifocal lens provides a 33°-102° horizontal field of view
- · Supports CVI, TVI, AHD, and CVBS video through a BNC output
- · Dual illumination combines IR up to 30 m and white-light illumination up to 25 m
- · Automatic, manual, or disabled illuminator control supports different installation requirements
- · 130 dB WDR, 3D noise reduction, BLC, and HLC improve image clarity in challenging scenes
- · Built-in microphone provides audio input for compatible recording systems
- · Automatic ICR day/night switching supports color and black-and-white monitoring
- · 12 V DC or 24 V AC power and 0°-360° pan/rotation with 0°-78° tilt simplify installation
- · IP67-rated metal housing operates from -30°C to +60°C and complies with FCC, IC, and NDAA requirements
Technical Context
The motorized varifocal lens allows operators to adjust the viewing angle from 102° to 33° horizontally, balancing broad scene coverage with closer inspection. Dual illumination can use infrared light for discreet night monitoring or white light for visible-color illumination. 130 dB WDR balances bright and dark areas, while 3D noise reduction helps suppress image noise in low-light scenes. The BNC output supports CVI, TVI, AHD, and legacy CVBS DVR systems.
Installation Notes
The camera measures Ø122.0 × 107.6 mm and weighs approximately 0.7 kg. It supports 12 V DC ±10% or 24 V AC ±25% power, with a 0.5 m close-focus range. Compatible junction-box, wall, pole, and ceiling mounting accessories are available separately and should be selected as a complete compatible combination.
| Technical Specifications | |
| Product Model | A3T-2LAV |
| Product Series | Luminys Starter Series |
| Camera Type | 2MP dual-illumination HD analog turret camera with motorized varifocal lens |
| Video Standards | CVI, TVI, AHD, and CVBS |
| Image Sensor | 1/2.8-inch 2MP CMOS |
| Maximum Resolution | 1920 × 1080 |
| Video Output | BNC output supporting CVI, TVI, AHD, and CVBS |
| Stream Capability | 1 video stream |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.7 mm to 12.0 mm |
| Maximum Aperture | F1.5 |
| Field of View | Horizontal: 33° to 102° Vertical: 19° to 53° Diagonal: 38° to 123° |
| Close Focus Range | 0.5 m (1.6 ft) |
| Illumination | |
| Illuminators | 2 × multi-core lights with IR and white-light LEDs |
| Illuminator Control | Automatic, manual, or off |
| IR Illumination Distance | Up to 30.0 m (98.0 ft) |
| White-Light Illumination Distance | Up to 25.0 m (82.0 ft) |
| Minimum Illumination | Color: 0.02 lux at F1.5 Black and white: 0.002 lux at F1.5 0 lux with IR light on |
| Video and Image Performance | |
| Maximum Frame Rate | CVI: 1080p at 25 fps; NTSC 1080p at 30 fps AHD: 1080p at 25 fps; NTSC 1080p at 30 fps TVI: 1080p at 25 fps; NTSC 1080p at 30 fps CVBS: 960 × 576H; NTSC 960 × 480H |
| Supported Resolutions | 1080p, 720p, 960H, D1, and CIF |
| Day/Night Mode | Automatic ICR, color, or black and white |
| Light Balancing | Wide Dynamic Range, 130 dB |
| Noise Reduction | 3D noise reduction |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Signal-to-Noise Ratio | More than 65 dB |
| Mirror and Rotation | Supported |
| DORI Distance | Detect: 47.5 m to 132.0 m (156.0 ft to 433.0 ft) Observe: 18.9 m to 53.0 m (62.0 ft to 174.0 ft) Recognize: 9.5 m to 26.5 m (31.0 ft to 87.0 ft) Identify: 4.8 m to 13.1 m (16.0 ft to 43.0 ft) |
| Audio | |
| Audio Input | Built-in microphone |
| Electrical | |
| Power Supply | 12 VDC ±10% or 24 VAC ±25% |
| Power Consumption | 12 VDC: 5.5W maximum 24 VAC: 6.8W maximum |
| Mechanical | |
| Housing | Turret housing |
| Material | Metal |
| Pan and Rotation | 0° to 360° |
| Tilt | 0° to 78° |
| Product Dimensions | 122.0 mm diameter × 107.6 mm 4.8 × 4.2 in |
| Net Weight | 0.7 kg (1.5 lb) |
| Gross Weight | 0.8 kg (1.8 lb) |
| Packaging Dimensions (L × W × H) | 148.0 × 139.0 × 137.0 mm 5.8 × 5.5 × 5.4 in |
| Environmental Conditions | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | Less than 95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Ingress Protection | IP67 |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA compliant |
| Compatible Accessories | |
| Junction Box | LUM-J01 Purchased separately |
| Wall Mount | LUM-W05 Purchased separately |
| Pole Mount | LUM-P02 and LUM-W05 Both items are required and purchased separately |
| Ceiling Mount | LUM-A02 and LUM-E01 Both items are required and purchased separately |
