Luminys - A3T-5LA2 - 5MP Dual-Light Analog Turret Camera
Product Overview

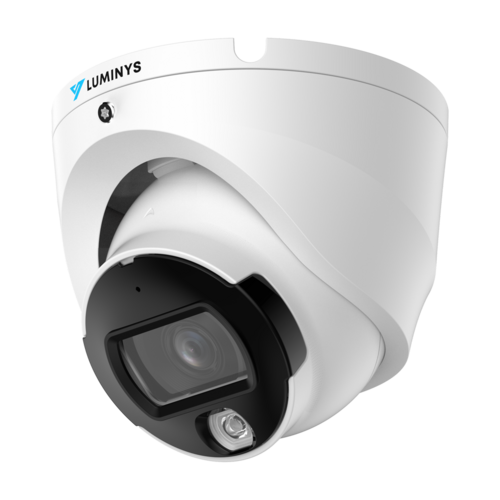

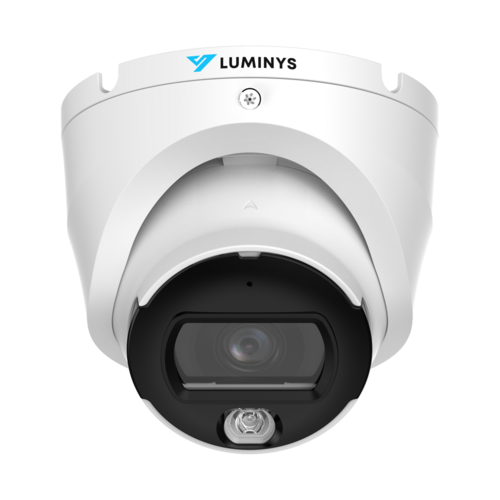

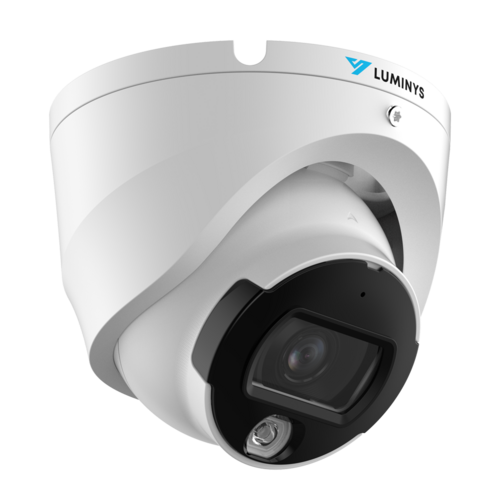

Luminys A3T-5LA2 is a 5 MP dual-illumination HD analog turret camera with a 2.8 mm fixed F2.0 lens and built-in microphone. It supports CVI, TVI, AHD, and CVBS video through a BNC connection, combining IR and white-light illumination with DWDR, 3D noise reduction, and IP67 protection for indoor and outdoor surveillance.
Key Configuration
Model: A3T-5LA2 | Camera Type: 5 MP HD analog turret | Sensor: 1/2.7-inch 5 MP CMOS | Resolution: Up to 2880 × 1620 | Lens: 2.8 mm fixed F2.0 | Video Output: BNC, CVI/TVI/AHD/CVBS | Illumination: IR and white light up to 20.1 m | Audio: Built-in microphone | Protection: IP67
Key Features
- · 5 MP CMOS sensor provides video up to 2880 × 1620 resolution
- · 2.8 mm fixed F2.0 lens provides a 105.5° horizontal field of view
- · Supports CVI, TVI, AHD, and CVBS video through a configurable BNC output
- · Dual illumination combines IR and white-light LEDs with illumination up to 20.1 m
- · Automatic, manual, or disabled illuminator control supports different installation requirements
- · DWDR, 3D noise reduction, BLC, and HLC improve image clarity in high-contrast scenes
- · Built-in microphone provides audio input for compatible recording systems
- · Supports multiple output resolutions from 5 MP and 4 MP to 1080p, 720p, 960H, D1, and CIF
- · 12 V DC power and 0°-360° pan/rotation with 0°-78° tilt simplify installation
- · IP67-rated metal housing operates from -40°C to +60°C and complies with FCC, IC, and NDAA requirements
Technical Context
The dual-illumination system can use infrared light for discreet night monitoring or white light for visible-color illumination, with either mode reaching up to 20.1 m. DWDR balances bright and dark areas, while 3D noise reduction helps suppress image noise in low-light scenes. The DIP-switch-configurable BNC output allows integration with CVI, TVI, AHD, or legacy CVBS DVR systems, with frame rate depending on the selected video standard and resolution.
Installation Notes
The camera measures Ø94.0 × 85.3 mm and weighs approximately 0.3 kg. It requires 12 V DC power and supports a 1.0 m close-focus range. Compatible junction-box, wall, pole, and ceiling mounting accessories are available separately and should be selected as a complete compatible combination.
| Technical Specifications | |
| Product Model | A3T-5LA2 |
| Product Series | Luminys Starter Series |
| Camera Type | 5MP dual-illumination HD analog turret camera |
| Video Standards | CVI, TVI, AHD, and CVBS |
| Image Sensor | 1/2.7-inch 5MP CMOS |
| Maximum Resolution | 2880 × 1620 |

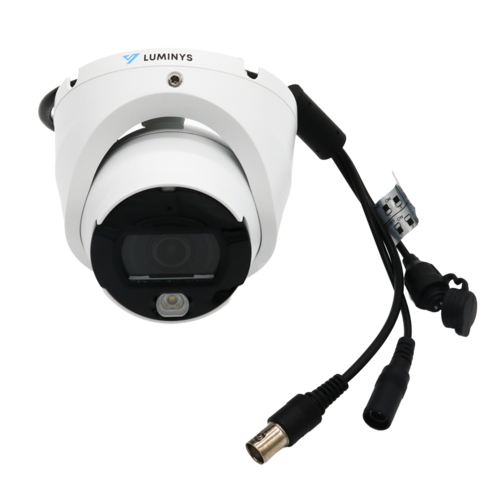

| Video Output | BNC output with CVI/TVI/AHD/CVBS selection via DIP switch |
| Stream Capability | 1 video stream |
| Lens Type | Fixed lens |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Field of View | Horizontal: 105.5° Vertical: 56.5° Diagonal: 125.3° |
| Close Focus Range | 1.0 m (3.3 ft) |
| Illumination | |
| Illuminators | 1 × multi-core light with IR and white-light LEDs |
| Illuminator Control | Automatic, manual, or off |
| IR Illumination Distance | Up to 20.1 m (66.0 ft) |
| White-Light Illumination Distance | Up to 20.1 m (66.0 ft) |
| Minimum Illumination | Color: 0.02 lux at F2.0 Black and white: 0.002 lux at F2.0 0 lux with IR light on |
| Video and Image Performance | |
| Maximum Frame Rate | CVI: 5MP at 25 fps, 5MP at 12.5 fps, 4MP at 25 fps, 1080p at 25 fps; NTSC 5MP at 25 fps, 5MP at 20 fps, 5MP at 10 fps, 4MP at 30 fps, 1080p at 30 fps AHD: 4MP at 25 fps; NTSC 4MP at 30 fps TVI: 5MP 16:9 at 20 fps; NTSC 5MP 16:9 at 20 fps CVBS: 960H; NTSC 960H at 30 fps |
| Supported Resolutions | 5MP, 4MP, 1080p, 720p, 960H, D1, and CIF |
| Day/Night Mode | Automatic ICR, color, or black and white |
| Light Balancing | Digital Wide Dynamic Range (DWDR) |
| Noise Reduction | 3D noise reduction |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Signal-to-Noise Ratio | More than 65 dB |
| Mirror and Rotation | Supported |
| DORI Distance | Detect: 66.1 m (217.0 ft) Observe: 26.5 m (87.0 ft) Recognize: 13.1 m (43.0 ft) Identify: 6.7 m (22.0 ft) |
| Audio | |
| Audio Input | Built-in microphone |
| Electrical | |
| Power Supply | 12 VDC |
| Power Consumption | 3.0W maximum with LED illumination enabled |
| Mechanical | |
| Housing | Turret housing |
| Material | Metal |
| Pan and Rotation | 0° to 360° |
| Tilt | 0° to 78° |
| Product Dimensions | 94.0 mm diameter × 85.3 mm 3.7 × 3.4 in |
| Net Weight | 0.3 kg (0.7 lb) |
| Gross Weight | 0.4 kg (0.9 lb) |
| Packaging Dimensions (L × W × H) | 122.0 × 119.0 × 111.0 mm 4.8 × 4.7 × 4.4 in |
| Environmental Conditions | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | Less than 95% RH, non-condensing |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Ingress Protection | IP67 |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA compliant |
| Compatible Accessories | |
| Junction Box | LUM-J05 Purchased separately |
| Wall Mount | LUM-W05 Purchased separately |
| Pole Mount | LUM-P02 and LUM-W05 Both items are required and purchased separately |
| Ceiling Mount | LUM-A02 and LUM-E01 Both items are required and purchased separately |
