Luminys - APC630 - Luminys APC630 AX3000 Wireless Dual-Band Wi-Fi 6 Access Point

Product Overview

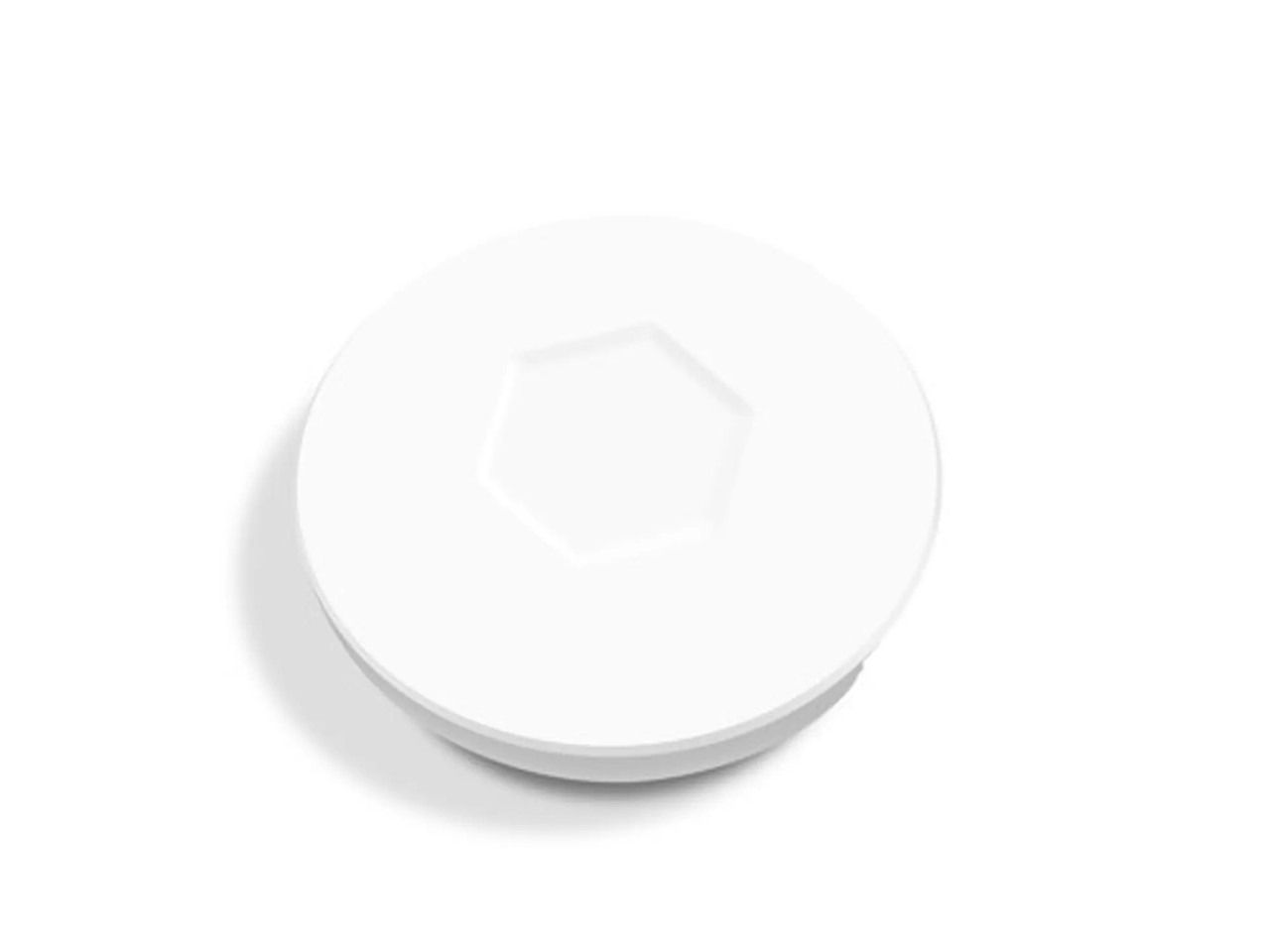

The Luminys APC630 is a Wi-Fi 6 dual-band ceiling access point designed for reliable wireless coverage in security, IoT, and connected device environments. It delivers up to 3000Mbps aggregate throughput, supports up to 128 concurrent devices, and can be powered through a single PoE cable or 12V DC input.

Key Configuration

Wi-Fi 6 dual-band ceiling access point; 3000Mbps aggregate throughput with 574Mbps on 2.4GHz and 2402Mbps on 5GHz; supports up to 128 concurrent devices across a 100-meter coverage area; powered by 802.3af PoE or 12V DC.

Key Features

• Supports Gateway, AP, and Repeater deployment modes
• Wi-Fi 6 technology includes MU-MIMO, OFDMA, and beamforming for stable multi-device performance
• VLAN tagging and multiple SSIDs allow security, IoT, and guest traffic segmentation
• WPA3-capable wireless security includes MAC filtering and client isolation
• Hardware watchdog and scheduled reboot help maintain reliable operation without site visits

Technical Context

The APC630 uses dual-band Wi-Fi 6 performance to support bandwidth-intensive applications such as IP camera streams, access control panels, and connected devices. Multiple SSIDs, VLAN support, and client isolation help separate network traffic by use case while maintaining centralized wireless access.

Installation Notes

The access point can be powered from a single 802.3af PoE cable, reducing the need for separate power wiring, or by 12V DC where available. A ceiling-mount bracket and installation hardware are included for clean ceiling-mounted deployment.
