Luminys - C-4MA - 4-Door Web Access Controller
Product Overview
The Luminys C-4MA is a four-door web access controller designed for scalable indoor security and credential management. It supports Bluetooth, remote, password, card/fob, and combination verification methods, with capacity for up to 100,000 users, 100,000 cards or fobs, 100,000 Bluetooth credentials, and 500,000 records. The controller supports ONVIF Profile C, OSDP, LumiViewer management, and web-based configuration.
Key Configuration
Model: C-4MA | Door Channels: 4 | Credentials/Records: 100,000 users, 100,000 cards or fobs, 100,000 Bluetooth credentials, 500,000 records | Connectivity: 10/100Mbps RJ-45, 9 RS-485 channels, 8 Wiegand inputs | Interoperability: ONVIF Profile C, OSDP, SDK, API
Key Features
- · Controls access for up to four doors
- · Supports Bluetooth, remote, password, card/fob, and combination verification
- · Stores up to 100,000 users and 100,000 card or fob credentials
- · Supports up to 100,000 Bluetooth credentials and 500,000 access records
- · Provides eight RS-485 ports for external card readers plus one extension channel
- · Supports up to eight Wiegand card reader inputs
- · Includes multi-person unlock, first-person unlock, interlock, and anti-passback functions
- · Supports real-time monitoring, network updates, trusted and restricted lists, and web configuration
- · Provides four exit-button inputs, four door-sensor inputs, and four lock-control outputs
- · Compatible with LumiViewer Desktop Client and Mobile App for centralized management
Technical Context
Multi-credential verification combines card, password, Bluetooth, remote verification, and combination methods to support layered access policies. ONVIF Profile C and OSDP provide interoperability with compatible security and reader equipment, while SDK and API support enable integration with third-party systems.
Installation Notes

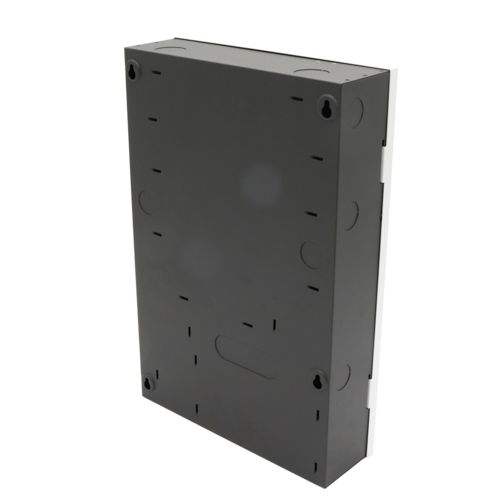

The C-4MA is intended for indoor surface mounting and operates from −30°C to 60°C with 5% to 95% non-condensing relative humidity. It measures 397.6 × 262.6 × 82.8 mm and weighs 2.9 kg net. The controller uses an AC-to-DC switching power supply with AC 100–240 V input and 12 VDC, 12.5 A output; a backup battery is supported but not included.
| Technical Specifications | |
| Product Model | C-4MA |
| Product Type | Four-door web access controller |
| Maximum Users | 100,000 |
| Maximum Card/Fob Credentials | 100,000 |
| Maximum Bluetooth Credentials | 100,000 Up to five Bluetooth credentials per user; supports up to 20,000 users when five credentials are assigned per user |
| Maximum Records | 500,000 |
| Access Control | |
| Verification Methods | Bluetooth, remote verification, password, card/fob, and combination authentication |
| External Card Readers | Supports up to 8 RS-485 or Wiegand card readers |
| Multi-Person Unlock | Supported |
| First-Person Unlock | Supported |
| Interlock | Supported |
| Anti-Passback | Supported |
| Restricted/Trusted Lists | Supported |
| Real-Time Monitoring | Supported |
| Holiday Periods | 128 periods |
| Schedule Periods | 128 periods |
| User and Card Types | General, VIP, guest, staff, blocklist, manager, and other |
| Interfaces | |
| RS-485 | 9 channels 8 ports for card readers and 1 port reserved for extension use |
| Wiegand | 8 input channels |
| Network Port | 1 × RJ-45 10/100 Mbps Ethernet port |
| Exit Buttons | 4 |
| Door Sensors | 4 |
| Lock Controls | 4 |
| Alarm and Security | |
| Alarm Inputs | 5 channels Channel 1: heat alarm connection Channels 2-3: event alarms with four states: normal, alarm, short circuit, and open circuit Channels 4-5: standard inputs |
| Alarm Expansion | Expandable to 8 inputs via an external alarm module |
| Alarm Outputs | 4 channels |
| Security Events | Tamper alarm, duress alarm, door sensor timeout, intrusion, and card verification threshold exceeded |
| Speaker | Built-in speaker |
| Network and Software | |
| Network Protocols | TCP, P2P, UDP, IPv4, and IPv6 |
| Interoperability | ONVIF Profile C and OSDP |
| Third-Party Compatibility | SDK and API |
| Management | Web-based configuration and network firmware updates |
| Compatible Platforms | LumiViewer desktop client for Windows and LumiViewer mobile app |
| Simultaneous Device Management | Up to 16 C-4MA units |
| Managed Door Channels | Up to 64 door channels |
| Electrical | |
| Power Supply | AC 100-240V, 4A input; DC 12V, 12.5A output Power cord not included |
| Backup Battery | Supported Battery not included |
| Power Consumption | Standby: ≤3W Working: varies according to connected external devices |
| Mechanical | |
| Housing Material | SGCC galvanized steel |
| Installation | Surface mount |
| Product Dimensions (L × W × H) | 397.6 × 262.6 × 82.8 mm 15.7 × 10.3 × 3.3 in |
| Net Weight | 2.9 kg (6.4 lb) |
| Gross Weight | 3.7 kg (8.1 lb) |
| Packaging Dimensions (L × W × H) | 473.0 × 353.0 × 162.0 mm 18.6 × 13.9 × 6.4 in |
| Environmental Conditions | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Operating Environment | Indoor |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA compliant |
| Package Contents | |
| Included Components | 4-door web access controller, 11 input/output blocks, set of keys, 4 zip ties, 8 screws, battery cable, quick start guide, and regulatory information |
