Luminys - K56-8D1A2 - 8 Channel LumiDeterrent 6 x 5MP Turret Cameras

Product Overview

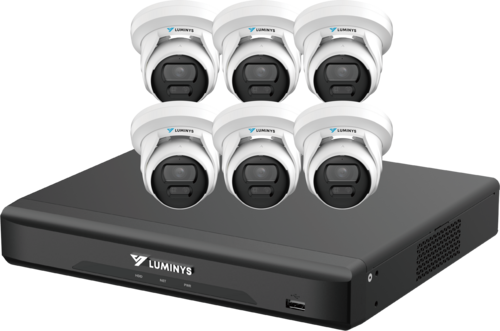

The Luminys K56-8D1A2 is a complete security kit combining an 8-channel 4K NVR with six 5MP turret cameras featuring 2.8mm fixed lenses. The plug-and-play recorder simplifies installation with eight built-in PoE ports, manages up to 160 Mbps recording bandwidth, and utilizes efficient H.265/H.264/MJPEG decoding. It provides standard HDMI and VGA outputs for local monitoring and comes with a 2TB hard drive pre-installed in its single SATA bay, which is expandable up to 20TB.

Key Configuration

• PoE Ports: 8 channels, 72W total budget (25.5W max per port).
• Storage: 1 SATA bay, 2TB pre-installed (supports up to 20TB).
• Bandwidth (AI On / Off): 80 Mbps / 160 Mbps incoming; 60 Mbps / 80 Mbps outgoing.
• Decoding (AI On): 1CH @12MP, 1CH @8MP, 3CH @4MP, or 7CH @1080p (all 30 fps).
• Decoding (AI Off): 1CH @12MP, 2CH @8MP, 4CH @4MP, or 8CH @1080p (all 30 fps).

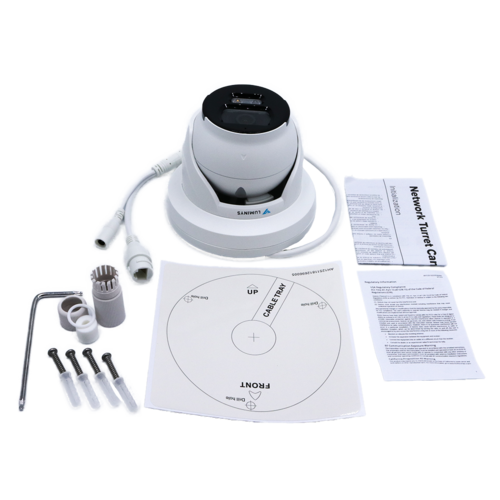

• Included Cameras: 6 × 5MP turrets, 2.8mm fixed lens, flashing lights, and speaker.

Key Features

Supporting video from 12MP down to standard quality, this recorder outputs local video through VGA and 4K HDMI ports with 1, 4, 8, or 9-channel simultaneous playback. It supports ONVIF and RTSP for easy network setup, and allows remote monitoring via LumiViewer desktop and mobile apps. To streamline footage review, the system features dual RCA audio connections and 6 channels of smart detection, letting you quickly search recordings specifically for people or vehicles. The matching cameras use this AI to eliminate false alarms, combining full-color video with flashing white lights and loud audio alerts to actively scare off intruders.

Technical Context

Designed in a compact Mini 1U chassis, this NDAA and FCC-compliant NVR includes a Gigabit WAN port, front and rear USB 2.0 ports, and eight built-in PoE ports. It operates on a 53V DC power supply with a low power consumption under 10W (excluding hard drives) while supporting core network protocols such as HTTPS, IPv6, RTSP, and DDNS.

Installation Notes

Measuring 260 × 233.2 × 43.7 mm (10.2" × 9.2" × 1.7") and weighing 2.1 kg (4.5 lb) without a hard drive, this compact unit comes with a 2TB HDD pre-installed and operates within -10°C to 55°C (14°F to 131°F) and 10–93% humidity. Its eight built-in PoE ports supply network and power to the matching 5MP, 2.8mm turret cameras within a 72W total power budget, ensuring seamless integration within the Luminys ecosystem. For local monitoring, the unit includes standard HDMI and VGA outputs.
