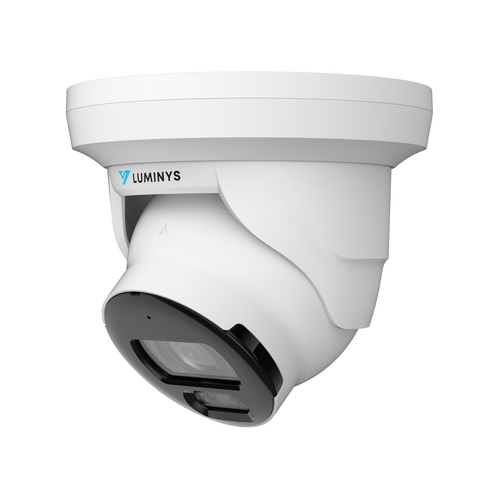

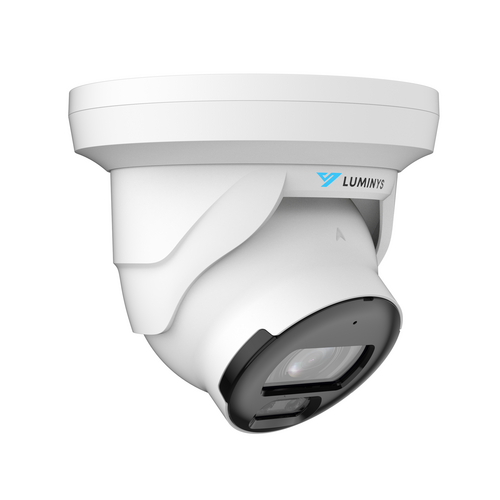

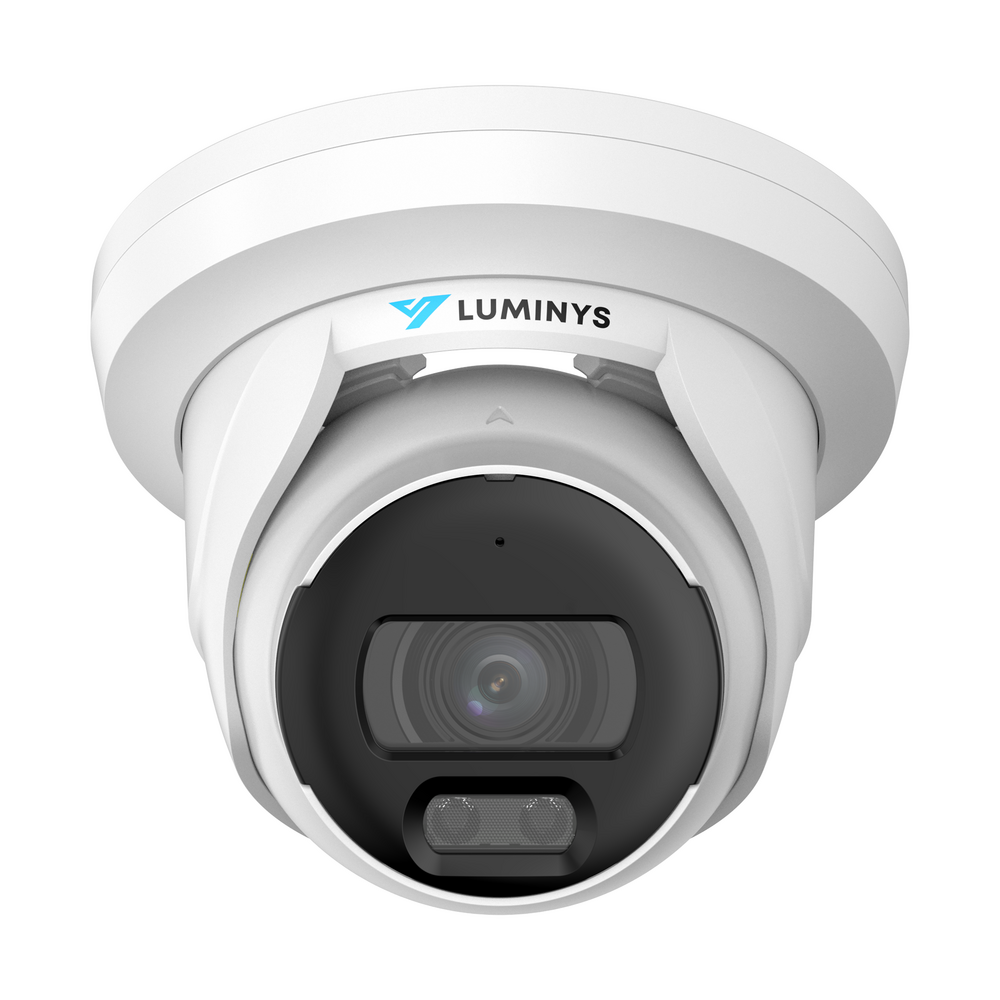

Luminys - N3T-4LA2 - 4MP Network LumiLuxSmart Turret Camera with 2.8 mm Lens, White-light LEDs and Dual-mode IR
Product Overview
Luminys N3T-4LA2 is a 4MP IP turret camera with dual-mode illumination IR and white-light LEDs, delivering 2688x1520 resolution at up to 20 fps. This turret camera features a fixed 2.8mm lens (F1.6) with 95° horizontal field of view, 120dB WDR, and 30.5m illumination distance. Smart Encoding: H.265+/H.264+ compression with two streams, IP67 rating, and starter-series design for small- to mid-sized applications.
Key Configuration
• Resolution: 4MP (2688 × 1520) at up to 20fps
• Lens: Fixed 2.8mm, F1.6 aperture, 95° H / 52° V / 114° D field of view
• Power: PoE (IEEE802.3af) or 12VDC; max consumption 7.9W (PoE) / 6.6W (12VDC)
• Storage: MicroSD card support up to 256GB
Key Features
4MP camera with a 1/2.9" CMOS sensor, 120dB WDR, and dual illumination IR and white light reaching up to 30.5m. Supports H.265+/H.264+ compression, intelligent motion detection with human/vehicle classification, line crossing and intrusion analytics, built-in microphone, and two video streams. Includes ONVIF support, IP67 weather protection, and flexible low-light operation with IR-only, white-light, or motion-activated dual illumination modes.
Technical Context
The N3 Starter Series is built for small to mid-sized deployments with essential features and simplified operation. Intelligent Motion Detection (iMD) enhances event accuracy through human and vehicle classification, while Smart Encoding H.265+/H.264+ helps reduce bandwidth and storage requirements.
Installation Notes

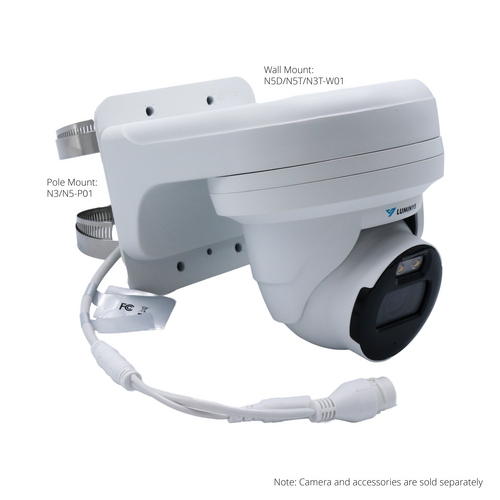

Mini turret camera with a metal housing, compact 122.0 × 111.8 mm design, and IP67 weatherproof protection. Supports 12VDC or PoE (IEEE802.3af) power, operates in temperatures from -40°C to 60°C, and offers flexible mounting with 360° pan/rotation and 78° tilt adjustment. Includes a built-in microphone and weighs 0.5 kg.
| Camera | |
| Luminys Series | N3 Series (Mainstream) |
| Image Sensor | 1/2.9-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Color: 0.005 Lux at F1.6 Black/White: 0.0005 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | One (1) White-Light LED, One (1) IR LED |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle | Pan/Rotation: 0° to 360° Tilt: 0° to 78° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.6 |
| Field of View | Horizontal: 95° Vertical: 52° Diagonal: 114° |
| Close Focus Range | 1.1 m (3.6 ft) |
| DORI Distance | Detect: 63.4 m (208.0 ft) Observe: : 25.1 m (82.4 ft) Recognize: 12.4 m (40.7 ft) Identify: 6.2 m (20.3 ft) |
| Video | |
| Video Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Standard Codec Supported | Stream Capability Two (2) |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 2688 x 1520 at 20 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 3,072 kbps to 6,144 kbps H.265: 1,280 kbps to 6,144 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° |
| Mirror Rotation | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone |
| Alarm | |
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Network | |
| Protocol | RJ-45 (10/100 Base-T) |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption - 12 VDC | • Maximum: 6.6 W • Normal: 2.4 W |
| Power Consumption - PoE | • Maximum: 7.9 W • Normal: 3.0 W |
| Construction | |
| Net Weight | 0.5 kg (1.2 lb) |
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Product Dimensions | 122.0 mm × 111.8 mm (4.8 in. × 4.4 in.) |
| Packaging Dimensions (L x W x H) | 148.0 mm x 139.0 mm x 137.0 mm (5.3 in. x 5.5 in. x 5.4 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
