Luminys - N5B-4LAV -4MP Network LumiLuxSmart Bullet Camera with 2.7-12 mm Vari-Focal Lens, White-light LEDs, and Dual-mode IR
Product Overview
Luminys N5B-4LAV is a 4MP IP bullet camera with LumiLuxSmart dual-mode illumination (IR and white-light LEDs), delivering 2688x1520 resolution at 30fps. This bullet camera features a motorized varifocal lens (2.7~12mm) with 114° to 48° horizontal field of view, 130dB WDR, and 50m illumination distance for both IR and white-light modes. H.265/H.264 compression with three streams, IP67/IK10 ratings, and LumiPower technology for extended PoE transmission.
Key Configuration
• Resolution: 4MP (2688 × 1520) at up to 30fps
• Lens: 2.7–12mm motorized varifocal, F1.2, 114°–48° FOV
• Power: PoE IEEE802.3at or 12VDC with LumiPower; PoE max 13.8W / normal 5.3W; 12VDC max 11.9W / normal 4.3W
• Storage: MicroSD slot supporting up to 512GB edge storage
Key Features
4MP camera with 1/1.8" CMOS sensor, 130dB WDR, and LumiLuxSmart dual IR/white-light illumination up to 50m. Supports H.265/H.264 compression with 3 streams, built-in audio I/O, and AI analytics including line crossing, intrusion, face detection, people counting, and heat maps. Features IP67/IK10 protection, ONVIF support, and LumiPower long-distance PoE up to 3,000 ft.
Technical Context
LumiLuxSmart offers IR-only, white-light, and motion-triggered dual illumination modes with adjustable brightness. Motorized 2.7–12mm lens supports remote zoom and focus. AI search identifies people using visual attributes across recordings. LumiPower extends PoE transmission up to 3,000 ft (914 m) with compatible equipment.
Installation Notes

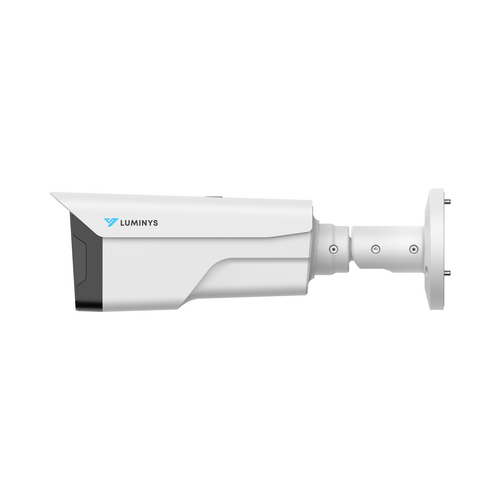

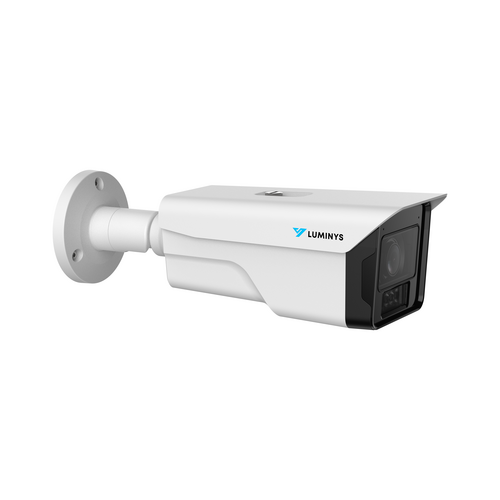

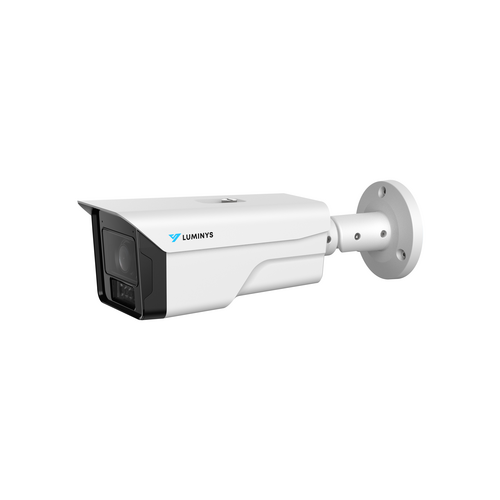

Bullet housing, metal construction with IP67/IP10 protection for weather and vandal resistance. Operates in -30°C to 60°C (storage -40°C to 60°C) with 12VDC, PoE IEEE802.3at, or LumiPower support. Supports full 360° pan/rotation and 90° tilt, with 1.8 m close focus range. Includes built-in microphone and speaker plus RCA audio input/output.
| Camera | |
|---|---|
| Luminys Series | N5 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | |
| Color | 0.0006 Lux at F1.2 |
| Black/White | 0.0003 Lux at F1.2 |
| With IR Light On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Four (4) Dual-Core (IR and White Light) LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance - IR | Up to 50.0 m (164.0 ft) |
| Maximum Illumination Distance - White Light | Up to 50.0 m (164.0 ft) |
| Electronic Shutter Speed | Automatic, Manual · 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Zoom | 0° to 360° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Automatic |
| Lens Type | Motorized Vari-Focal |
| Focal Length | 2.7 to 12 mm |
| Maximum Aperture | F1.2 |
| Field of View | Horizontal: 114° to 48° Vertical: 59° to 27° Diagonal: 143° to 56° |
| Close Focus Range | 1.8 m (5.7 ft) |
| DORI Distance | |
| Detect | 60.4 m to 128.7 m (198.1 ft to 425.5 ft) |
| Observe | 24.2 m to 51.5 m (79.4 ft to 169.0 ft) |
| Recognize | 12.1 m to 25.7 m (39.7 ft to 84.3 ft) |
| Identify | 6.0 m to 12.9 m (19.7 ft to 42.3 ft) |
| Video | |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 4MP (2688×1520), 3.6MP (2560×1440), 3MP (2048×1536), 2MP (2304×1296), 1080p (1920×1080), 1.3MP (1280×960), 720p (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288/352×240) |
| Maximum Frame Rate | Main Stream: 2688×1520 at 1–30 fps Sub Stream 1: D1 at 1–30 fps Sub Stream 2: 1080p at 1–30 fps |
| Video Bit Rate | H.265: 12 kbps to 11776 kbps H.264: 32 kbps to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (130 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2MP Resolution and Lower) |
| Mirroring | Supported |
| Defog | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| Heat Map | Supported |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiSearch+ | Supported When Used With LumiSearch+-Enabled NVRs |
| LumiAnalytics | Supported |
| Object Monitoring | Supported |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone and 1-Channel RCA Input Output: Built-in Speaker and 1-Channel RCA Output |
| Alarm | |
| Event Triggers | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, Parking Detection, Scene Changing, Audio Detection, Voltage Detection, External Alarm, Face Detection, iMD, Security Exception, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection |
| Interface Input | One (1) Channel (Max. 5 VDC, 5 mA) |
| Interface Output | One (1) Channel (Max. 12 VDC, 300 mA) |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, NAS, Micro SD Card (Max. 512 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3at), LumiPower |
| Power Consumption - 12 VDC | Maximum: 11.9 W · Normal: 4.3 W |
| Power Consumption - PoE | Maximum: 13.8 W · Normal: 5.3 W |
| Construction | |
| Net Weight | 1.1 kg (2.4 lb) |
| Gross Weight | 1.4 kg (3.0 lb) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Protection Ratings | IP67, IK10 |
| Dimensions | 290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, UL, IC |
| Compliance | NDAA |
