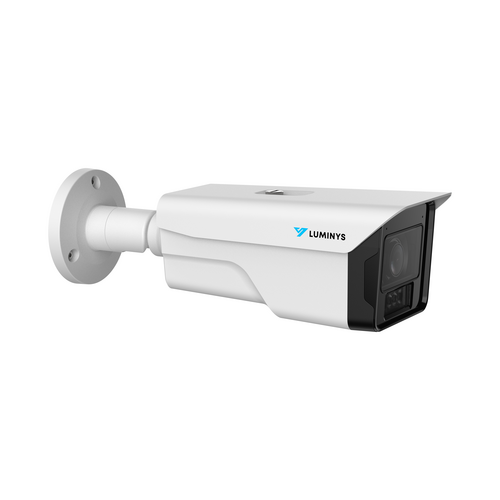

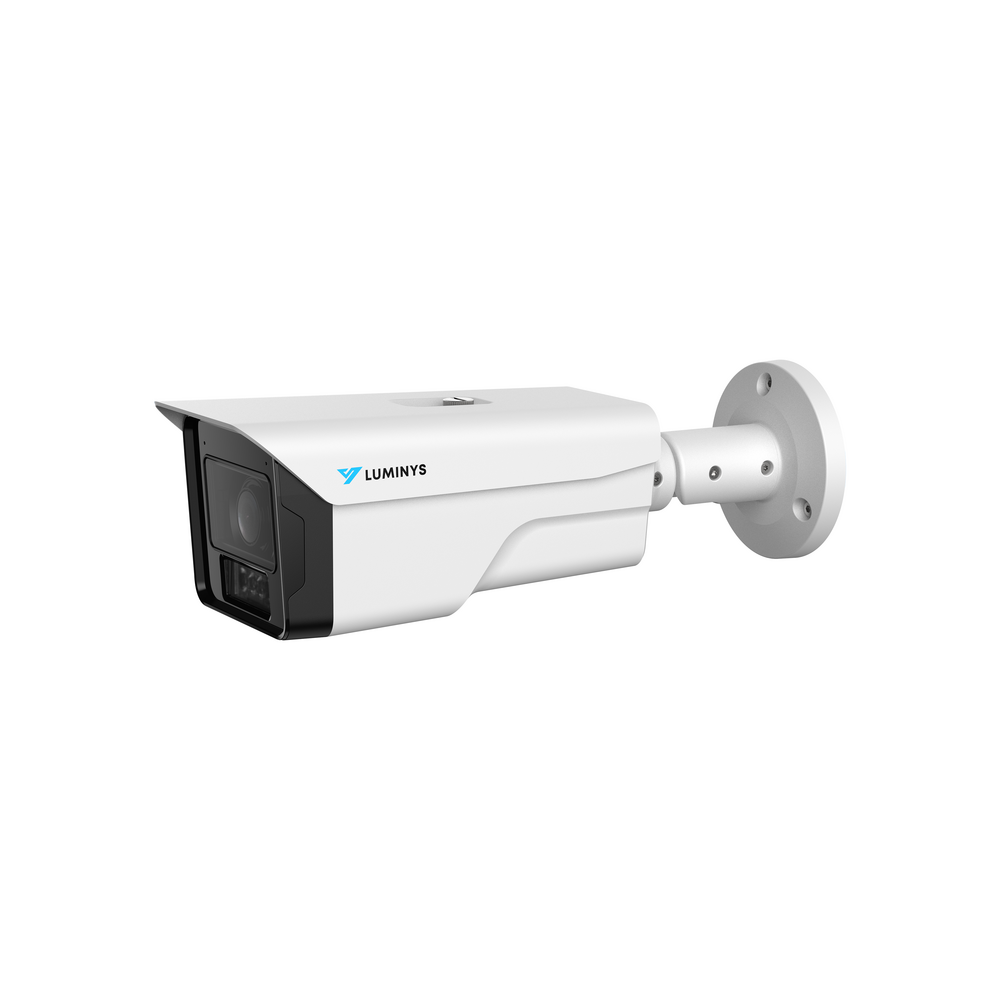

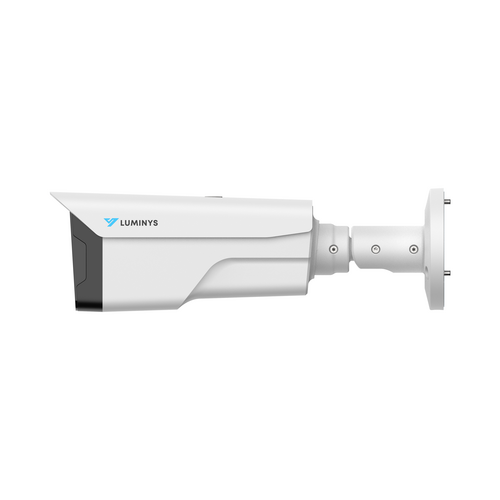

Luminys - N5B-8LAV - 8MP Network LumiLuxSmart Bullet Camera with 2.7-12 mm Vari-Focal Lens, IR and White-light LEDs
Product Overview
Luminys N5B-8LAV is an 8MP IP bullet camera with LumiLuxSmart dual-mode illumination IR and white-light LEDs, delivering 3840x2160 resolution at 30 fps. This bullet camera features a motorized varifocal lens 2.7~12mm, with 112° to 48° horizontal field of view, 120dB WDR, and 50m illumination distance for both IR and white-light modes. The H.265/H.264 compression with three streams, IP67/IK10 ratings, and LumiPower technology for extended PoE transmission.
Key Configuration
• Resolution: 8MP (3840 × 2160) at up to 30fps
• Lens: 2.7–12mm motorized varifocal lens, auto iris, F1.2 aperture, 112°–48° horizontal FOV
• Power: PoE+ (IEEE 802.3at) or 12VDC with LumiPower support; max consumption 14.7W (PoE) / 12.5W (12VDC)
• Storage: MicroSD card slot supporting up to 512GB edge storage
Key Features
1/1.8-in. 8MP CMOS sensor with ultra-low-light performance and LumiLuxSmart dual illumination, IR and white light up to 50m. Supports WDR 120dB, 3D NR, defog, ROI, privacy masking, and triple-stream H.265/H.264 encoding. Analytics include line crossing, intrusion, loitering, parking detection, face detection, people counting, heat mapping, object monitoring, and human/vehicle classification. Features built-in microphone and speaker, alarm I/O, LumiAnalytics, LumiSearch+, and LumiViewer support—certified IP67, IK10, NDAA compliant, with LumiPower long-range PoE support up to 3,000 ft.
Technical Context
The camera features a 2.7–12mm motorized varifocal lens with remote zoom and focus control. LumiLuxSmart offers flexible illumination behavior with selectable monitoring modes and adjustable white-light intensity. LumiSearch+ enables attribute-based target searches using reference images, while LumiAnalytics delivers AI-driven queue analysis and behavioral insights.
Installation Notes
Metal bullet supports 12VDC, PoE+ (IEEE802.3at), or LumiPower, with 360° pan/tilt rotation. Features a close focus distance of 0.2m and includes a built-in microphone and speaker, plus RCA audio input/output connections.
| Camera | |
|---|---|
| Luminys Series | N5 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | |
| Color | 0.0007 Lux at F1.2 |
| Black/White | 0.0004 Lux at F1.2 |
| With IR Light On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Four (4) Dual-Core (IR and White Light) LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance - IR | Up to 50.0 m (164.0 ft) |
| Maximum Illumination Distance - White Light | Up to 50.0 m (164.0 ft) |
| Electronic Shutter Speed | Automatic, Manual · 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Zoom | 0° to 360° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Automatic |
| Lens Type | Motorized Vari-Focal |
| Focal Length | 2.7 to 12 mm |
| Maximum Aperture | F1.2 |
| Field of View | Horizontal: 112° to 48° Vertical: 58° to 27° Diagonal: 137° to 55° |
| Close Focus Range | 0.2 m (0.5 ft) |
| DORI Distance | |
| Detect | 87.6 m to 186.6 m (287.4 ft to 612.2 ft) |
| Observe | 35.0 m to 74.6 m (114.8 ft to 244.8 ft) |
| Recognize | 17.5 m to 37.3 m (57.4 ft to 122.4 ft) |
| Identify | 8.8 m to 18.7 m (28.9 ft to 61.4 ft) |
| Video | |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 8MP (3840×2160), 6MP (3072×2048), 5MP (3072×1728/2592×1944), 4MP (2688×1520), 3.6MP (2560×1440), 3MP (2048×1536), 2MP (2304×1296), 1080p (1920×1080), 1.3MP (1280×960), 720p (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288/352×240) |
| Maximum Frame Rate | Main Stream: 3840×2160 at 1–30 fps Sub Stream 1: D1 at 1–30 fps Sub Stream 2: 1080p at 1–30 fps |
| Video Bit Rate | H.265: 12 kbps to 13568 kbps H.264: 32 kbps to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirroring | Supported |
| Defog | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| Heat Map | Supported |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiSearch+ | Supported When Used With LumiSearch+-Enabled NVRs |
| LumiAnalytics | Supported |
| Object Monitoring | Supported |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone and 1-channel RCA Input Output: Built-in Speaker and 1-channel RCA Output |
| Alarm | |
| Event Triggers | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, Parking Detection, Scene Changing, Audio Detection, Voltage Detection, External Alarm, Face Detection, iMD, Security Exception, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection |
| Interface Input | One (1) Channel (Max. 5 VDC, 5 mA) |
| Interface Output | One (1) Channel (Max. 12 VDC, 300 mA) |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, NAS, Micro SD Card (Max. 512 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3at), LumiPower |
| Power Consumption - 12 VDC | Maximum: 12.5 W · Normal: 5.0 W |
| Power Consumption - PoE | Maximum: 14.7 W · Normal: 5.7 W |
| Construction | |
| Net Weight | 1.1 kg (2.3 lb) |
| Gross Weight | 1.3 kg (2.9 lb) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Protection Ratings | IP67, IK10 |
| Dimensions | 290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, UL, IC |
| Compliance | NDAA |
