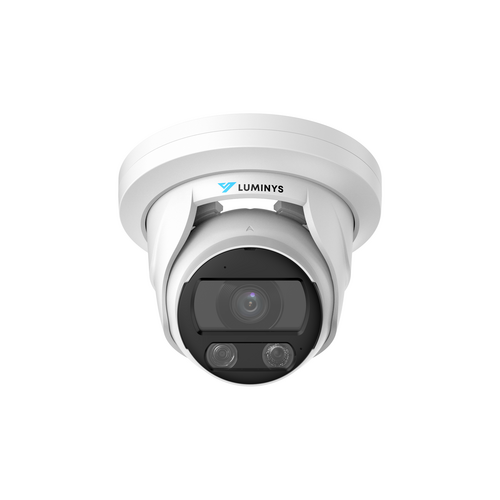

Luminys - N5T-4LA2 - 4MP Network LumiLuxSmart Turret Camera with 2.8 mm Lens, White-light LEDs and Dual-mode IR
Product Overview
Luminys N5T-4LA2 is a 4MP IP turret camera with LumiLuxSmart dual-mode illumination IR and white-light LEDs, delivering 2688x1520 resolution at 30 fps. This turret camera features a fixed 2.8mm lens F1.0 with 111° horizontal field of view, 130dB WDR, and 30m illumination distance. H.265/H.264 compression with three streams, IP67 rating, and LumiPower technology for extended PoE transmission.
Key Configuration
• Resolution: 4MP (2688 × 1520) at up to 30fps
• Lens: Fixed 2.8mm, F1.0 aperture, 111° H / 60° V / 135° D field of view
• Power: PoE+ (IEEE802.3at) or 12VDC with LumiPower support; max consumption 9.4W (PoE) / 8.0W (12VDC)
• Storage: MicroSD card support up to 512GB
Key Features
4MP AI IP Camera with a 1/1.8" progressive CMOS sensor, delivering ultra-low-light performance and up to 30m IR/white-light illumination. Features 130dB WDR, 3D noise reduction, H.265/H.264 compression, and triple-stream support. AI functions include line crossing, intrusion, loitering, parking detection, intelligent motion detection with human/vehicle classification, face detection, people counting, heat mapping, object monitoring, and LumiSearch+ compatibility. Includes built-in microphone and speaker, alarm I/O, ONVIF support, and IP67 weather protection.
Technical Context
LumiLuxSmart offers three low-light modes: IR-only, continuous white-light, or motion-activated dual illumination with adjustable brightness. LumiSearch+ enables appearance-based target searches using reference images (requires a compatible NVR). LumiAnalytics supports people counting, queue monitoring, heat maps, and object monitoring. Supports LumiPower extended PoE transmission up to 3,000 ft. DORI distances: detect 56.6m, observe 22.6m, recognize 11.3m, identify 5.7m. FCC, UL, IC, and NDAA compliant.
Installation Notes
Metal turret designed for indoor and outdoor installations. Supports 12VDC, PoE+ (IEEE802.3at). Operating temperature range: -40°C to 60°C. Adjustable mounting angles include 360° pan and 78° tilt. Features built-in microphone and speaker, plus RCA audio input/output. Dimensions: 142.0 × 130.1 mm; weight: 0.8 kg. Close focus distance: 1.7 m.
| Camera | |
|---|---|
| Luminys Series | N5 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | |
| Color | 0.0005 Lux |
| Black/White | 0.0003 Lux |
| With IR Light On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Two (2) Dual-Core (IR and White Light) LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance - IR | Up to 30.0 m (98.4 ft) |
| Maximum Illumination Distance - White Light | Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual · 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | |
| Pan/Zoom | 0° to 360° |
| Tilt | 0° to 78° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View | Horizontal: 111° Vertical: 60° Diagonal: 135° |
| Close Focus Range | 1.7 m (5.6 ft) |
| DORI Distance | |
| Detect | 56.6 m (185.7 ft) |
| Observe | 22.6 m (74.8 ft) |
| Recognize | 11.3 m (37.1 ft) |
| Identify | 5.7 m (18.7 ft) |
| Video | |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 4MP (2688×1520), 3.6MP (2560×1440), 3MP (2048×1536), 2MP (2304×1296), 1080p (1920×1080), 1.3MP (1280×960), 720p (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288/352×240) |
| Maximum Frame Rate | Main Stream: 2688×1520 at 1–30 fps Sub Stream 1: D1 at 1–30 fps Sub Stream 2: 1080p at 1–30 fps |
| Video Bit Rate | H.265: 12 kbps to 11776 kbps H.264: 32 kbps to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (130 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2MP Resolution and Lower) |
| Mirroring | Supported |
| Defog | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| Heat Map | Supported |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiSearch+ | Supported When Used With LumiSearch+-Enabled NVRs |
| LumiAnalytics | Supported |
| Object Monitoring | Supported |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone and 1-channel RCA Input Output: Built-in Speaker and 1-channel RCA Output |
| Alarm | |
| Event Triggers | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, Parking Detection, Scene Changing, Audio Detection, Voltage Detection, External Alarm, Face Detection, iMD, Security Exception, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection |
| Interface Input | One (1) Channel (Max. 5 VDC, 5 mA) |
| Interface Output | One (1) Channel (Max. 12 VDC, 300 mA) |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, NAS, Micro SD Card (Max. 512 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3at), LumiPower |
| Power Consumption - 12 VDC | Maximum: 8.0 W · Normal: 3.7 W |
| Power Consumption - PoE | Maximum: 9.4 W · Normal: 4.8 W |
| Construction | |
| Net Weight | 0.8 kg (1.7 lb) |
| Gross Weight | 1.0 kg (2.1 lb) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Protection Ratings | IP67 |
| Dimensions | 142.0 mm × 130.1 mm (5.6 in. × 5.1 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, UL, IC |
| Compliance | NDAA |
