Luminys - R68-32NA4 - R6 Extreme Series NVR, 8K 32 Channel, LumiSearch Supported, 4TB
Product Overview
Luminys R68-32NA4 is a 32-channel NVR with 32MP (8K) recording resolution, featuring 8 hot-swap SATA HDD bays with RAID support (0,1,5,6,10) and dual NIC ports (10/100/1000/2500 Mbps). This R6 Extreme Series NVR delivers up to 1400 Mbps recording bandwidth (AI Off) and supports H.265/H.264/Smart H.265+/Smart H.264+ compression. Decoding capability includes 2 channels at 32MP or 32 channels at 1080p (30fps), with recorder-based analytics including intelligent motion detection, VCA, face detection/recognition, LPR, video metadata, and LumiSearch.
Key Configuration
• Channels: 32 IP camera inputs, recording from 32MP down to CIF
• Recording bandwidth: up to 1400 Mbps (AI Off) / 700 Mbps (AI On); outgoing up to 1024 Mbps / 512 Mbps

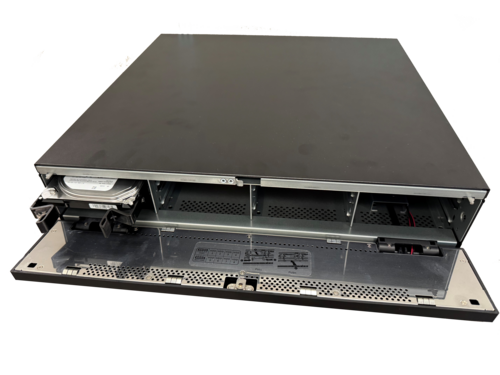

• Storage: 8 hot-swap SATA bays, up to 20TB per drive (160TB total), plus 1 eSATA port
• RAID: 0, 1, 5, 6, 10 supported
• Network: 2 × RJ-45 dual NIC (up to 2.5Gbps each)
Key Features
Video outputs: 4 HDMI (up to 8K on HDMI 3) and 2 VGA (1080p) with simultaneous and spot display, supporting up to 36-view layouts and 16-channel playback. Decoding supports up to 16CH at 1080p (AI on) or 32CH at 1080p (AI off), with higher-resolution single-channel options. Features include motion detection, VCA, face recognition (up to 300,000 images), LPR (up to 32CH), metadata, and LumiSearch. I/O includes 16 alarm inputs, 8 outputs, RCA audio with two-way support, USB, and RS-232/RS-485. Supports HTTP/HTTPS, RTSP, IPv4/IPv6, ONVIF, LumiViewer, NDAA, and FCC certification.
Technical Context
The R68-32NA4 is an enterprise NVR with recorder-based analytics for AI processing without requiring smart cameras. It supports dual NIC for network separation, hot-swap HDD bays for maintenance without shutdown, and RAID 5/6/10 for data protection and redundancy. High-density 2U design supports up to 160TB storage for long retention, with bandwidth optimization when analytics are active.
Installation Notes
2U rack or desktop NVR (442.0 × 457.3 × 88.0 mm, 7.2 kg without HDD) with operating range -10°C to 55°C and low power consumption under 18W. Supports up to 160TB total storage via 20TB-per-drive SATA bays with hot-swap design and RAID 0/1/5/6/10 options. Includes dual 2.5GbE NIC ports and eSATA expansion. Supports LPR (dedicated cameras), LumiSearch (camera-dependent), and face recognition with up to 40 libraries and 300,000 face images.
| Video | |
|---|---|
| Video Input | 32 Channels |
| Recording Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI (4CH) HDMI 1 and 2: 3840×2160, 1920×1080, 1280×1024 HDMI 3: 7680×4320, 3840×2160, 1920×1080, 1280×1024 HDMI 4: 1920×1080, 1280×1024 VGA (2CH) 1920×1080, 1280×1024 Simultaneous Mode HDMI1/HDMI2/HDMI3/HDMI4 Simultaneous Output VGA1/VGA2 Simultaneous Output HDMI1/VGA1 Simultaneous Output HDMI2/VGA2 Simultaneous Output Spot Output Mode HDMI1/HDMI2/HDMI3/HDMI4 Spot Output |
| Live View/Playback Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | Smart H.265+, Smart H.264+, H.265, H.264, MJPEG |
| Decoding Capability - AI On | • 1CH at 32MP (30 fps) • 2CH at 16MP/12MP (30 fps) • 4CH at 8MP (30 fps) • 8CH at 4MP (30 fps) • 16CH at 1080p (30 fps) |
| Decoding Capability - AI Off | • 2CH at 32MP (30 fps) • 4CH at 16MP (30 fps) • 5CH at 12MP (30 fps) • 8CH at 8MP (30 fps) • 16CH at 4MP (30 fps) • 32CH at 1080p (30 fps) |
| Live View Window Division | 1, 4, 8, 9, 15, 25, 36 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9, 15, 25, 36 Views |
| Synchronous Playback | 16 Channels |
| Supported Analytics | |
| Intelligent Motion Detection | Camera: 32CH (Max. 128 Targets per Second) NVR: 32CH |
| Video Content Analytics (VCA) | Camera: 32CH (Max. 64 Targets per Second) NVR: 32CH (Simultaneous Output) OR 24CH (Spot Video Output) |
| Face Detection | Camera: 32CH NVR: 8CH (Simultaneous Output) OR 5CH (Spot Video Output) |
| Face Recognition | Simultaneous Output • Face Captured by Camera: 32CH • Face Captured by NVR: 8CH Spot Video Output • Face Captured by Camera: 16CH • Face Captured by NVR: 5CH Up to 40 Face Picture Libraries (Max. 300,000 Pictures Total) |
| LumiSearch | 32CH (Must be Supported by Camera) |
| Video Metadata | Camera: 32CH NVR: 8CH |
| License Plate Recognition | (LPR Camera Required) 32CH (Max. 64 Targets per Second) One (1) Block List, One (1) Allow List Up to 20,000 Plate Numbers |

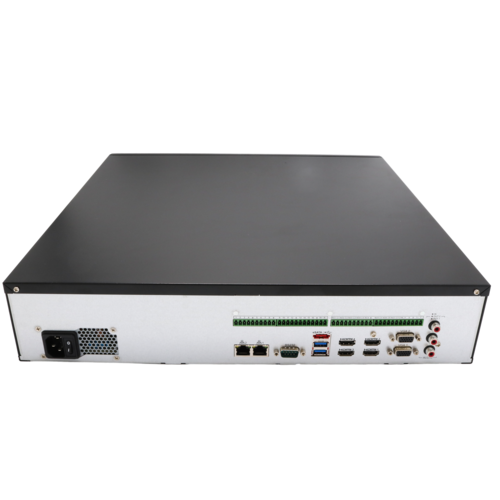

| Interface | |
| SATA | Eight (8) Ports |
| eSATA | One (1) Port |
| HDD | Up to 20 TB per HDD |
| RAID | 0, 1, 5, 6, 10 |
| Hot Swap | Supported |
| Network | Two (2) RJ-45 Self-Adaptive Ethernet (10/100/1000/2500 Mbps) |
| USB | Front Panel: Two (2) x USB 2.0 Rear Panel: Two (2) x USB 3.0 |
| Serial Port | One (1) x RS-232, 1 x RS-485 |
| Alarm | Input: 16 Channels Output: Eight (8) Channels |
| Audio | Input: One-Channel RCA Input Output: Two-Channel RCA Output Two-Way Audio Supported |
| Network | |
| Bandwidth - AI On | Incoming/Recording: 700 Mbps Outgoing: 512 Mbps |
| Bandwidth - AI Off | Incoming/Recording: 1400 Mbps Outgoing: 1024 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 18 W (HDD Not Included) |
| Construction | |
| Installation Method | Rack- or Desktop-Mount |
| Housing | 2U |
| Weight | 7.2 kg (15.8 lb) Without HDD |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) · 10% to 93% |
| Dimensions (W × D × H) | 442.0 mm × 457.3 mm × 88.0 mm (17.4 in. × 18.0 in. × 3.5 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
