Luminys - TW-71A - Lumiwatch Fixed Solar Solution With Integrated 4G Router
Product Overview

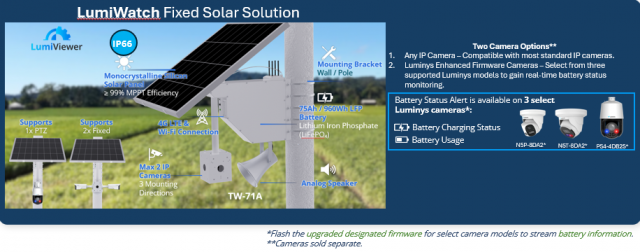

Luminys LumiWatch TW-71A is a permanently mounted solar surveillance platform designed for locations without convenient access to utility power. It supports up to two fixed cameras or one PTZ camera and combines a 120 W monocrystalline solar panel, 960 Wh LiFePO4 battery, industrial 4G/LTE router, and LumiViewer remote management.
Key Configuration
Model: TW-71A | Product Type: Fixed solar surveillance solution | Solar Panel: 120 W monocrystalline silicon | Battery: 12.8 V LiFePO4, 75 Ah / 960 Wh | Camera Support: Up to 2 fixed cameras or 1 PTZ camera | Connectivity: 4G LTE/3G/2G, dual SIM, Wi-Fi, 5 × 10/100 Mbps Ethernet | Management: LumiViewer | Protection: IP66
Key Features
- · 120 W monocrystalline solar panel provides off-grid power generation
- · 960 Wh lithium iron phosphate battery stores energy for surveillance equipment

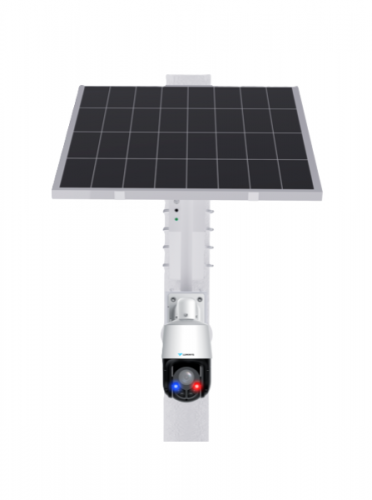

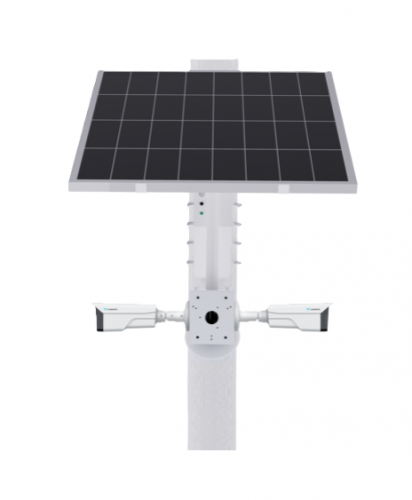

- · Supports up to two fixed cameras or one PTZ camera
- · Built-in MPPT controller provides tracking efficiency of at least 99%
- · Industrial 4G LTE/3G/2G router supports dual SIM link backup
- · Five configurable 10/100 Mbps Ethernet ports and 2.4 GHz 802.11 b/g/n Wi-Fi support network connectivity
- · Supports IPsec, L2TP, GRE, OpenVPN, WireGuard, SPI firewall, DoS protection, and ACL security functions
- · LumiViewer enables local and remote configuration, live viewing, playback, and event management
- · Supports pole or wall mounting with a 100-300 mm pole diameter range
- · IP66-rated galvanized-steel construction with FCC, IC, and NDAA compliance
Technical Context
The MPPT solar controller optimizes energy collection from the 120 W photovoltaic panel and charges the 12.8 V LiFePO4 battery system. The battery provides up to 48 hours of runtime with a 20 W load when solar charging and external power are unavailable, depending on operating conditions. The integrated router provides cellular and Wi-Fi connectivity, while VRRP hot standby, link detection, auto-recovery, and a hardware watchdog support network availability. LumiViewer centralizes live video, playback, configuration, and event response across Windows, macOS, Android, and iOS devices.
Installation Notes

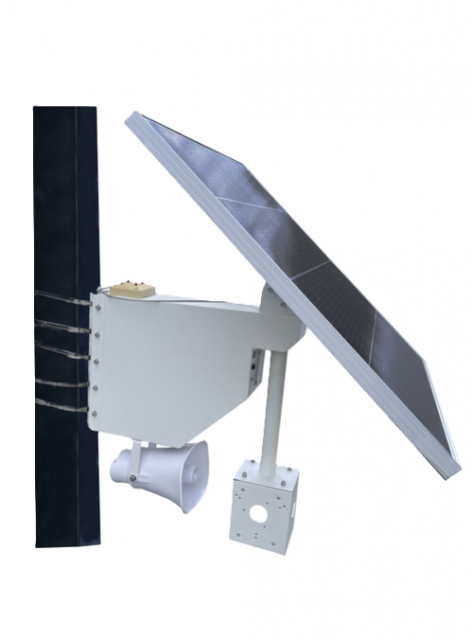

The system measures 859 × 901 × 340 mm in package dimensions and has a net weight of approximately 34.4 kg. It supports pole or wall installation using the supplied mounting hardware; compatible pole diameters are 100-300 mm. The photovoltaic panel operates from -20°C to +60°C, the battery charges from 0°C to +60°C and discharges from -20°C to +60°C, and the 4G router operates from -20°C to +70°C. Cameras are not included and must be supplied separately. An AC/DC adapter is required for external charging.
| Technical Specifications | |
| Product Model | TW-71A |
| Product Name | LumiWatch Fixed Solar Solution |
| System Type | Permanently mounted solar-powered surveillance platform |
| Camera Support | Up to 2 fixed cameras or 1 PTZ camera |
| Management Platform | LumiViewer remote device monitoring and management Supports Windows, macOS, Android, and Apple iOS |
| Photovoltaic System | |
| Panel Type | Monocrystalline silicon |
| Maximum PV Input Power | 120W |
| Panel Dimensions | 789 × 768 × 30 mm 31.1 × 30.2 × 1.2 in |
| Panel Weight | 6.6 kg (14.6 lb) |
| Solar Controller | MPPT controller |
| MPPT Tracking Efficiency | At least 99% |
| Controller Voltage Range | 11.1 to 14 VDC |
| Rated Charging Current | 10A |
| Battery | |
| Battery Type | Lithium iron phosphate (LiFePO4) |
| Rated Battery Voltage | 12.8V |
| Battery Capacity | 75Ah / 960Wh |
| Battery Runtime | Up to 48 hours with a 20W load Without solar charging or an external power source |
| Battery Operating Temperature | Charging: 0°C to 60°C (32°F to 140°F) Discharging: -20°C to 60°C (-4°F to 140°F) |
| Battery Features | Battery indicator and battery switch |
| 4G LTE Router | |
| Cellular Support | 4G LTE Cat 4/6, 3G, and 2G Dual SIM and link backup support |
| SIM Card Type | 2 × Nano SIM |
| Ethernet Ports | 5 × WAN/LAN-configurable 10/100 Mbps Ethernet ports |
| Wi-Fi | IEEE 802.11b/g/n, 2.4GHz Access point/client mode, up to 300 Mbps |
| VPN and Security | IPsec, L2TP, GRE, OpenVPN, WireGuard, SPI firewall, DoS protection, ACL, and VRRP hot standby |
| Reliability Features | Link detection, auto-recovery, and hardware watchdog |
| Router Power | 9 to 36 VDC |
| Router Power Consumption | 2.88W maximum |
| Supported Carriers | United States: AT&T, Verizon, T-Mobile, and others Canada: Rogers, Bell, Telus, and others |
| Electrical and Audio Interfaces | |
| External Charging Output | 24 VDC / 5A AC/DC adapter required |
| Power Output Connectors | 3 × 5.5 mm coaxial power plugs |
| Signal Outputs | 2 × RJ-45 |
| Audio Frequency Response | 400Hz to 5kHz |
| Loudspeaker Sensitivity | 105dB |
| Speaker Impedance | 8 ohms |
| Physical Characteristics | |
| Enclosure Material | Galvanized steel |
| Installation | Pole-mount or wall-mount |
| Supported Pole Diameter | 100 to 300 mm 3.9 to 11.8 in |
| Ingress Protection | IP66 |
| Battery Box Net Weight | 34.4 kg (75.8 lb) |
| Battery Box Gross Weight | 45.5 kg (100.3 lb) |
| Packaging Dimensions (L × W × H) | 859 × 901 × 340 mm 33.8 × 35.5 × 13.4 in |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 185°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Certifications and Compliance | |
| Certifications | FCC, IC, TUV, CQC, CE |
| Compliance | NDAA compliant |
| Package Contents | |
| Included Components | Photovoltaic cell module, battery box, angle adjustment bracket, pole-mount bracket, wall-mount bracket, surveillance mount bracket, cable cover, rear cover, loudspeaker, waterproof sleeves, Ethernet cable, metal clamps, wire rope, screws, hex wrenches, 4G antenna masts, Wi-Fi antenna masts, SIM ejector pin, user manual, and regulatory information |
