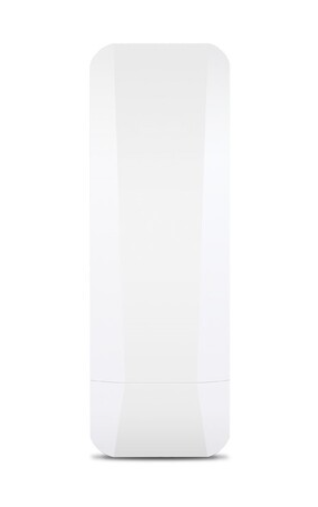

Luminys - WB3-900 - 5 GHz Outdoor Wireless Bridge (Up to 2 Miles)

Product Overview

The WB3-900 is a wireless bridge designed to connect remote buildings, parking structures, and detached facilities to a camera network without trenching or fiber installation. With up to 900 Mbps throughput over 5 GHz and a 2-mile line-of-sight range, it supports multi-camera backhaul from secondary structures while maintaining reliable video transmission.

Key Configuration

5 GHz wireless bridge with up to 900 Mbps throughput; supports up to 2-mile line-of-sight range; integrated 14 dBi directional panel antenna with one Gigabit Ethernet port and one Fast Ethernet port.

Key Features

• Bridges camera networks across buildings up to 2 miles apart without trenching
• Up to 900 Mbps throughput supports multi-camera video backhaul
• Point-to-point and point-to-multipoint modes connect up to 8 remote nodes from one base
• IP65-rated housing supports permanent outdoor installation
• Dual power input supports 24V PoE or 12V DC infrastructure

Technical Context

The WB3-900 supports both point-to-point and point-to-multipoint network designs, allowing a single base unit to link up to 8 remote nodes. Its integrated 14 dBi directional panel antenna simplifies installation by removing the need for a separately mounted and aligned external antenna.

Installation Notes

The IP65-rated enclosure is built for rain, dust, and outdoor temperature swings from -22°F to 131°F. Dual Ethernet ports provide flexibility at the remote end for connecting a switch or direct camera run, while 24V PoE or 12V DC power input allows adaptation to existing mount-point infrastructure.
