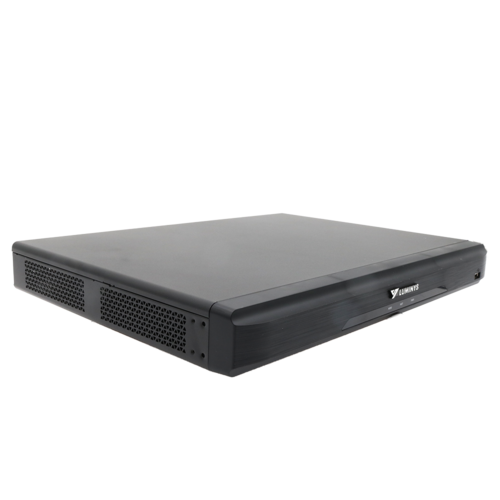

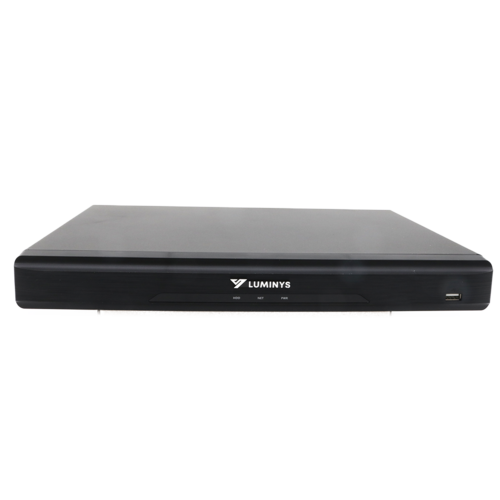

Product Overview
The Luminys X52-16KA is a 16-channel 4K hybrid digital video recorder designed for CVI, AHD, TVI, CVBS, and IP surveillance systems. It supports up to 8MP recording on analog channels, up to 32 IP channels, and recorder-based analytics including intelligent motion detection, video content analytics, face detection, and face recognition. The 1U rack- or desktop-mount recorder provides H.265/H.264 compression, dual SATA storage interfaces, and 2.5Gbps Ethernet connectivity.
Key Configuration
Model: X52-16KA | Channels: 16 analog or up to 32 IP channels | Resolution/Capacity: Up to 8MP, up to 16TB internal storage | Connectivity: 10/100/1000/2500Mbps RJ-45, HDMI, VGA, USB, RS-485 | Protection/Compliance: NDAA compliant, FCC certified
Key Features
- · Supports 16 analog channels or up to 32 IP channels
- · Records analog video at resolutions up to 8MP
- · Compatible with CVI, AHD, TVI, CVBS, and IP video inputs
- · Supports H.265, H.264, Smart H.265+, and Smart H.264+ compression
- · Provides intelligent motion detection on up to 16 analog channels
- · Video content analytics supports line crossing and intrusion rules on up to 8 analog channels
- · Face detection and face recognition are supported on up to 2 analog channels
- · Features two SATA ports with support for up to 16TB per HDD
- · Supports 4K HDMI output and simultaneous multi-channel playback of up to 16 channels
- · Includes alarm inputs and outputs, RCA audio interfaces, USB ports, and RS-485
Technical Context
The hybrid architecture allows existing HD-over-coax cameras and IP cameras to operate on one recorder. Recorder-based analytics create metadata for supported analog channels, enabling intelligent motion detection, line-crossing and intrusion monitoring, face detection, and face recognition. IP channels do not support recorder-based or built-in camera analytics; enabling IP expansion disables analytics on the analog channels.
Installation Notes
The X52-16KA can be installed in a standard rack or placed on a desktop. It uses a 1U housing and measures 372.0 × 289.4 × 43.7 mm, with a weight of 2.03 kg without HDDs. The recorder operates from 12 VDC, 5 A, at temperatures from −10°C to 55°C. Network integration supports HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, SNMP, DHCP, DNS, DDNS, ONVIF, and LumiViewer clients.

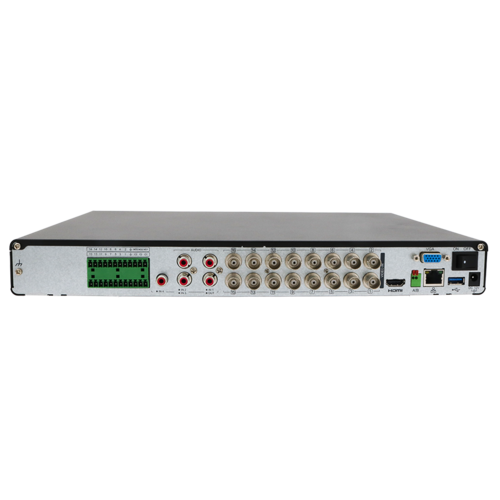

| Technical Specifications | |
| Product Model | X52-16KA |
| Product Type | 4K 16-channel hybrid digital video recorder (DVR) |
| Analog Channels | 16 channels |
| IP Channels | Up to 32 channels |
| Maximum Camera Resolution | Up to 8MP |
| Incoming/Recording Bandwidth | 128 Mbps |
| Video | |
| Supported Video Standards | CVI, AHD, TVI, CVBS, and IP |
| Video Compression | H.265, H.264, Smart H.265+, Smart H.264+, H.264H, and H.264B |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960H, D1, and CIF |
| Video Input | 16-channel BNC coaxial video input Up to 32 IP channels |
| Live View and Playback Resolutions | 8MP, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080p, 720p, 960H, D1, and CIF |
| Maximum Frame Rates | CVI: 4K at 30 fps, 6MP at 20 fps, 5MP at 25 fps, 4MP at 30 fps, 1080p at 30 fps, 720p at 30/60 fps AHD: 4K at 15 fps, 5MP at 20 fps, 4MP at 30 fps, 3MP at 30 fps, 1080p at 30 fps, 720p at 60 fps TVI: 3MP at 30 fps, 1080p at 30 fps, 720p at 60 fps |
| Decoding Formats | Smart H.265+, Smart H.264+, H.265, H.264, H.264H, and H.264B |
| Outgoing Bandwidth | 128 Mbps |
| Synchronous Playback | Up to 16 channels |
| Analytics | |
| Supported Analytics | Intelligent Motion Detection, Video Content Analytics, line crossing, intrusion detection, face detection, and face recognition |
| Intelligent Motion Detection | Up to 16 analog channels |
| Video Content Analytics | Up to 8 analog channels Line crossing and intrusion detection, up to 10 rules per channel |
| Face Detection | Up to 2 analog channels Up to 12 images at 1080p |
| Face Recognition | Up to 2 analog channels Up to 10 face picture libraries and 20,000 pictures total |
| Analytics Limitation | IP channels do not support recorder-based analytics or built-in camera analytics. Enabling one or more IP channels disables recorder-based analytics on analog channels. |
| Storage | |
| SATA Ports | 2 |
| Maximum Hard Drive Capacity | Up to 16TB per hard drive |
| Network and Connectivity | |
| Network Port | 1 × RJ-45 self-adaptive Ethernet port 10/100/1000/2500 Mbps |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, and DDNS |
| Interoperability | ONVIF and RTSP |
| Client Applications | LumiViewer and LumiViewer Mobile App |
| Audio and Alarm | |
| Audio Input | 4-channel RCA input |
| Audio Output | 1-channel RCA output |
| Alarm Input | 16 channels |
| Alarm Output | 3 channels |
| Video Outputs | |
| HDMI Output | 4K (3840 × 2160), 1920 × 1080, and 1280 × 1024 |
| VGA Output | 1920 × 1080 and 1280 × 1024 |
| Spot Output | HDMI: 1920 × 1080 and 1280 × 1024 VGA: 1920 × 1080 and 1280 × 1024 |
| Display Division | IP expansion enabled: 1, 4, 8, 9, 16, 25, and 32 windows IP expansion disabled: 1, 4, 8, 9, and 16 windows |
| Interfaces | |
| USB Ports | 1 × USB 2.0 front panel 1 × USB 3.0 rear panel |
| Serial Port | 1 × RS-485 |
| Electrical | |
| Power Supply | 12 VDC, 5A |
| Power Consumption | Less than 15W Hard drive not included |
| Mechanical | |
| Housing | 1U chassis |
| Installation | Rack-mount or desktop-mount |
| Product Dimensions (W × D × H) | 372.0 × 289.4 × 43.7 mm 14.6 × 11.4 × 1.7 in |
| Weight | 2.03 kg (4.5 lb) Without hard drives |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA compliant |
| Package Contents | |

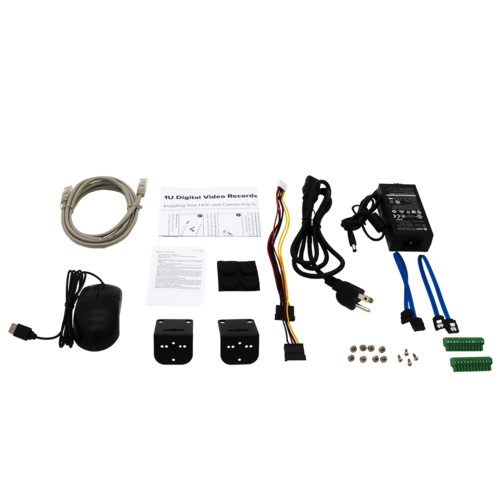

| Included Components | X5 Series DVR, power cable, power adapter, USB mouse, 2 × SATA data cables, SATA power cable, anti-slip pads, I/O terminal block, mounting brackets, CAT5e Ethernet cable, quick start guide, and regulatory information |
