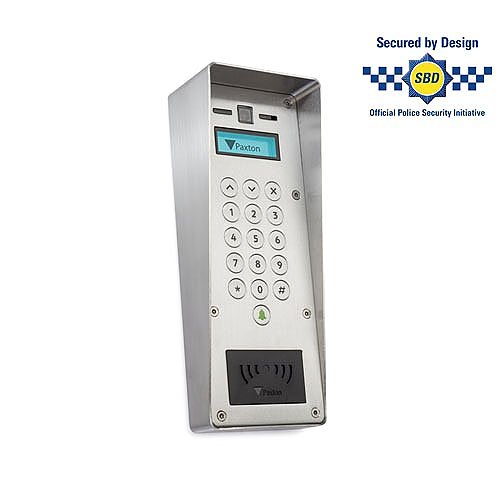

Paxton - 337-510-US - Entry VR Panel, Surface Mount, Rain Hood and Vandal Resistant Door Entry System for Standalone Net2 or Paxton10

Product Overview

The Paxton Entry Panel is a robust door entry panel integrating both door entry and access control functions, powered via PoE (IEEE 802.3af class 0) and communicating using IPv6 for plug-and-play installation. Features keypad and proximity token reader, back-lit LCD, two-way full-color camera audio system, and IP55/IK10 environmental ratings. Compatible with Paxton, EM4100/02, MIFARE (Classic, DESFire EV1, Plus, Ultralight, Mini), and HID Prox (activation required).

Key Configuration

• • Power: PoE IEEE 802.3af class 0
• • Protocol: IPv6 (plug-and-play)
• • Panels per system: Up to 100 panels
• • TCP/IP extension limit: 100m (328ft) per Ethernet segment
• • Cable type: CAT5
• • Ethernet bandwidth requirement: 1Mb/s multicast per panel during call
• • Operating temperature: -20°C to +50°C (-4°F to +122°F)

Key Features

PoE-powered device requiring no external power supply, supporting IPv6 plug-and-play network setup. It includes a keypad for PIN entry, a proximity reader, and two-way full-color audio with a back-lit LCD display and IDC door hardware interface. Built from marine-grade 316L stainless steel with IP55 moisture and IK10 vandal resistance, it supports Bluetooth (with Paxton10) in multiple modes, including token, touch-to-enter, and long-range up to 10m. Operates via Net2 or Paxton10 software and supports standalone use for up to 5,000 users.

Installation Notes

It operates within a temperature range of -20°C to +50°C and requires a PoE power source (IEEE 802.3af Class 0). Network setup uses IPv6-capable infrastructure with CAT5 Ethernet cabling, supporting up to 100 m per segment and requiring approximately 1 Mb/s multicast bandwidth during active communication. Bluetooth functionality is supported via Paxton10 software, with optional compatibility in Net2 environments.
