Paxton - 375-110-US - Keypad for Net2 or Switch2

Product Overview

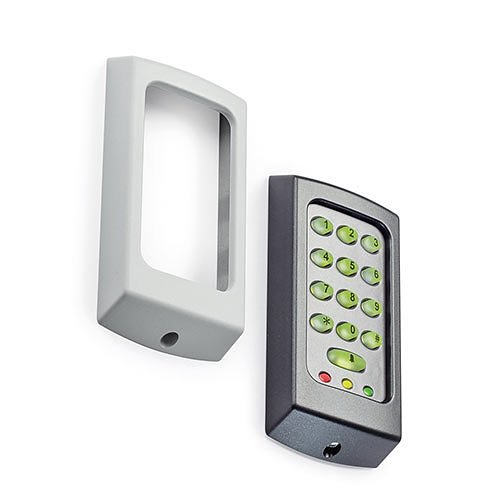

The Paxton KP50/KP75 series is an RFID/keypad combination reader offering contactless authentication or PIN/prox entry for Switch2 and Net2 systems. Available with black or white covers/bezels, with an optional screw connector version on the 75 Series for simpler cabling. Supports Paxton, EM, and HID Prox (activation required) tokens. IPX7 moisture resistance rating.

Key Configuration

• • Token compatibility: Paxton, EM, HID Prox (activation required)
• • Operating voltage: 10V-14V DC
• • Current consumption: 180mA
• • Supplied cable length: 5m (16ft)
• • Cable extension: ≤25m (82ft) with Belden 9538/5506FE or General Cable C0744A/E2008S
• • Operating temperature: -35°C to +66°C (-31°F to +151°F)

Key Features

RFID and keypad combination reader supporting both contactless credentials and PIN/proximity access modes, compatible with Switch2 and Net2 systems. It is available in black or white with optional colored bezels and includes a 75 Series screw connector variant for simplified installation. The device is hands-free compatible and features LED status indicators for access granted, PIN prompt, and denied states, with IPX7 moisture resistance and medium vandal resistance.

Installation Notes

Installation requires avoiding metal surfaces and placement near other readers to maintain optimal read range performance. Cable runs up to 25 m should use Belden 9538, Belden 5506FE, or equivalent, while HID Prox extensions up to 100 m should use Belden 9540, Belden 5306FE, or equivalent. The device operates in temperatures from -35°C to +66°C, with IPX7 moisture resistance and medium vandal resistance. It is UL 294-certified and must be wired according to the control unit label's instructions.
