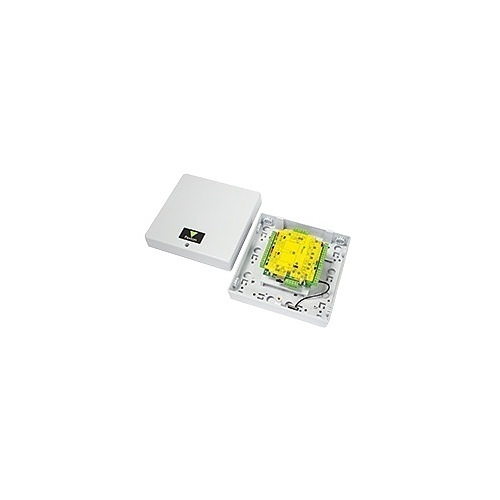

Paxton - 682-528-US - Net2 Plus 1-Door ACU in Plastic Housing
Product Overview
The Paxton Net2 Plus is a single-door networked access control unit featuring TCP/IP Ethernet connectivity with RJ45 plug, built-in TCP/IP converter, and RS485 daisy-chaining for additional Net2 units. Available as PCB only, in plastic housing, or in PoE+ powered metal/plastic cabinet (no separate mains backup required). Supports up to 50,000 users/tokens and stores 2,500+ events with 30-day data retention during power loss.
Key Configuration
- • Door support: 1 door per control unit
- • Reader ports: 2 per ACU; supports up to 4 readers/keypads total
- • Maximum users/tokens: 50,000
- • Stored events: 2,500+; data retention: 30 days
- • Time zones: 64; access levels: 250
- • Operating voltage: 12VDC ±20% or 24VDC ±20%; current consumption: 200mA @ 12VDC
- • Relay output: 24VDC max, 4A max; alarm output: 1A
Key Features
The Net2 Plus control unit is a networked access controller with built-in TCP/IP connectivity, eliminating the need for a separate converter, and supports RS485 daisy-chaining for additional units. It operates locally for access decisions while communicating with central software for configuration and event reporting, ensuring doors continue functioning even if network connection is lost.
Installation Notes
It supports Ethernet (RJ45), optional PoE+, Wiegand up to 50-bit, and multiple reader and input/output connections, with diagnostic LEDs and switchable end-of-line resistors for easier installation. The unit operates in a temperature range of 0°C to +55°C and is designed for indoor use with static IP configuration recommended.
| System | |
| Maximum total users/tokens | 50,000 |
| PIN Length | 4 - 8 |
| Number of codes | 50 |
| Code length | 4 - 8 |
| Number of time zones | 64 |
| Number of access levels | 250 |
| Stored events | 2500+ |
| Data retention during total power loss | 30 days |
| Handsfree compatible | Yes |
| Clock and data | Yes |
| 26-bit Wiegand | Yes (Max 50 bits) |
| Custom Wiegand | Yes (Max 50 bits) |
| Silent operation | Yes |
| Electrical | |
| Operating Voltage | 12VDC ±20% or 24VDC ±20% |
| Current consumption | 200mA @ 12VDC |
| Relay switchable voltage | 24V DC |
| Relay switchable current | 4A max |
| Alarm output current | 1A |
| Communication | |
| TCP/IP | Yes |
| Wireless | No |
| RS485 | Yes |
| Ethernet network speed | 100Mbit/s auto MDIX |
| Ethernet bandwidth requirement | 200 kbits/sec |
| DHCP support (fixed IP recommended) | Yes |
| Hardware | |
| Reader ports per ACU | 2 |
| Readers/Keypads per ACU | 4 |
| Total ACU reader port output current | 500mA |
| 3rd-party reader support | Yes |
| Reader cable type | Belden 9540 or General Cable equivalent C0745A |
| Network cable type | CAT5, Belden 8723, or General Cable equivalent C1352A |
| Features | |
| Input for the exit button | Yes |
| Input for door contact | Yes |
| Alarm/bell output | Yes |
| Environment | |
| Operating temperature | 0°C - +55°C / +32°F - +131°F |
| Moisture resistance | No |
| Vandal Resistance | Low |
| Plenum rated | Yes |
| Certifications | |
| Certifications | FCC Part 15, UL 294 |
