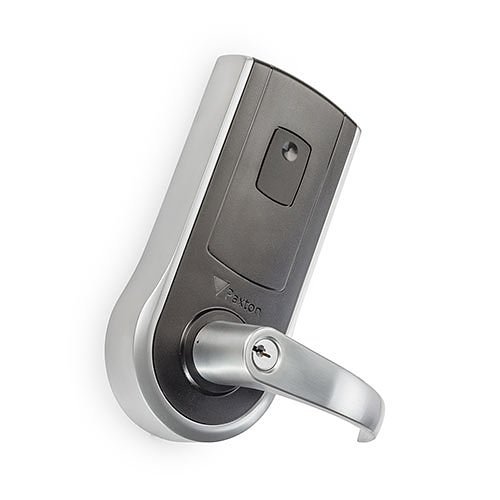

Paxton- 921-130-US - Net2 PaxLock Wireless Access Control, US Keyway, Galaxy Door Handle
Product Overview
The Paxton Net2 PaxLock is a secure wireless battery-operated access control unit that works with Net2 software, providing networked access control for easy management. Features live user tracking, alarm events (door forced, door held), key override, and offline operation with up to 10,000 users. Supports Paxton, EM, and HID Prox (activation required) tokens.
Key Configuration
- • Maximum total users/tokens: 50,000
- • Battery: 4 × AA 1.5V Alkaline; battery life: 20,000 operations (normal) / 30,000 operations (low power)
- • Wireless: 2.4GHz (IEEE 802.15.4) with AES 128-bit encryption
- • Recommended wireless devices per Net2Air Bridge: 10
- • Optimum wireless range: 15m (50ft)
- • Door open time: 1-60 seconds
Key Features
The Net2 PaxLock is a battery-powered wireless door lock that communicates via 2.4 GHz IEEE 802.15.4 with AES 128-bit encryption through a Net2Air Bridge (sold separately). Powered by 4 × AA alkaline batteries, it supports up to 10,000 cached users for offline operation, provides live user tracking and door alarms, and includes low-battery notifications, key override access, and rear-handle exit request functionality.
Installation Notes
The lock is compatible with cylindrical locksets using a 70 mm (2.75") backset and 70° rotation, supports a 50 mm (2") door contact detection range, and offers an optimal wireless range of up to 15 m (50 ft) line-of-sight. Certified to UL 294, CSA 22.2 No. 205, ANSI/UL 10C, and CAN/ULC S104 standards, it is designed for indoor use only, operates from 0°C to +55°C, and features low vandal resistance.
| System | |
| Maximum total users/tokens | 50,000 |
| Token compatibility | Paxton, EM, HID Prox (Activation required) |
| Handsfree compatible | No |
| Door open time | 1 sec - 60 secs |
| Silent operation | Yes |
| Electrical | |
| Battery type | 4 x AA 1.5V Alkaline |
| Battery life | Normal power mode: 20,000 operations Low power mode: 30,000 operations |
| Communication | |
| TCP/IP | No |
| Wireless | 2.4GHz (IEEE 802.15.4) |
| RS485 | No |
| Recommended wireless devices per Net2Air Bridge | 10 |
| Optimum wireless range | 15m/50ft |
| Encryption | AES 128bit |
| Features | |
| Door contact | 50mm/2" |
| Door widths supported | Yes |
| Low battery warning | Yes |
| Rear handle exit request | Yes |
| Flat battery jumpstart terminals | No |
| Lock Case Compatibility | |
| Backset | 70mm/2.75." |
| Rotation | 70° |
| Lockset | Cylindrical lockset |
| Escape function | Refer to Paxton support regarding compatibility |
| Environment | |
| Operating temperature | 0°C - +55°C / +32°F - +131°F |
| Moisture resistance | No |
| Vandal Resistance | Low |
| Fire resistance | ANSI/UL 10C compliant (20 min fire doors), CAN/ULC S104 compliant (20 min fire doors) |
| Certifications | |
| Certifications | UL294, CSA 22-2 No. 20512 |
