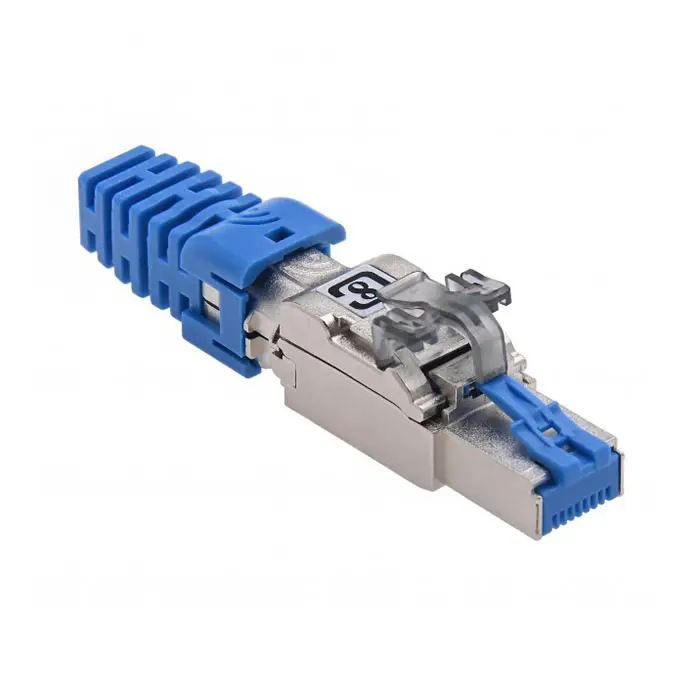

Platinum Tools - 106270 - Cat8 Toolless Shielded RJ45 Connector

Product Overview

The Platinum Tools 106270 is a Cat8 toolless shielded RJ45 connector designed to simplify field termination for professional network installations. It supports standard Ethernet cable categories from Cat5e through Cat8 and allows secure termination without a special crimp tool.

Key Configuration

Model: 106270 | Product Type: Cat8 Toolless Shielded RJ45 Connector | Connector Type: Shielded RJ45 | Cable Support: Cat8, Cat7, Cat6A, Cat6, Cat5e | Wire Support: Solid or Stranded 26 to 23 AWG | Cable OD: 0.197in to 0.390in | Quantity: 1 per Bag

Key Features

 · Toolless snap-close design simplifies RJ45 termination

 · No special crimp tool is required for installation

 · Shielded connector construction supports high-performance network cabling

 · Compatible with Cat8, Cat7, Cat6A, Cat6, and Cat5e cables

 · Supports solid or stranded conductors from 26 to 23 AWG

 · 50 micron gold plated contacts support reliable signal transmission

 · Plenum rated, UL compliant, and RoHS compliant

Technical Context

The 106270 connector is built for shielded Ethernet terminations where reliable contact quality and cable compatibility are important. Its supported insulation diameter range of 0.032in to 0.057in and cable outer diameter range of 0.197in to 0.390in make it suitable for a wide range of standard structured cabling applications.

Installation Notes

This connector is intended for jobsite termination without a dedicated crimping tool. Insert the prepared conductors according to the required wiring scheme, then snap the connector closed to complete the termination.
