Platinum Tools - HPH48AO-25 - J-Hook 3" Angled Overhang 45°, Size 48, White (25 Each)

Product Overview

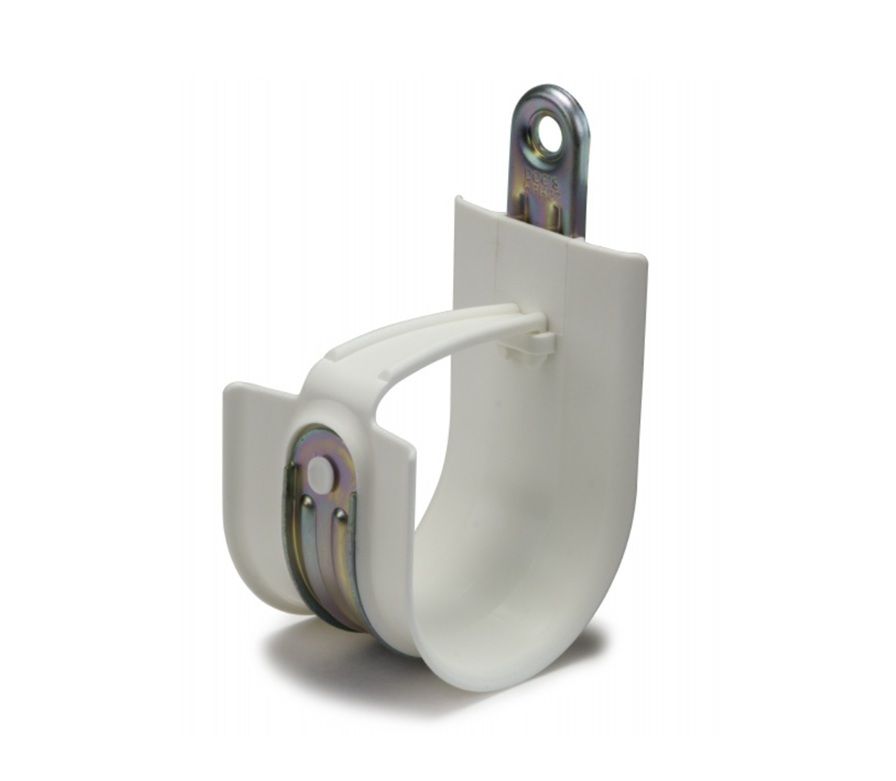

The Platinum Tools HPH48AO-25 is a high-performance 3-inch J-Hook designed for professional cable management and support installations. It features a 45-degree angled overhang design, white finish, and steel construction over-molded with polypropylene for smooth cable sliding and reliable cable protection.

Key Configuration

Model: HPH48AO-25 | Product Type: High Performance J-Hook | Size: 48 / 3 in | Angle: 45 Degree Angled Overhang | Color: White | Quantity: 25 Each | Static Load: Up to 50 lb

Key Features

 · 2-inch wide base support helps prevent cable kinks

 · Snap-Lock retainer firmly secures cables and can be reused

 · Over-molded polypropylene surface allows smooth cable movement

 · Helps eliminate the need for cable ties or Velcro ties

 · Lightweight construction supports faster handling and installation

 · Flush-mount capability supports a clean professional cable layout

 · cULus listed, plenum rated, RoHS compliant, and TIA compliant

 · Supports an ultimate static load of up to 50 lb

Technical Context

The HPH48AO-25 uses a steel J-Hook body with a polypropylene over-molded cable path to reduce friction and help protect cable jackets during installation. The 2-inch wide support base helps maintain cable bend integrity, while the reusable Snap-Lock retainer keeps cable bundles secured without disposable ties.

Installation Notes

This J-Hook is intended for cable support applications requiring a 3-inch white angled overhang hook with a 45-degree configuration. Its plenum rating supports use in air-handling spaces, and the 25-piece pack is suitable for multi-point cable pathway installations.
