Platinum Tools - HPH48AO-25BK - J-Hook 3" Angled Overhang 45°, Size 48, Black (25 Each)

Product Overview

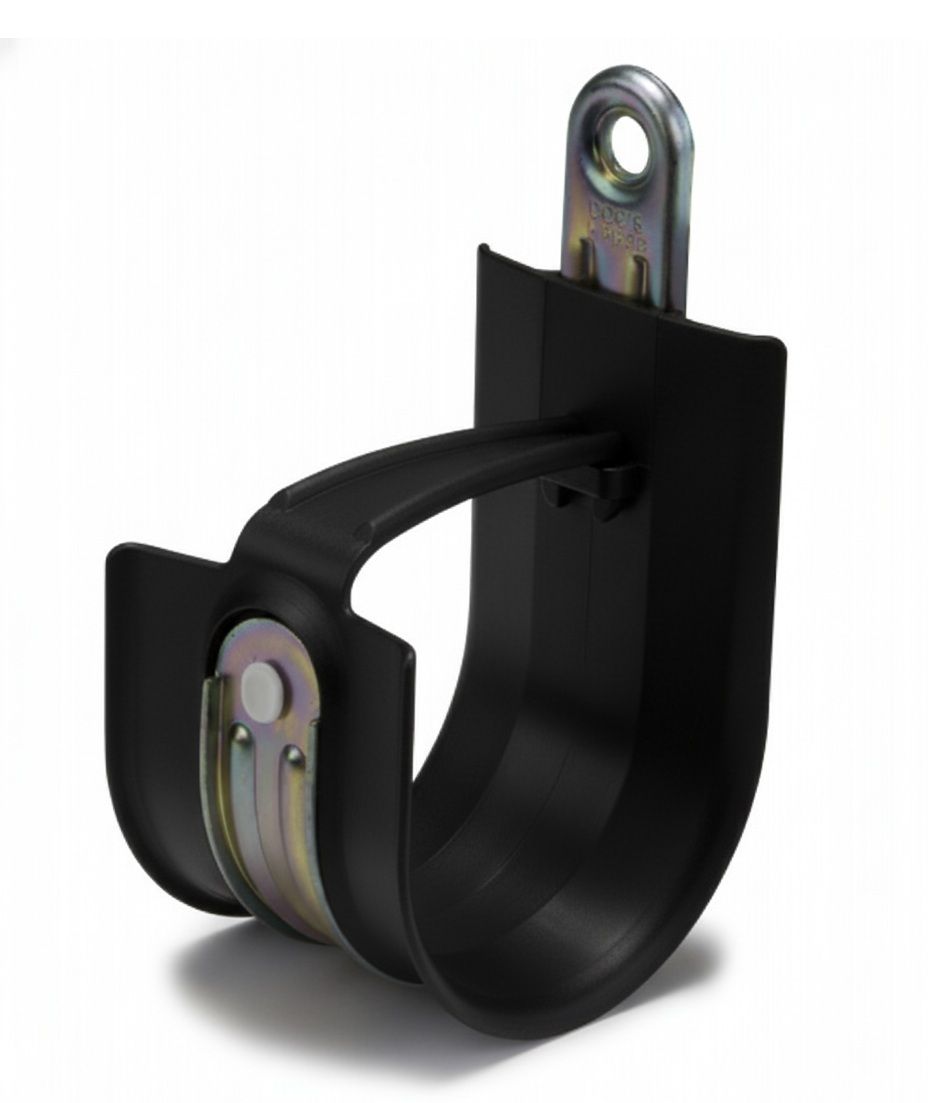

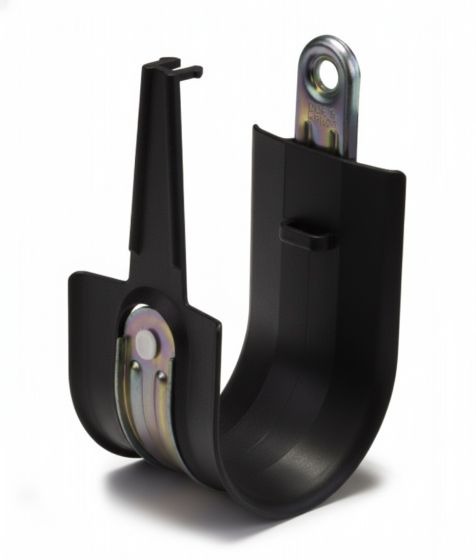

The Platinum Tools HPH48AO-25BK is a high-performance 3-inch J-Hook designed for professional cable management and pathway support. It features a 45-degree angled overhang design, black finish, and steel construction over-molded with polypropylene for smooth cable sliding and dependable cable protection.

Key Configuration

Model: HPH48AO-25BK | Product Type: High Performance J-Hook | Size: 48 / 3 in | Angle: 45 Degree Angled Overhang | Color: Black | Quantity: 25 Each | Static Load: Up to 50 lb

Key Features

 · 2-inch wide base support helps prevent cable kinks and improves stability

 · Snap-Lock retainer firmly secures cables and supports reuse

 · Over-molded polypropylene surface provides a smooth cable slide path

 · Helps eliminate the need for cable ties or Velcro ties

 · Lightweight construction supports easier handling and installation

 · Flush-mount design supports a clean and organized cable layout

 · cULus listed, plenum rated, RoHS compliant, and TIA compliant

 · Supports a static load capacity of up to 50 lb

Technical Context

The HPH48AO-25BK combines a steel J-Hook body with a polypropylene over-molded cable path to reduce friction and help protect cable jackets during installation. The reusable Snap-Lock retainer secures cable bundles without additional ties, while the wide base support helps maintain proper cable bend integrity.

Installation Notes

This J-Hook is intended for cable support applications requiring a 3-inch black angled overhang hook with a 45-degree configuration. Its plenum rating allows use in air-handling spaces, and the 25-piece package supports multi-point cable pathway installations.
