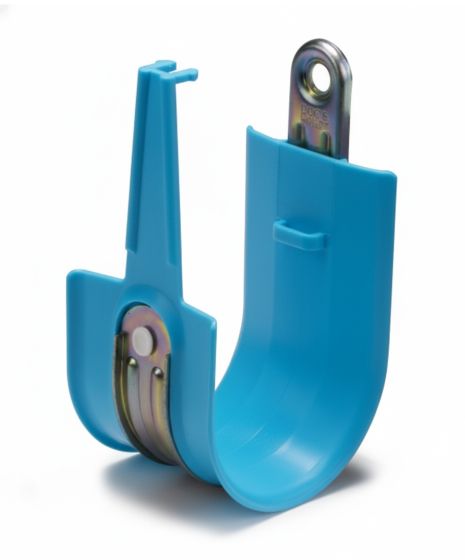

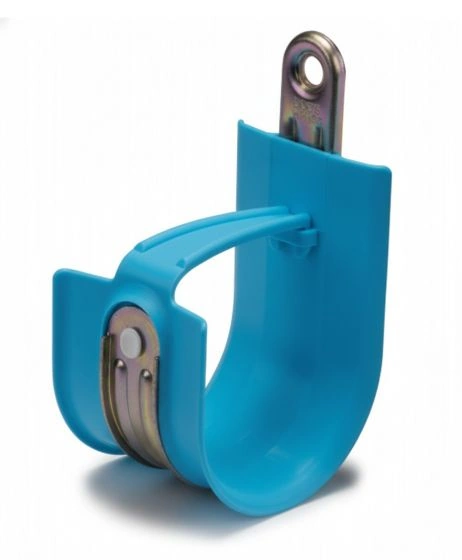

Platinum Tools - HPH48AO-25BL - J-Hook 3" Angled Overhang 45°, Size 48, Blue (25 Each)

Product Overview

The Platinum Tools HPH48AO-25BL is a high-performance 3-inch J-Hook designed for structured cable management and professional pathway support. It features a 45-degree angled overhang design, blue finish, and steel construction over-molded with polypropylene for smooth cable movement and dependable cable support.

Key Configuration

Model: HPH48AO-25BL | Product Type: High Performance J-Hook | Size: 48 / 3 in | Angle: 45 Degree Angled Overhang | Color: Blue | Quantity: 25 Each | Static Load: Up to 50 lb

Key Features

 · 2-inch wide base support helps prevent cable kinks

 · Snap-Lock retainer firmly secures cables without additional ties

 · Over-molded polypropylene surface provides smooth cable sliding

 · Helps eliminate the use of cable ties or Velcro ties

 · Lightweight design supports easier handling and faster installation

 · Flush-mount capability supports clean and organized cable routing

 · cULus listed, plenum rated, RoHS compliant, and TIA compliant

 · Supports an ultimate static load of up to 50 lb

Technical Context

The HPH48AO-25BL uses a steel J-Hook body with a polypropylene over-molded cable path to reduce cable friction during installation. The reusable Snap-Lock retainer helps keep cable bundles secured, while the wide base support helps maintain proper cable bend integrity and reduces the risk of kinking.

Installation Notes

This J-Hook is intended for cable support applications requiring a 3-inch blue angled overhang hook with a 45-degree configuration. Its plenum rating supports use in air-handling spaces, and the 25-piece pack is suitable for multi-point cable pathway installations.
