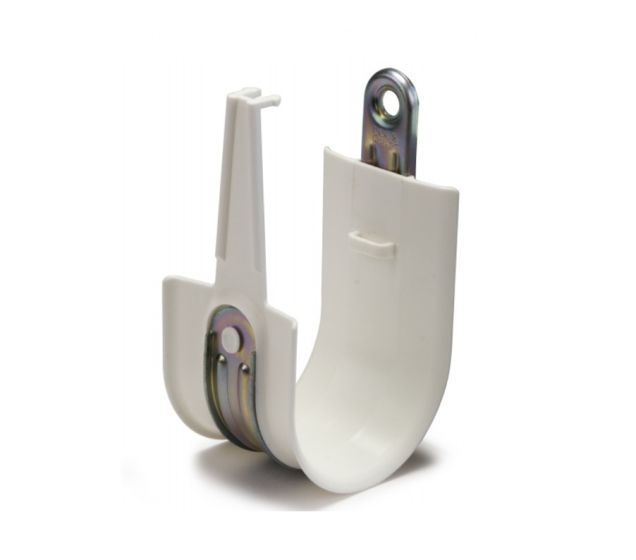

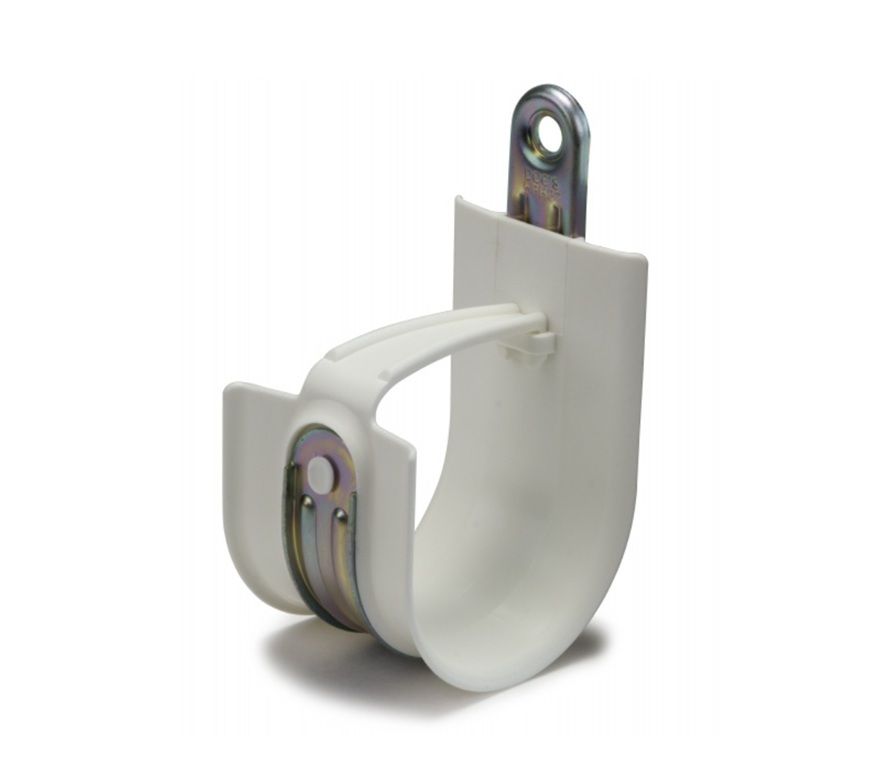

Platinum Tools - HPH64AC6-25 - J-Hook 4" 90 Degree Angle 3/8" Hole, Size 64, White (25 Each)

Part number:
Price:
Product NameHPH J-Hook 4" 90 Degree Angle 3/8" Hole
Model NumberHPH64AC6-25
MaterialSteel over-molded with polypropylene
ColorWhite
Base Width2 inches
Pack Size25 Each
Load Capacity50 lbs static load
CertificationscULus Listed, Plenum Rated, RoHS Compliant
Surface TypeSlick, burr free for easy cable slide
Installation TypeFlush mount
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Installation Guide
3.3mb

<div class="information-page" itemscope itemtype="https://schema.org/Product">

<section class="product-overview" itemprop="description">
<h3>Product Overview</h3>
<p>The Platinum Tools HPH64AC6-25 is a 4-inch High Performance J-Hook with a 90-degree angle and 3/8-inch hole, supplied in a white 25-piece pack. It is designed for professional cable management installations that require secure cable support, smooth routing, and reusable cable retention without separate ties.</p>
</section>

<p>&nbsp;</p>

<section class="key-configuration">
<h3>Key Configuration</h3>
<p>Model: HPH64AC6-25 | Product Type: 4-inch 90-degree angle J-Hook | Size: 64 | Mounting Hole: 3/8 inch | Color: White | Quantity: 25 each | Static Load: Up to 50 lb</p>
</section>

<p>&nbsp;</p>

<section class="key-features">
<h3>Key Features</h3>
<p>&nbsp;· Steel J-Hook over-molded with polypropylene for smooth cable slide</p>
<p>&nbsp;· Snap-Lock retainer securely holds cables and can be reused</p>
<p>&nbsp;· 2-inch wide base support helps prevent cable kinks</p>
<p>&nbsp;· Eliminates the need for cable ties or Velcro ties</p>
<p>&nbsp;· cULus listed, Plenum rated, RoHS compliant, and TIA compliant</p>
<p>&nbsp;· Supports up to 50 lb ultimate static load per J-Hook</p>
</section>

<p>&nbsp;</p>

<section class="technical-context">
<h3>Technical Context</h3>
<p>The HPH64AC6-25 provides a reliable support point for larger structured cable bundles while helping maintain cable bend integrity. Its over-molded polypropylene surface reduces friction during cable placement, and the reusable Snap-Lock retainer keeps cables organized without additional fastening hardware.</p>
</section>

<p>&nbsp;</p>

<section class="installation-notes">
<h3>Installation Notes</h3>
<p>This white 4-inch J-Hook is suitable for commercial structured cabling and plenum-space installations. The 90-degree angle design with a 3/8-inch mounting hole supports clean, stable installation in professional cable management layouts.</p>
</section>

</div>
