Platinum Tools - HPH64AO-25R - J-Hook 4" Angled Overhang 45°, Size 64, Red (25 Each)

Product Overview

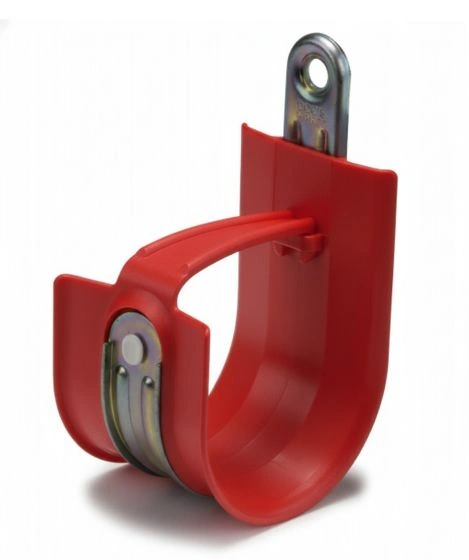

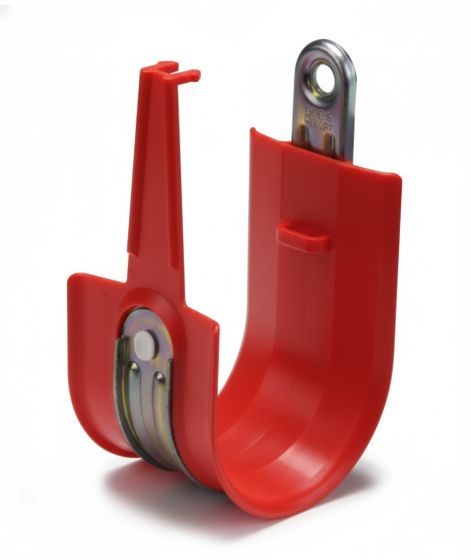

The Platinum Tools HPH64AO-25R is a 4-inch High Performance J-Hook with a 45-degree angled overhang design, supplied in a red 25-piece pack. It is designed for structured cable management installations that need secure cable support, smooth cable routing, and reusable cable retention without cable ties or Velcro ties.

Key Configuration

Model: HPH64AO-25R | Product Type: 4-inch angled overhang J-Hook | Angle: 45 degrees | Size: 64 | Color: Red | Quantity: 25 each | Static Load: Up to 50 lb | Compliance: cULus listed, Plenum rated, RoHS compliant, and TIA compliant

Key Features

 · Steel J-Hook over-molded with polypropylene for smooth cable slide

 · Snap-Lock retainer securely holds cables and can be reused

 · 2-inch wide base support helps prevent cable kinks

 · Eliminates the need for cable ties or Velcro ties

 · Slick, burr-free surface helps reduce cable wear during routing

 · cULus listed, Plenum rated, RoHS compliant, and TIA compliant

 · Supports up to 50 lb ultimate static load per J-Hook

Technical Context

The HPH64AO-25R provides a stable support point for cable bundles while helping preserve proper bend radius and cable jacket integrity. Its over-molded polypropylene surface allows cables to slide more easily during installation, while the reusable Snap-Lock retainer keeps cable runs organized and accessible for future changes.

Installation Notes

This J-Hook is suitable for commercial structured cabling, plenum-space installations, and cable routing applications where a 45-degree angled overhang helps guide cable paths cleanly. The red finish can support visual cable path identification in organized cable management environments.
