Platinum Tools - HPH64VO-25BL - J-Hook 4" Vertical Overhang 180°, Size 64, Blue (25 Each)

Product Overview

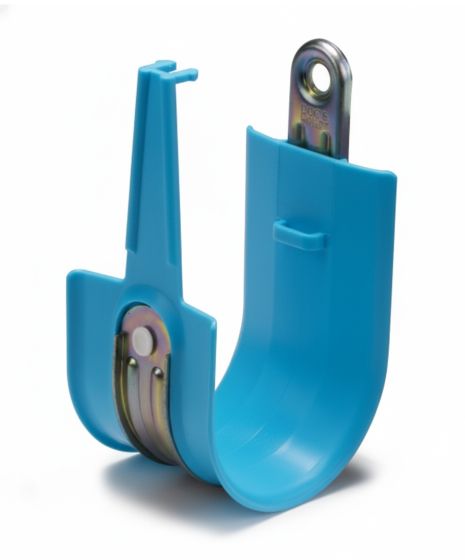

The Platinum Tools HPH64VO-25BL is a 4-inch High Performance J-Hook with a 180-degree vertical overhang design, supplied in a blue 25-piece pack. It is designed for structured cable management installations that require secure cable support, smooth cable routing, and reusable cable retention without cable ties or Velcro ties.

Key Configuration

Model: HPH64VO-25BL | Product Type: 4-inch vertical overhang J-Hook | Angle: 180 degrees | Size: 64 | Color: Blue | Quantity: 25 each | Static Load: Up to 50 lb | Compliance: cULus listed, Plenum rated, RoHS compliant, and TIA compliant

Key Features

 · Steel J-Hook over-molded with polypropylene for smooth cable slide

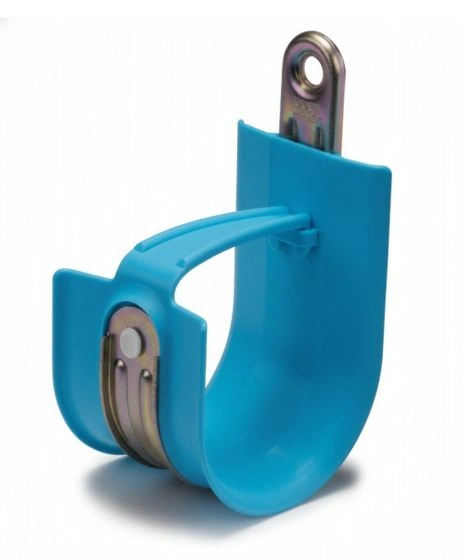

 · Snap-Lock retainer firmly secures cables and can be reused

 · 2-inch wide base support helps prevent cable kinks

 · Eliminates the need for cable ties or Velcro ties

 · Slick, burr-free surface supports smooth cable insertion

 · Lightweight construction supports easier handling and installation

 · cULus listed, Plenum rated, RoHS compliant, and TIA compliant

 · Supports up to 50 lb ultimate static load per J-Hook

Technical Context

The HPH64VO-25BL provides a stable support point for cable bundles while helping maintain proper cable routing and bend radius. Its polypropylene over-mold reduces friction during cable placement, and the reusable Snap-Lock retainer keeps cable runs organized while allowing easier access for future changes.

Installation Notes

This J-Hook is suitable for commercial structured cabling, plenum-space installations, and vertical overhang cable routing applications. The blue finish can support cable pathway identification, color-coded routing, or visually organized cable management layouts.
