Platinum Tools - PT-SCOPE-200 - Wireless Fiber Optic Inspection Scope

Product Overview

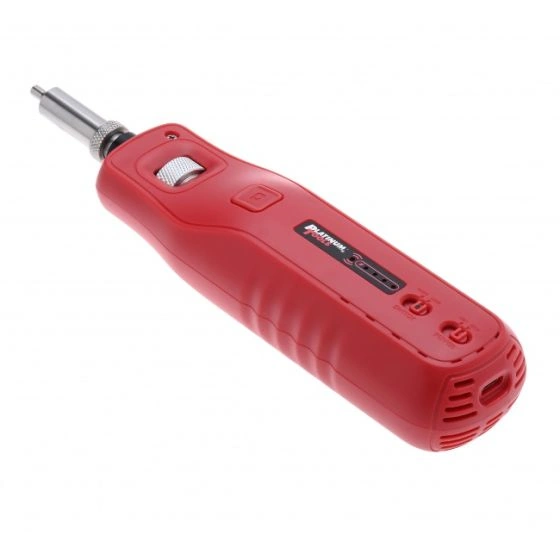

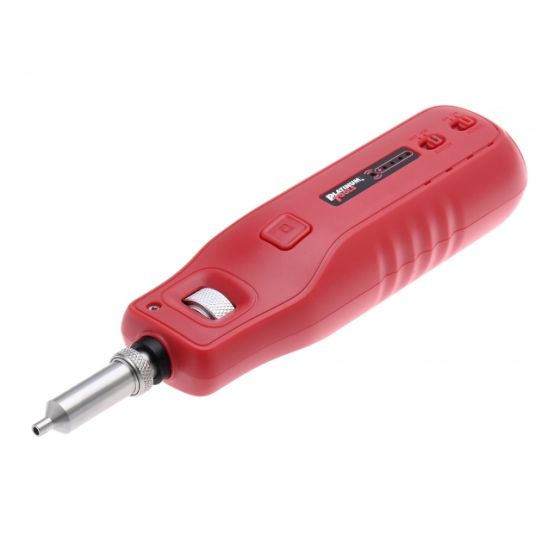

The Platinum Tools PT-SCOPE-200 is a wireless fiber optic inspection scope designed for checking connector endfaces against cleanliness standards. It provides 200X magnification to make dirt and debris easier to identify, with app-based pass/fail reporting and screenshot capture on iOS or Android devices.

Key Configuration

Model: PT-SCOPE-200 | Product Type: Wireless fiber optic inspection scope | Magnification: 200X | Reporting: Pass/fail results and screenshots via iOS or Android | Included Adapters: LC, SC/APC, and SC/UPC | Compatibility: PT-OTDR-100 | Country of Origin: China

Key Features

 · 200X magnification supports clear inspection of fiber connector endfaces

 · Helps identify dirt, debris, and contamination on fiber optic connectors

 · App-based testing zones provide pass/fail inspection results

 · Screenshots and reporting results are available on iOS or Android

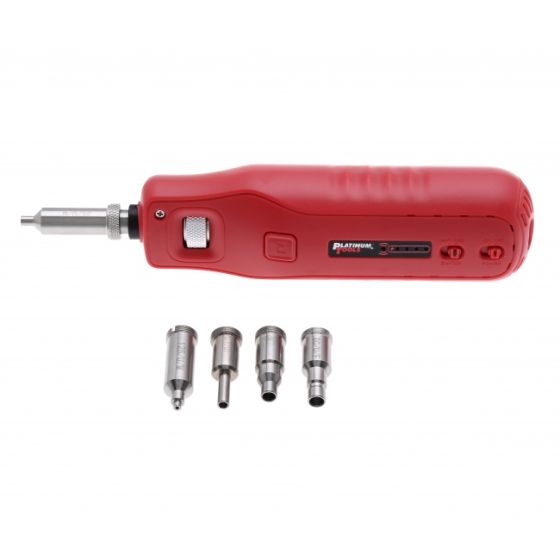

 · Includes adapters for LC, SC/APC, and SC/UPC connectors

 · Compatible with the Platinum Tools PT-OTDR-100

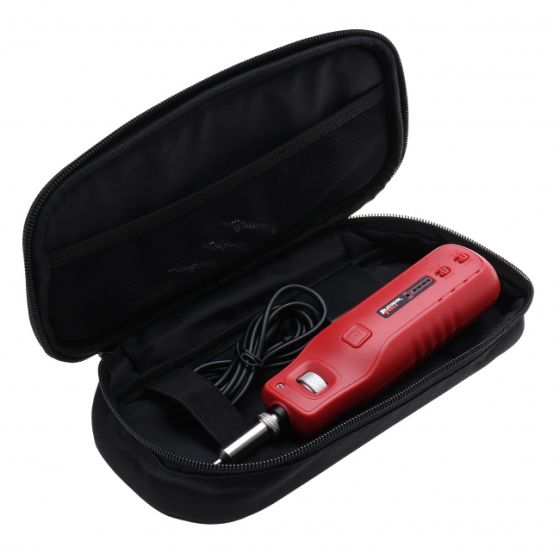

 · Slim carrying case supports easier transport and field use

Technical Context

Fiber connector endface cleanliness is critical for maintaining signal quality and preventing insertion loss or reflection issues. The PT-SCOPE-200 combines magnified visual inspection with pass/fail reporting zones, helping technicians document connector condition before installation, troubleshooting, or certification work.

Installation Notes

This inspection scope is intended for field and bench use during fiber optic installation, maintenance, and troubleshooting. The included LC, SC/APC, and SC/UPC adapters cover common connector types, while the slim carrying case helps keep the scope and accessories organized during transport.
