Planet - POE-173 - Single Port 10/100/1000Mbps Ultra POE Injector 60 Watts
Product Overview
The Planet POE-173 is a single-port Ultra PoE injector that delivers up to 60W of power and Gigabit data over a single Ethernet cable. Supporting 802.3bt-ready 4-pair power delivery, it is backward compatible with 802.3af and 802.3at PoE devices. The unit includes an internal power supply and supports power and data transmission over distances of up to 100 meters.
Key Configuration
• Interfaces: 1 × RJ-45 LAN (Data input), 1 × RJ-45 PoE (Data+Power output), 1 × AC socket (IEC-320 C6)
• PoE standard: Ultra PoE (802.3bt ready) over 4-pairs; backward compatible with 802.3af/at
• Power output: DC 50-57V, up to 60W via 4-pairs (End-Span + Mid-Span) / up to 30W via 2-pairs
• Data rate: 10/100/1000 Mbps
• Power input: 100-240V AC @ 50/60Hz, 1.5A max; output: 50-57V DC, 1.2A
• Dimensions: 115 × 62.5 × 31 mm; weight: 227g
Key Features
Delivers up to 60W Ultra PoE for high-power devices like PTZ cameras and digital signage. Features a compact plug-and-play design with an internal power supply and LED status indicators. Supports up to 100m transmission over Cat5/5e/6 cabling and is TAA compliant with FCC Class B and CE certifications.
Technical Context
The POE-173 provides up to 60W Ultra PoE using 4-pair UTP power across both data and spare pairs via dual PSE controllers. It is compatible with 802.3af/at devices and works with the POE-171S splitter for 12V/19V/24V DC output conversion. The unit includes an internal power supply and supports up to 100 m transmission distance..
Installation Notes
Compact unit (115 × 62.5 × 31 mm, 227 g) designed for desktop or rack placement. It operates from 100–240V AC (50/60Hz, 1.5A max) using an IEC-320 C6 power input and works in environments from 0°C to 50°C with 5–95% non-condensing humidity. Setup is simple: connect the LAN port to a switch/router and the PoE output to the device, or use a POE-171S splitter for non-PoE equipment requiring DC power.
| Hardware Specifications | |

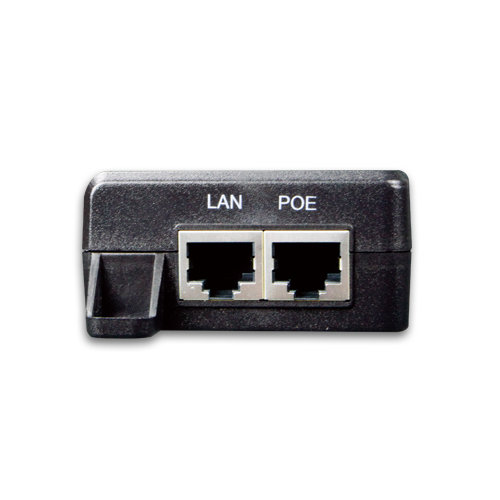

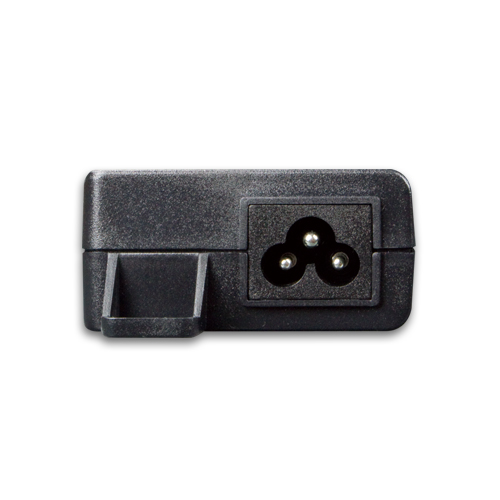

| Interface | LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-320 C6 |
| Network Cable | Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |

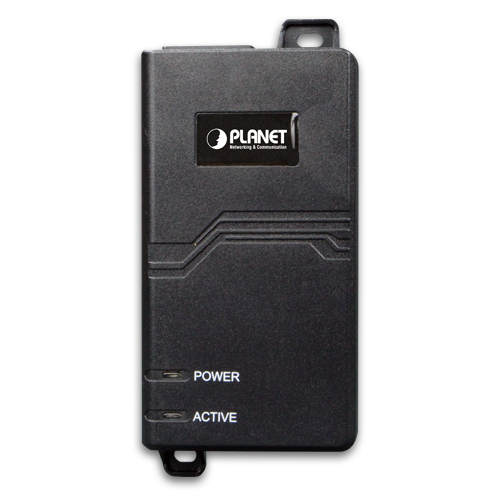

| LED Indicator | System: Power x 1 (Green) PoE Port: Active, PoE ready / In Use x 1 (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 227g |
| Unit Output Voltage | DC 50-57V, 1.2A |
| Power Requirements | 100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption | 60 watts max. |
| Power over Ethernet | |
| PoE Standard | Ultra PoE over 4-pairs UTP, IEEE 802.3at High Power over Ethernet End-Span / Mid-Span PSE |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1 End-Span: 1/2(+), 3/6(-) Pair 2 Mid-Span: 4/5(+), 7/8(-) |
| PoE Power Output | DC 50-57V/60-watt PoE via 4-pairs DC 50V-57V/30-watt PoE via 2-pairs |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
