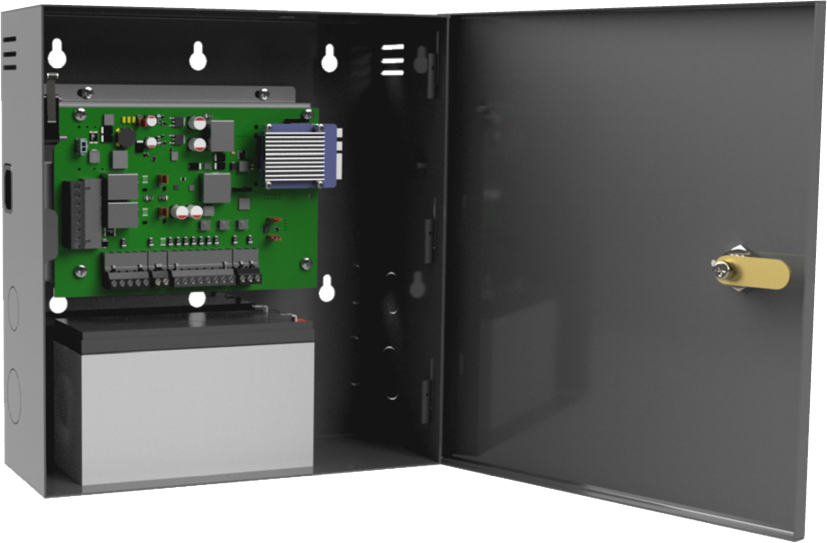

Speco - A1P - One Door Panel with integrated power
Part number:
Price:
Product Overview
One Door Panel with integrated power. Power for panel, readers, locks and battery. All outputs are isolated.
Key Configuration
Model: A1P
Key Features
- • Functions as a Server, Client or Elevator.
- • Browser managed – No software to load.
- • 2 Readers (In/Out) / Wiegand – OSDP Ready.
- • 2 Relays (Lock/Aux) / Wet or Dry Selectable – Global.
- • 3 Inputs (REX, DPS, Aux) Global.
Installation Notes
9.5" (W) x 10.5" (H) x 3" (D)
| Features | |
| Model: | 1DMPL |
| Operating System: | Embedded Linux |
| Transactions: | > 60 per second |
| Power Requirements: | 115VAC-5'IEC cord included |
| Operating Temperature: | 50°F to 95°F (10°C to 35°C) |
| Enclosure Size: | 9.5" (W) x 10.5" (H) x 3" (D) |
| Standby Power Requirements: | 350mA @ 12V |
| Number of Doors: | 1 Total |
| Readers (Wiegand): | 2 Total, One In & One Out Reader |
| Reader Power: | 300mA @ 12V Max per Reader, 600mA @ 12V Max per Panel |
| Request to Exit (REX) Input: | 1 |
| Door Position (status) Input: | 1 |
| Auxiliary Input: | 1 |
| Mechanical Tamper: | Yes |
| Power Fault Monitoring: | Yes |
| Door Lock Relay (Wet or Dry): | 1 Form C Relay, 24V @ 2.0A (Dry) |
| Lock Power (Selectable): | 12 VDC 900mA or 24 VDC 900mA |
| Technical Specification | |
| “One” Door Panel with integrated power | |
| Power for panel, readers, locks and battery | |
| All outputs are isolated | |
| Lock outputs are auto-resetting fused | |
| Lock and Auxiliary power is jumper selectable for “Dry” or “Wet” contacts | |
| Battery Charging Disable Option for POE installations | |
| Functions as a Server, Client or Elevator | |
| Browser managed - No software to load | |
| 2 Readers (In/Out) / Wiegand - OSDP Ready | |
| 2 Relays (Lock/Aux) / Wet or Dry Selectable - Global | |
| 3 Inputs (REX, DPS, Aux) Global | |
| ETL UL 294 Ed. 8 Listed | |
| NDAA Compliant | |
| Auxiliary Relay (Wet or Dry): | |
| Aux Power (Selectable): | |
