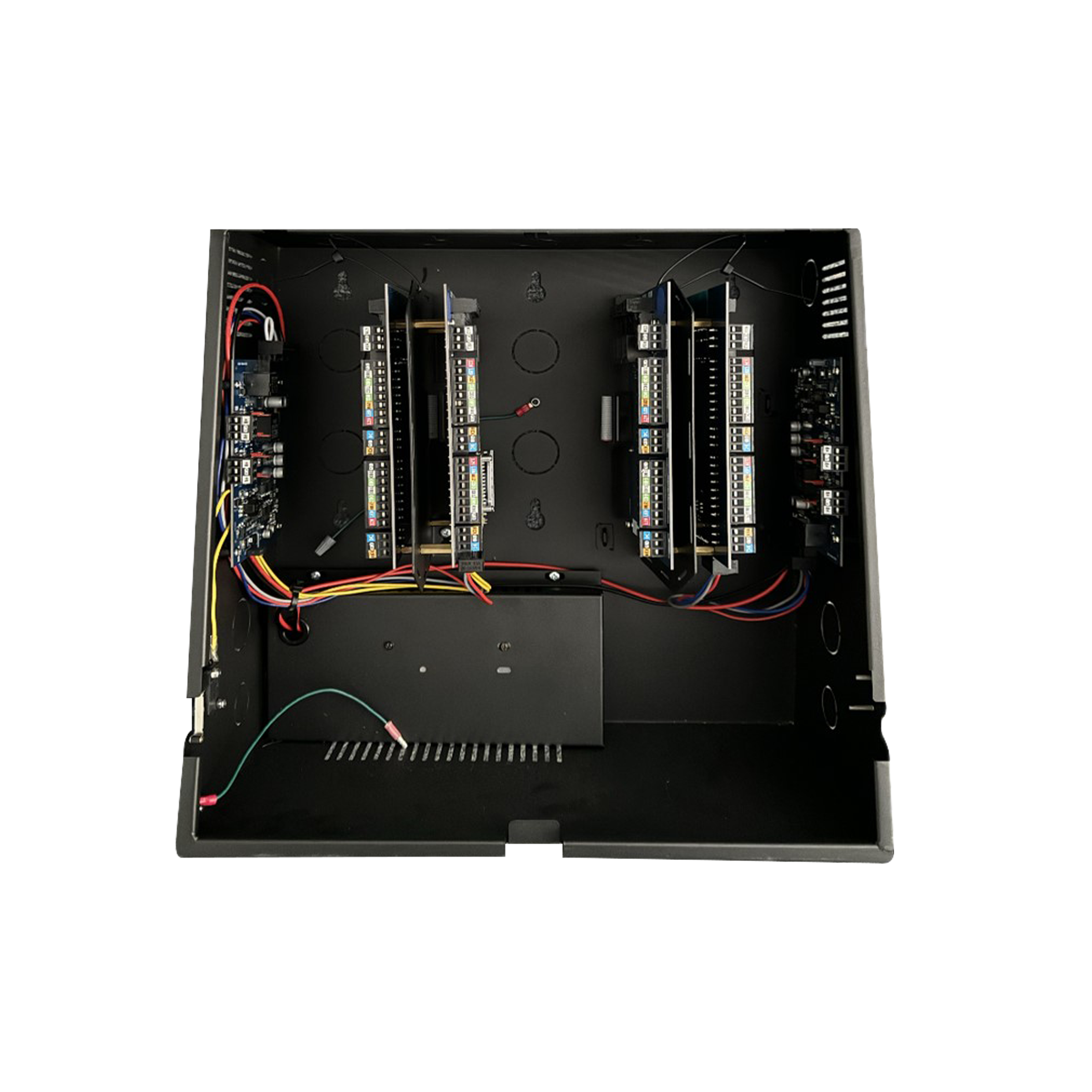

Speco - A8P - Eight Door Controller with Lock Power

Product Overview

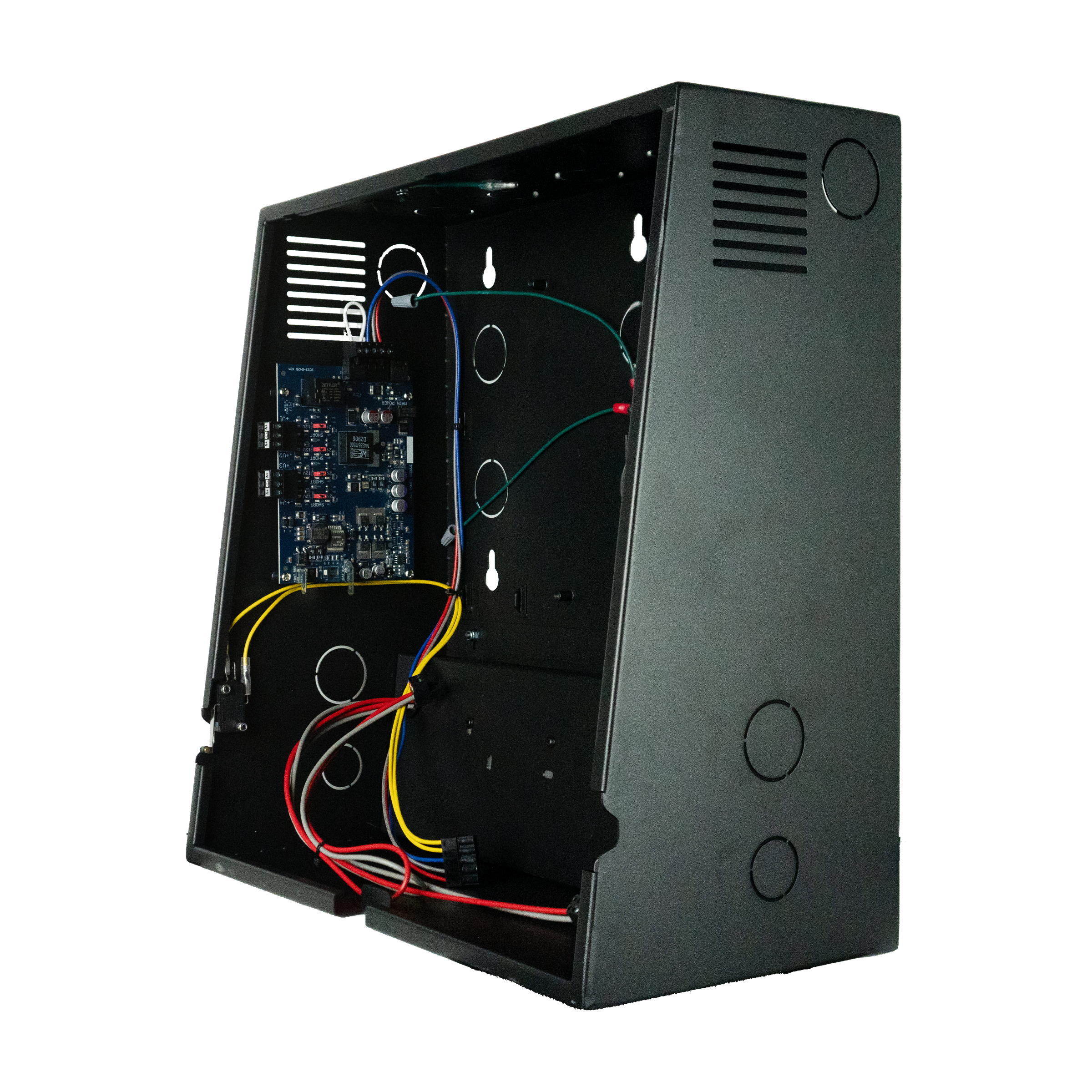

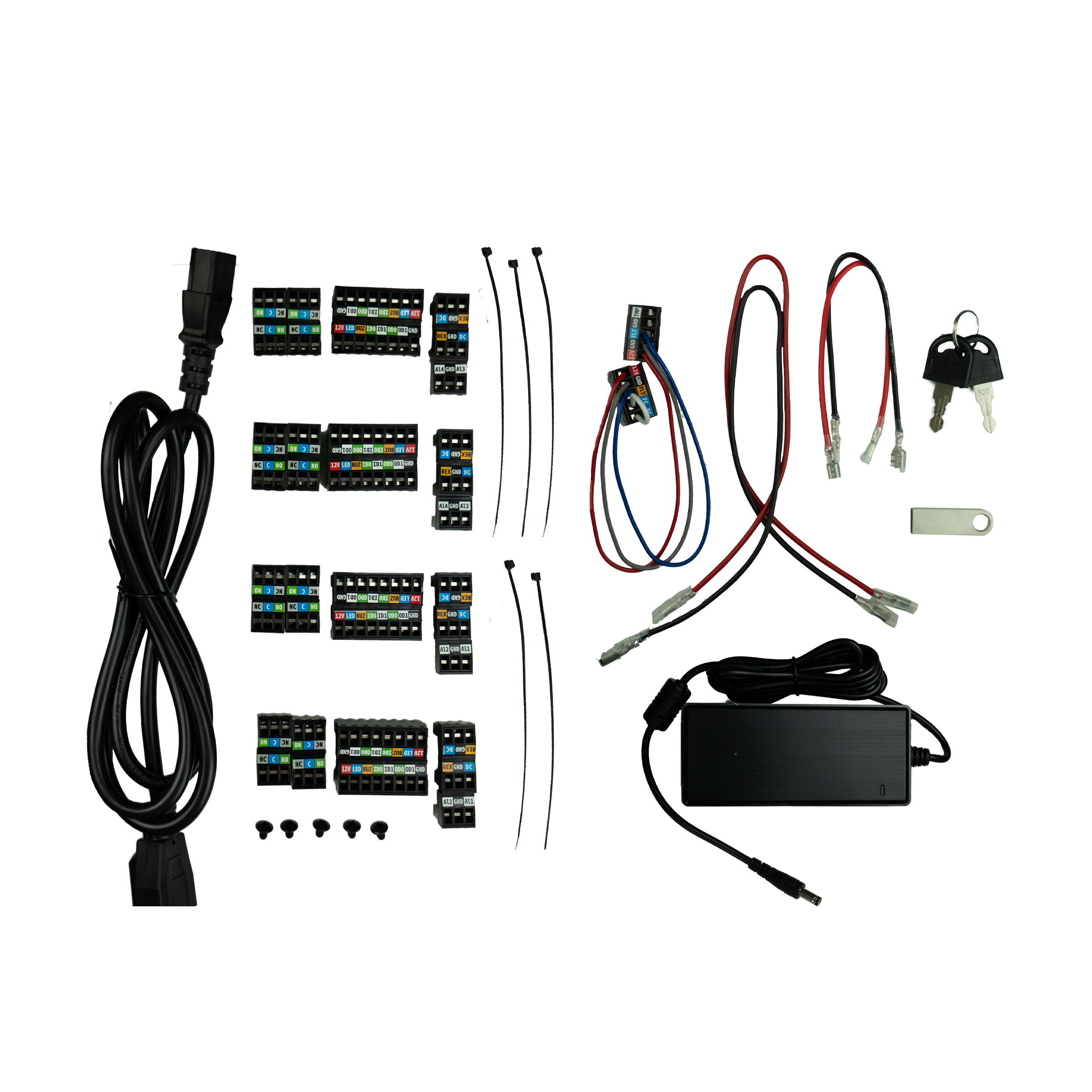

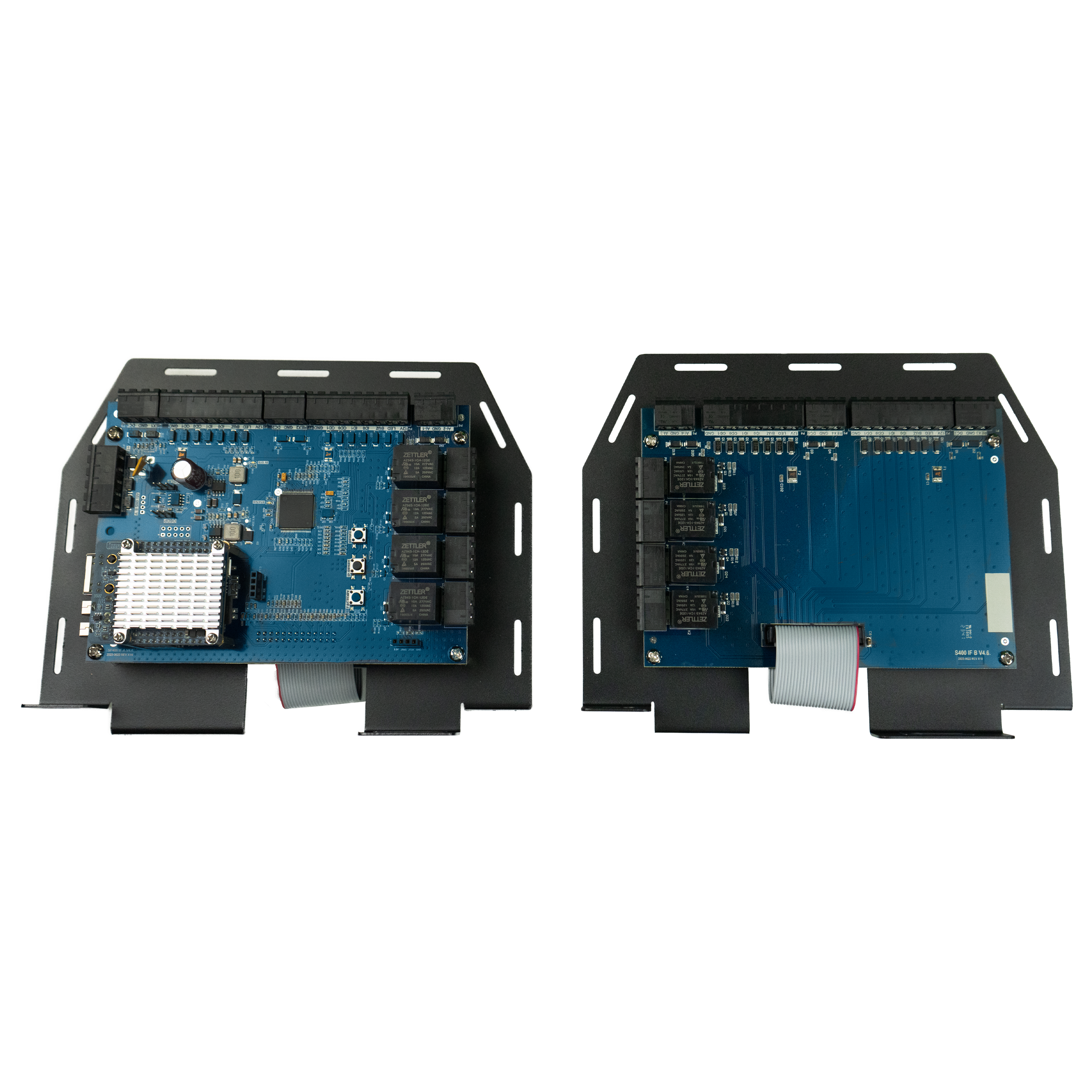

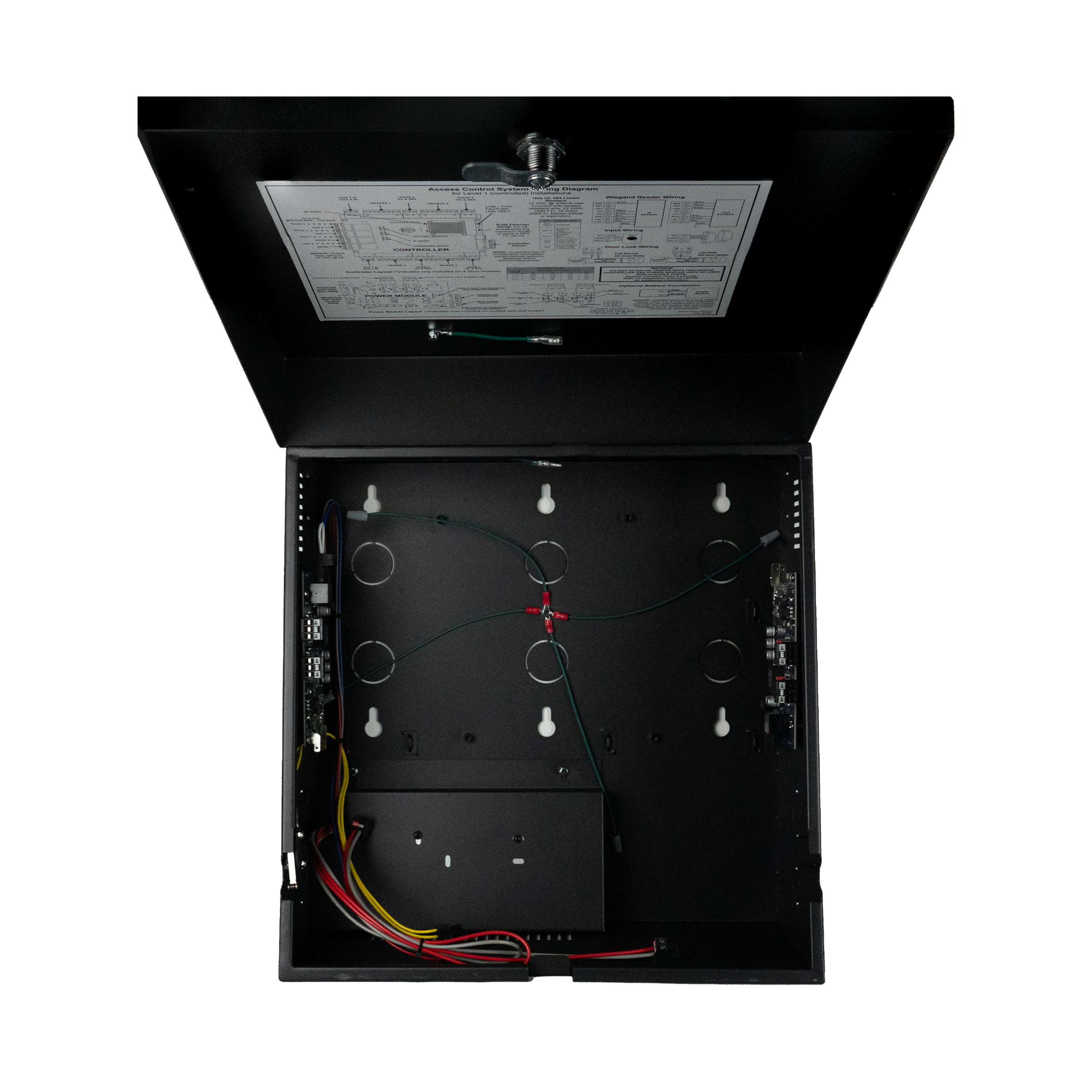

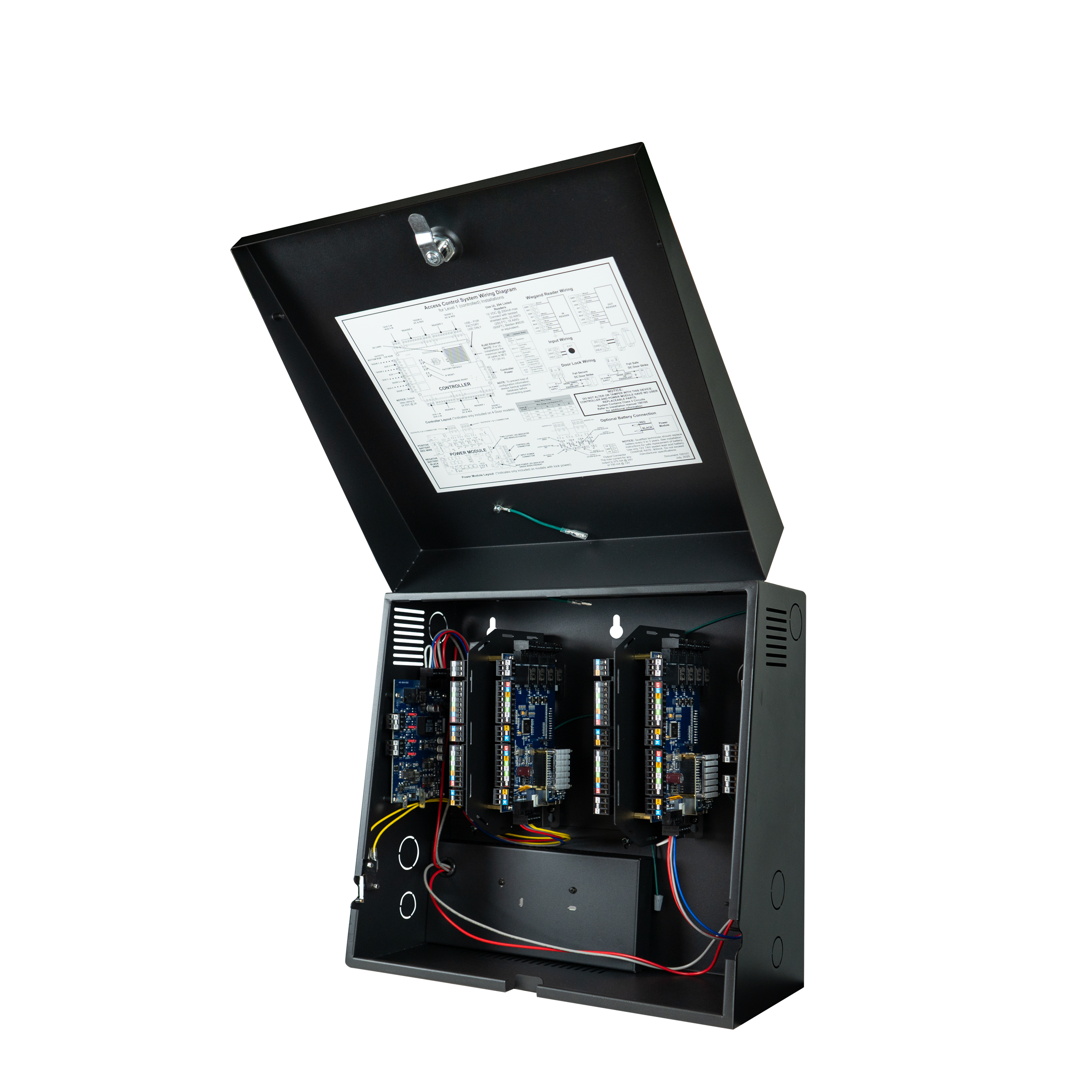

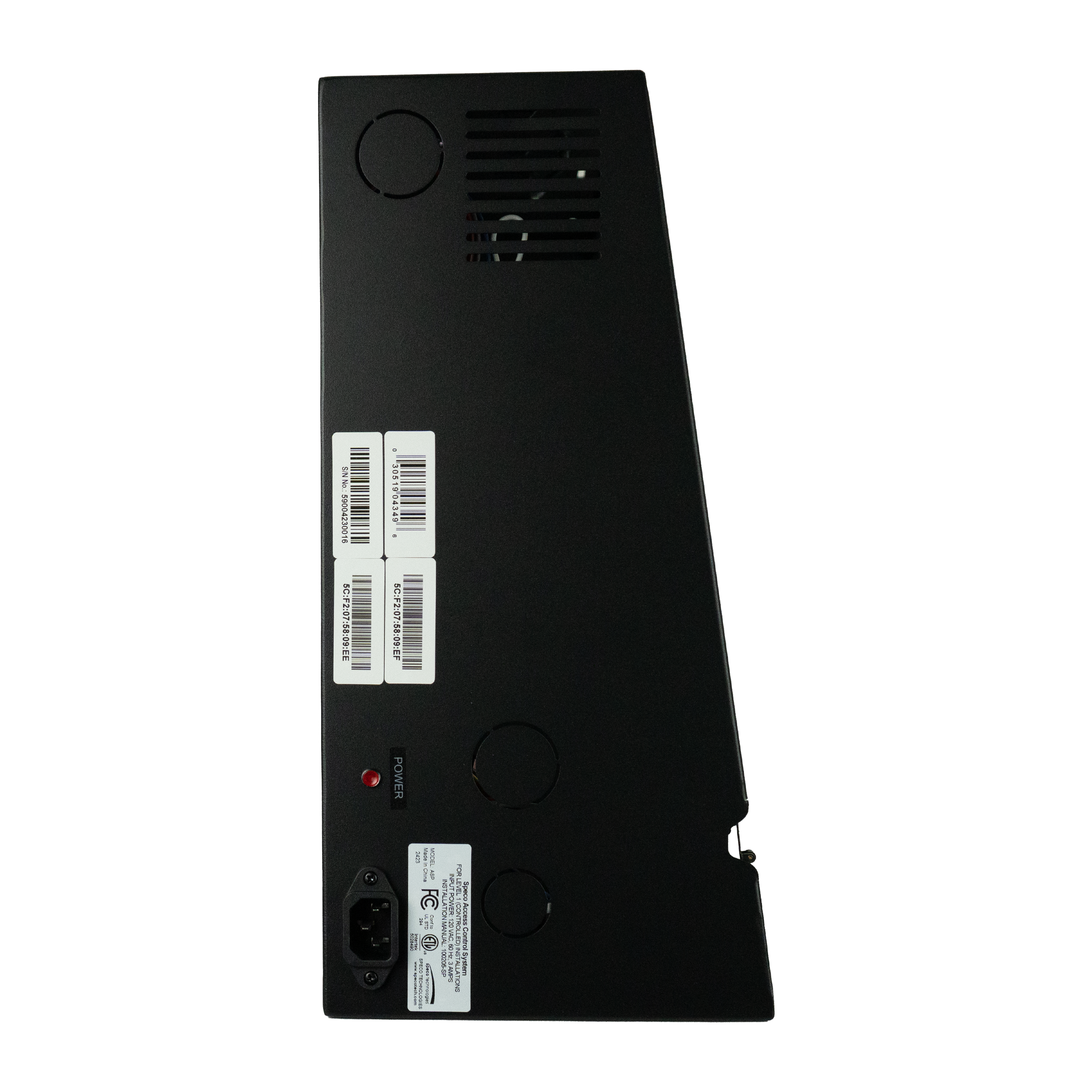

**Panel Features** - Equivalent to having two A2E4Ps in one can - Contains two 4-door modules in one housing ​ - Each module can function as a “Server”, “Client” or “Elevator” ​ - Integrated 150-Watt power supply for complete system power​ - Wedge – Open enclosure design provides easy access to wiring​ - Lid removal disconnect pins for fast access to hardware​ - Tie downs support dual sided strapping for wire management - Cut Back Housing allows for wiring accessibility and easier to see your work​ - Mounting bar has wiring tie down slots for wire management on both sides of bar - ETL – UL 294 ​ - 5 year hardware warranty **Lock Power** - Lock power located on left/ right sides​ - 5’ IEC Cord Included​ - 8 Auto Resetting Fused Outputs​ - Isolated power for readers & controller​ - Selectable 12 or 24 VDC per output​ - LED status for voltage, power short and fire input triggered​ - Fire Drop Input​ - Power Supervision – log and action​ - Battery Backup (batteries not included)​ - Battery Backup for 12- and 24-volt outputs

Key Configuration

Model: A8P

Installation Notes

14.75" (W) × 14.75" (H) × 7" (D)
