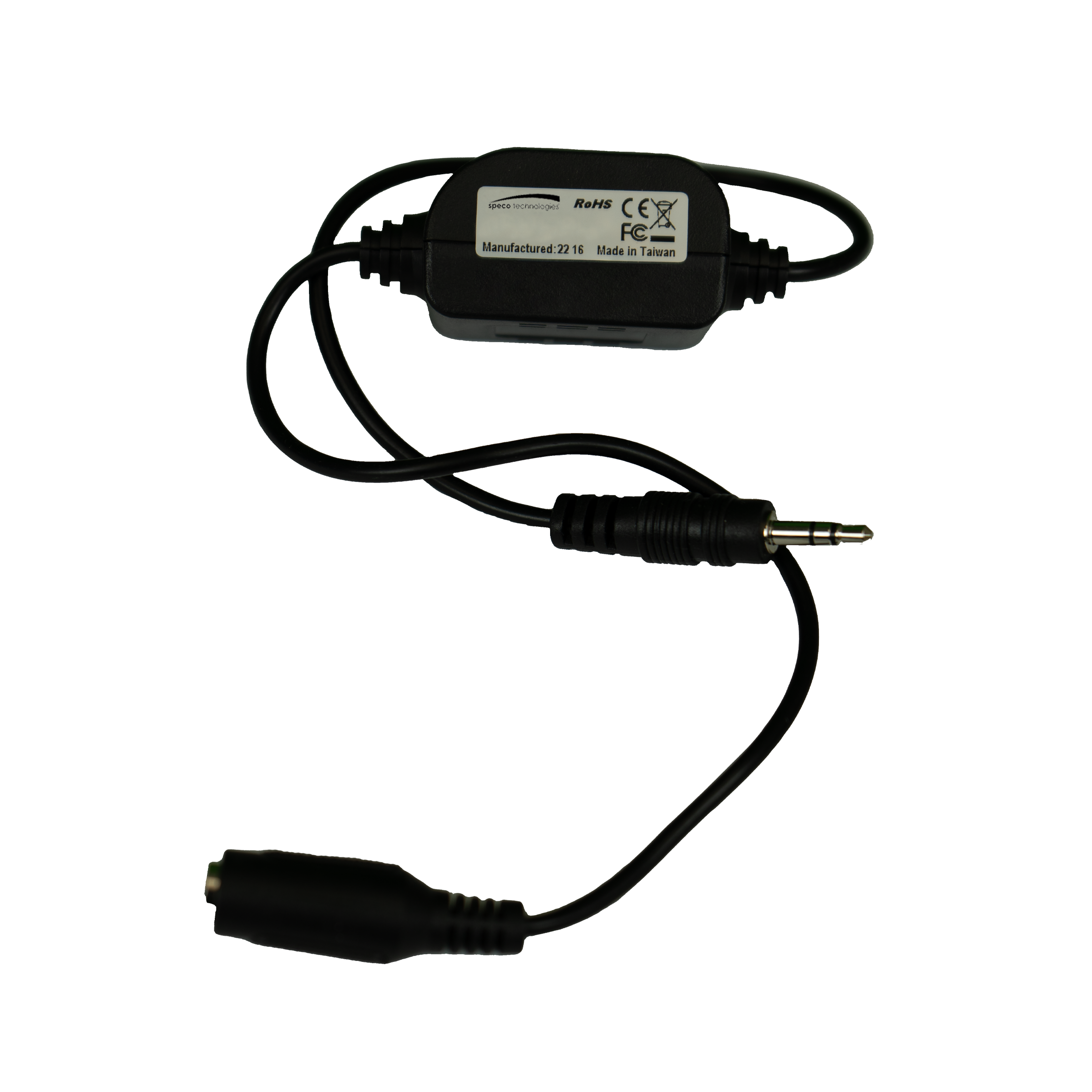

Speco - AGL - 3.5mm Stereo Audio Ground Loop Isolator
Part number:
Price:
Product Overview
AGL is an audio ground loop isolator designed to reduce signal interference caused by voltage potential differences at the ground points between two devices.
Key Configuration
Model: AGL
Key Features
- • 3.5mm male and female connectors.
Installation Notes
21 x 1.1 x 1" (552 x 29 x 25mm)
| Full Specifications | |
| Connector Type | 3.5mm male and female |
| Function | Reduces signal interference |
| Audio Bandwidth | 20 to 20KHz (-3dB) |
| Frequency | @Ref 600 Ohm: @300Hz= ± 0.35dB, @4Khz=± 0.35dB |
| Insertion Loss | @1KHZ, 0dBm |
| Return Loss | @Ref 600Ohm:: @300HZ= 20dB Min., @1Khz-22dB Min., @4Khz= 22dB Min. |
| Turn Ratio | @18Khz, 1Vrms |
| Audio Input Impedance | 600 Ω, 12.3 Vrms |
| Audio Input/ Output | 1 x 3.5mm Phone Jack, 1 x 3.5mm Phone Plug |
| Operation | 32 to 131°F (0 to 55°) |
| Storage | -4 to 185°F (-20 to 85°) |
| Humidity | Up to 95% |
