Speco - BRC6 - In-Ceiling Bracket for 6.5" Speaker (Pair)

Product Overview

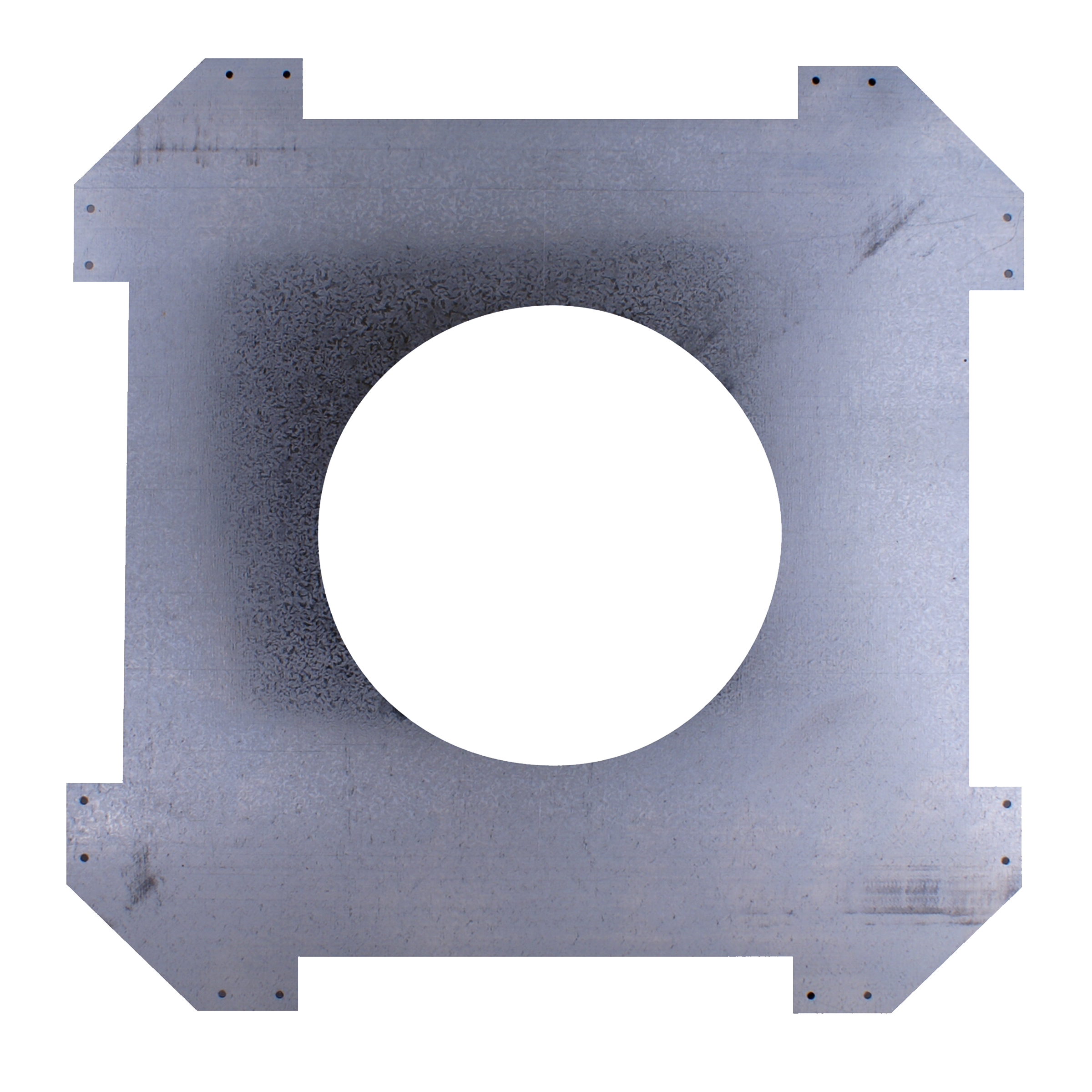

The Speco BRC6 is a pair of in-ceiling support brackets for 6.5" speakers, with a 7 3/4" cutout dimension. Each pair includes a 16-3/4" center support and two attachable 2 ft support rails. Speco lists it for use with the SP652CD, SPCBC6, SPG66T, SPG66TC.

Key Configuration

Model: BRC6 | Configuration: In-ceiling support bracket, supplied as a pair | Cutout Dimension: 7 3/4" | Compatibility: SP652CD, SPCBC6, SPG66T, SPG66TC | Protection: NDAA Section 889 Part B compliant

Key Features

• • Supplied as a pair.
• • Includes one 16-3/4" center support.
• • Includes two attachable 2 ft support rails.
• • For use with Speco SP652CD, SPCBC6, SPG66T, SPG66TC.
• • NDAA-compliant.

Installation Notes

The brackets install into the ceiling void before the speaker, spanning joists via the two 2 ft rails and the 16-3/4" center support. Cut-out diameter is 7 3/4" — confirm it against the speaker being fitted, as the BRC series differs only in this dimension. A single tech manual covers the whole BRC bracket range.
