Speco - BRC8 - In-Ceiling Bracket for 8" Speaker (Pair), 9.5" Cutout

Product Overview

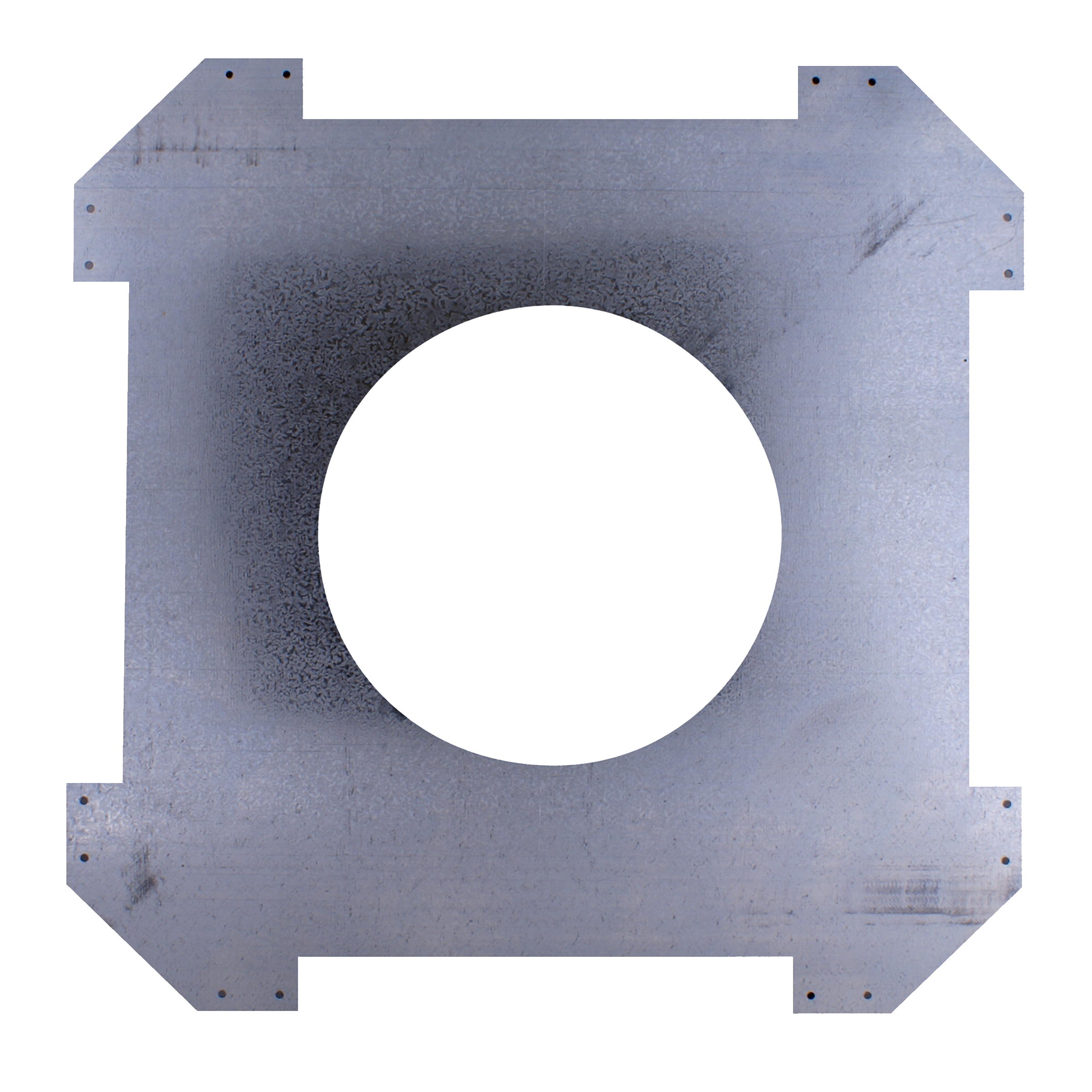

The Speco BRC8 is a pair of in-ceiling support brackets for 8" speakers, with a 9.5" cutout dimension. Each pair includes a 16-3/4" square center support and two attachable 2 ft support rails. Speco lists it for use with the SPCBC8, SPG86T and SPG86TC.

Key Configuration

Model: BRC8 | Configuration: In-ceiling support bracket, supplied as a pair | Cutout Dimension: 9.5" | Compatibility: SPCBC8, SPG86T, SPG86TC | Protection: NDAA Section 889 Part B compliant

Key Features

• • Supplied as a pair.
• • Includes one 16-3/4" square center support.
• • Includes two attachable 2 ft support rails.
• • For use with Speco SPCBC8, SPG86T, SPG86TC.
• • NDAA-compliant.

Installation Notes

The brackets install into the ceiling void before the speaker, spanning joists via the two 2 ft rails and the 16-3/4" square center support. Cutout dimension is 9.5" — confirm it against the speaker being fitted, as the BRC series differs only in this dimension. A single tech manual covers the whole BRC bracket range.
