Speco - BRC8F - In-Ceiling Bracket for 8" Speaker (Pair), 9 7/8" Cutout

Product Overview

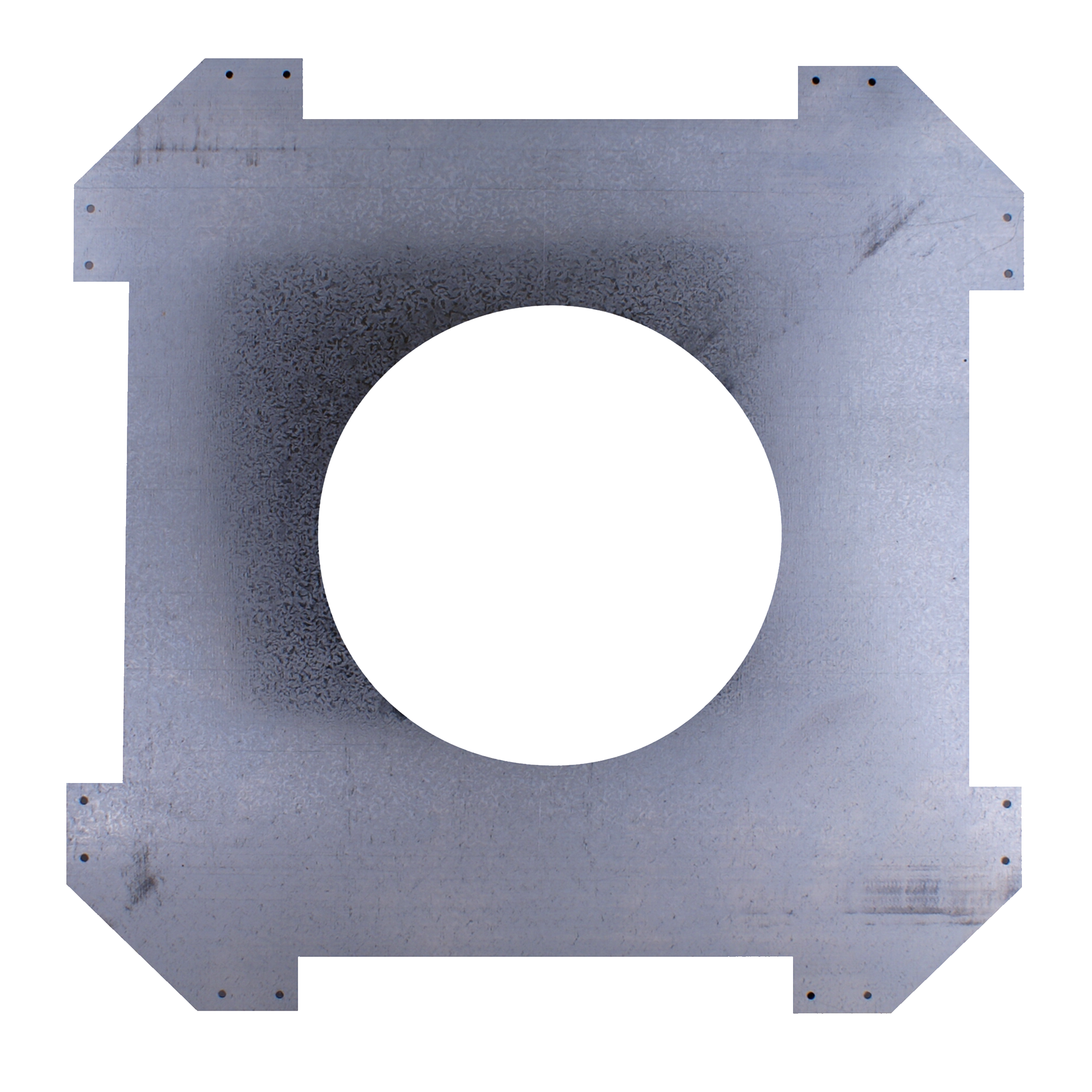

The Speco BRC8F is a pair of in-ceiling support brackets for 8" speakers, with a 9 7/8" cutout dimension. Each pair includes a 16-3/4" square support and two attachable 2 ft tile supports. Speco lists it for use with the SP8ECS and SP6MAT.

Key Configuration

Model: BRC8F | Configuration: In-ceiling support bracket, supplied as a pair | Cutout Dimension: 9 7/8" | Compatibility: SP8ECS, SP6MAT | Protection: NDAA Section 889 Part B compliant

Key Features

• • Supplied as a pair.
• • Includes one 16-3/4" square support.
• • Includes two attachable 2 ft tile supports.
• • For use with Speco SP8ECS, SP6MAT.
• • NDAA-compliant.

Installation Notes

The brackets install into the ceiling void before the speaker, spanning joists via the two 2 ft tile supports and the 16-3/4" square support. Cutout dimension is 9 7/8" — confirm it against the speaker being fitted, as the BRC series differs only in this dimension. A single tech manual covers the whole BRC bracket range.
