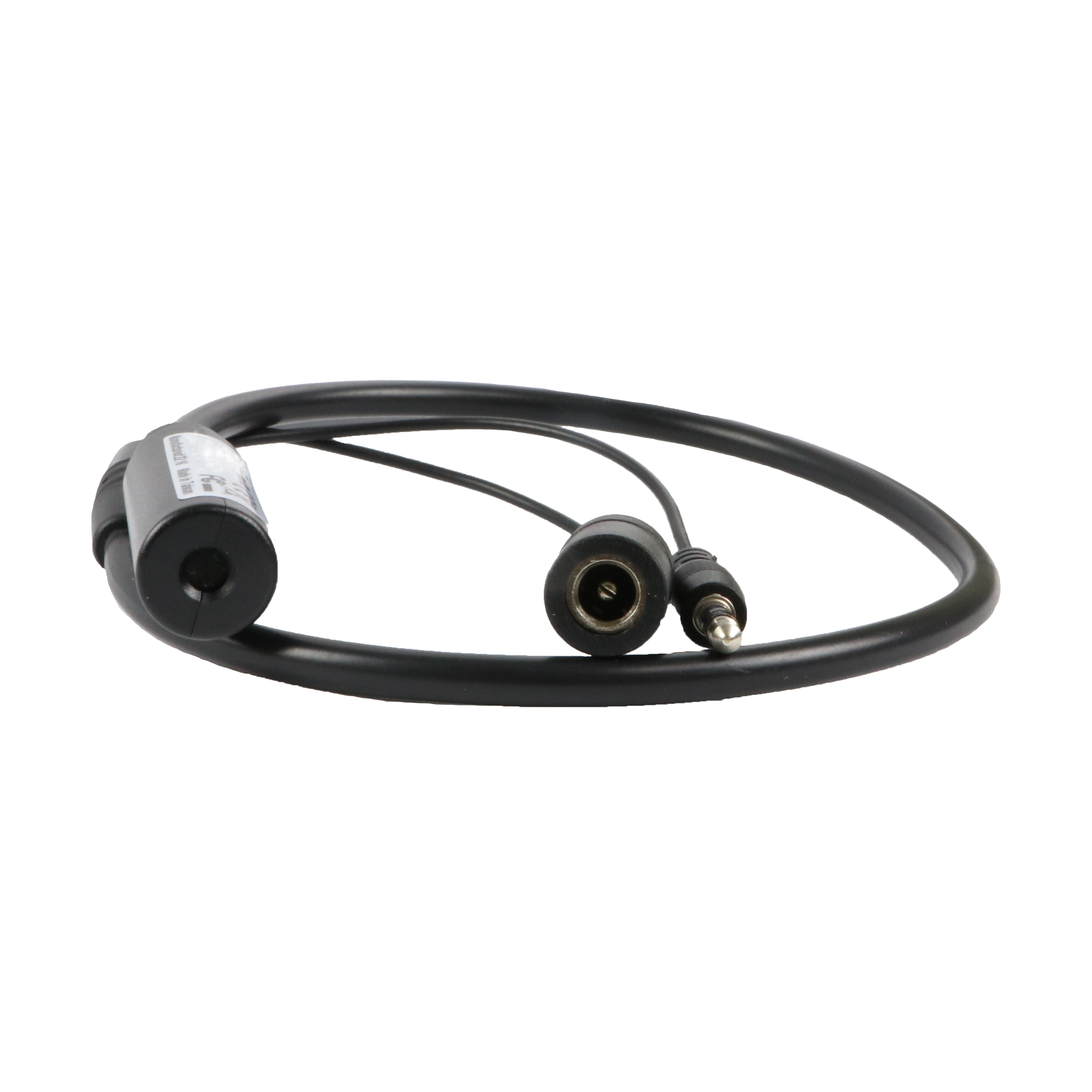

Speco - CAMMIC3.5 - Line Level Microphone with 3.5mm Jack For Use With IP Cameras
Part number:
Price:
Product Overview
Records audio for a CCTV camera
Key Configuration
Model: CAMMIC3.5
Key Features
- • Supports sensitivity at -65dB.
- • Includes an 18” DC jack/audio cable.
Installation Notes
2 x 0.6 x 0.6" (50 x 14 x 14mm) & 18" (450mm) Cable
| Specifications | |
| Support | |
| Sensitivity | -65dB ( ± 3dB@ 1 KHz) |
| Frequency Response | 30Hz to 16KHz |
| Ports & Interfaces | |
| Audio Output | 1 x RCA Female Jack (2.2K Ω , 2V p-p) |
| Power Interface | 1 x DC Plug |
| Power | |
| Power Supply | DC 12V ( ± 0.5V) |
| Power Consumption | 10 mA |
| Ambient Temperature | |
| Operation | 14 to 113°F (-10 to 45°) |
| Storage | -22 to 140°F (-30 to 60°) |
| Humidity | Up to 95% |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.6mb
