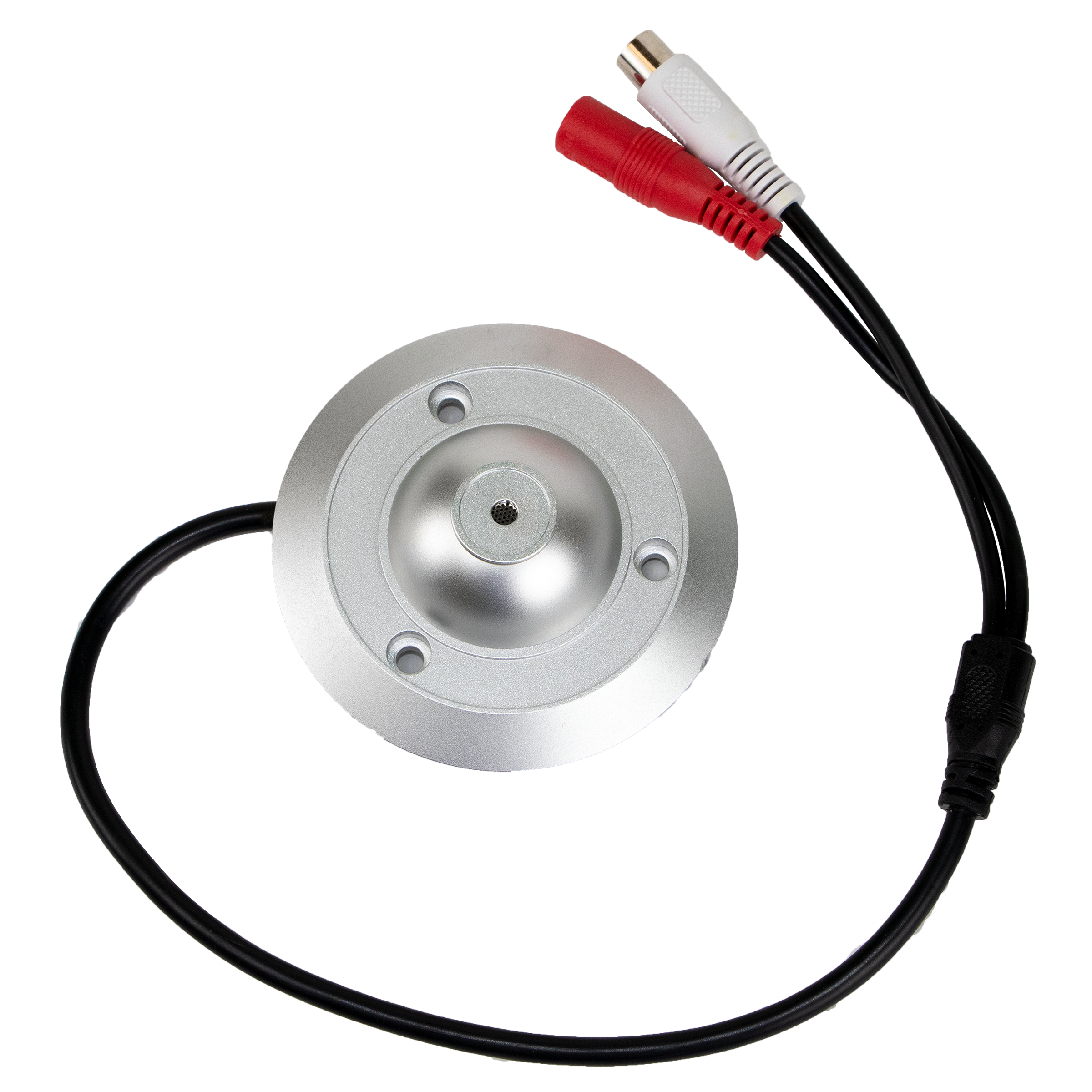

Speco - CAMMICW - Weather-Resistant Line Level Microphone
Part number:
Price:
Product Overview
Constructed out of Aluminum alloy for outdoor use. Pickup indoors in rooms up to 120 sq. ft. Built-in high-speed voice processing. Built-in self-gain control AGC processing circuit, which helps prevent signal distortion. Built-in lightning protection, reverse polarity power protection and power protection module. Integrated pre-amplification processing circuit. Recommended transmission distance of 25’ – optional accessory UTPAUDIO is available for transmission up to one mile over UTP cable. Requires power supply (not included). PSW5 is recommended. 2 year warranty.
Key Configuration
Model: CAMMICW
Installation Notes
3" diameter × 1" (H) (75*25mm)
| Full Specifications | |
| Construction | Aluminum alloy |
| Pickup Area | Indoors up to 120 sq. ft. |
| Processing | High-speed voice processing |
| AGC | Built-in self-gain control |
| Protection | Lightning and reverse polarity protection |
| Transmission Distance | 25’ (options available for up to 1 mile) |
| Power Supply | Requires external power supply (not included) |
| Warranty | 2 years |
| Range | 10 ~ 120 ft.2 |
| Sensitivity | -43dB @ 1000 Hz |
| S/N | Max 65dB |
| Operating Voltage | 9 - 12VDC, 25mA (max) (not included) |
| Dimensions | 3" diameter × 1" (H) (75*25mm) |
| Connection Mode | Red (power), black (GND, signal to), white (audio signal) |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
User Manual
0.1mb
