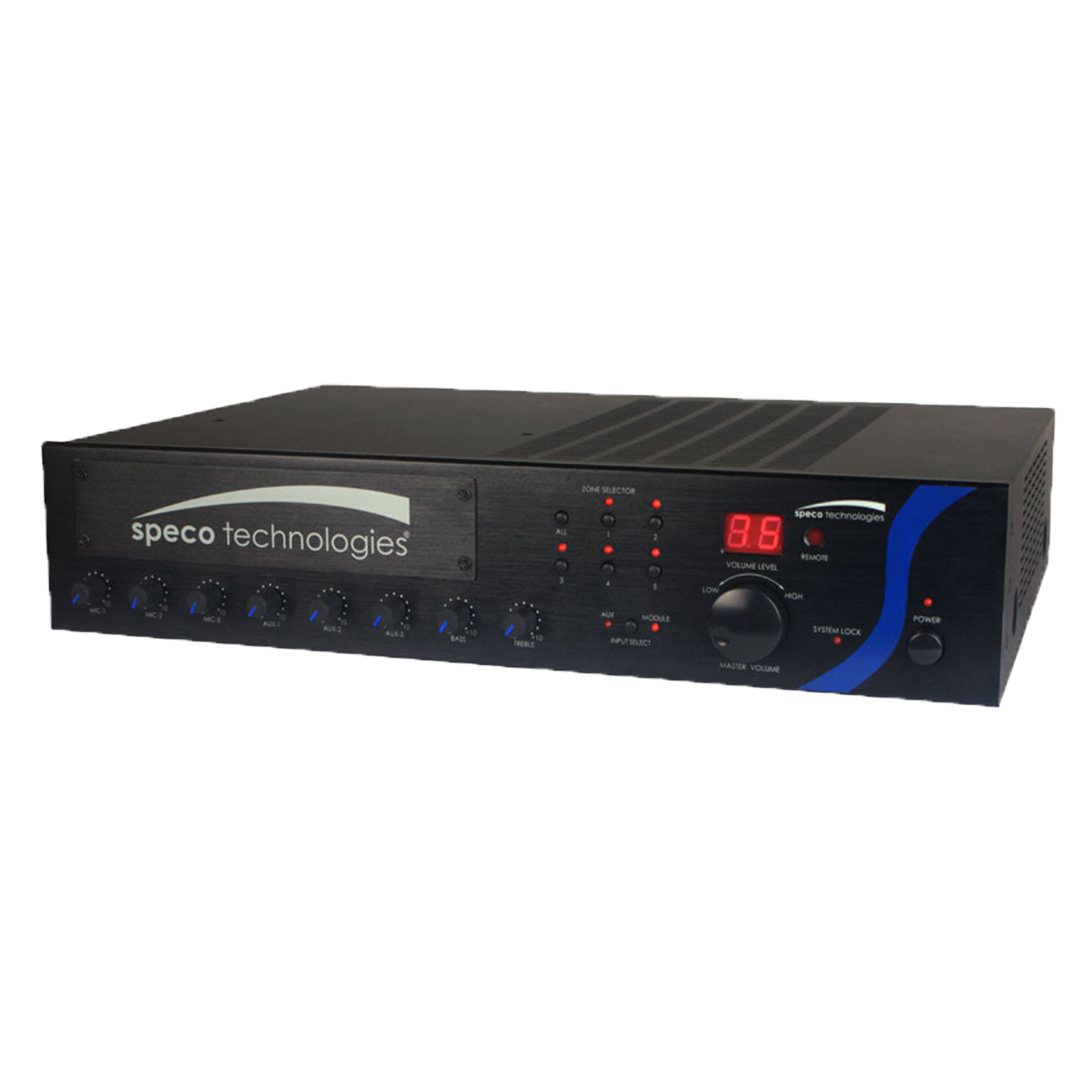

Speco - PBM60A - 60W PA Mixer Amplifier with Module Bay
Part number:
Price:
Product Overview
The PBM-A Series represents the next generation of Speco Technologies’ commercial public address amplifiers. We have taken your input and created the perfect amplifier for almost any application. In addition to the great features you’ve come to expect, the PBM-A series has ample inputs, an included IR remote control, an RS232 input for integration with control systems, front panel locking capability, and includes all rack-mount hardware. With a stylish appearance and all these additional features at a price similar to previous generation amplifiers, the PBM-A series is sure to become your go-to amplifier.
Key Configuration
Model: PBM60A
Key Features
- • Includes IR remote and rack-mounting kit.
- • 5 zoned 70 or 25V speaker outputs.
- • Non-zoned 4/8/16 Ohms output.
- • Master digital volume control with display.
- • Individual volume control for each input.
Installation Notes
16.9" (W) × 3.4" (H) × 11.75" (D)
| Speaker Specifications | |
| Model | PBM60A/T/U |
| RMS Output Power | 60W |
| Max Output Power | 80W |
| AC Power Consumption | 100W |
| Power Supply | AC115V, 60Hz |
| Zones | 5 |
| Speaker Outputs | 4/8/16 Ohms (non-zoned) |
| Other Outputs | Aux (RCA or XLR) |
| Inputs | 1 × AM Antenna (Press terminal), 1 × FM Antenna (BNC), 3 × Aux (Stereo RCA), 3 × Mic (XLR), 1 × RA-232, 1 × TEL (Terminal) |
| Frequency Response | 50Hz ~ 20kHz |
| Tone Control | Bass ± 10dB, Treble ± 10dB |
| THD | Less than 1% @ KHz |
| Signal/Noise Ratio | >88dB |
| Controls | Volume for each source, Master Volume, Vox Volume, MoH Volume, Tone, Source Selector, Zone Selector, Module |
| Telephone | TEL in and MoH Out |
| Indicators | Volume level, power source, & System Lock |
| Weight | 20lbs. |
| Includes | IR Remote Control, Rack Mounting Hardware |
| Listings | CE, FCC, RoHS |
Name
Description
Size
Downloads
File
Manual
1.7mb
File
Specification Sheet
0.3mb
