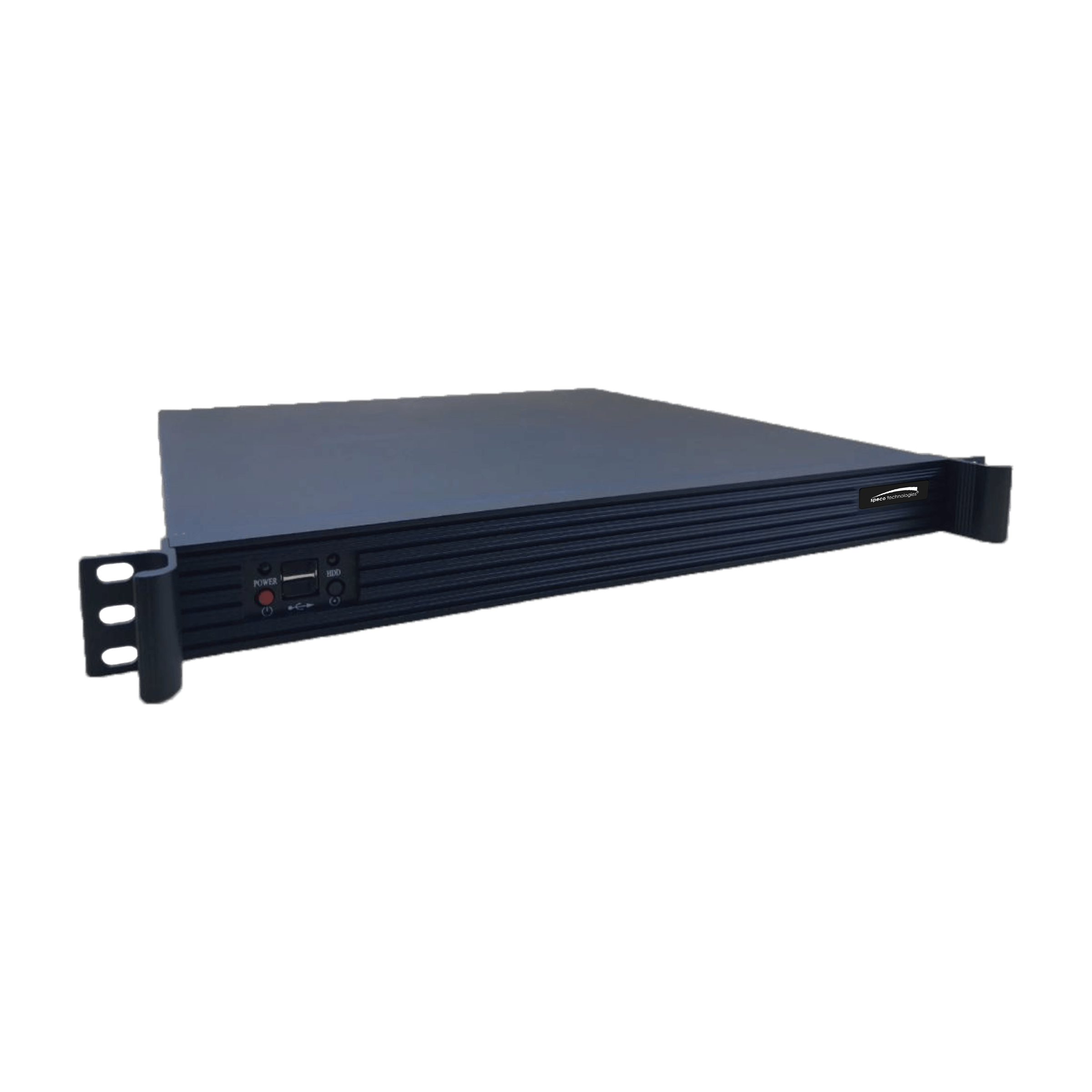

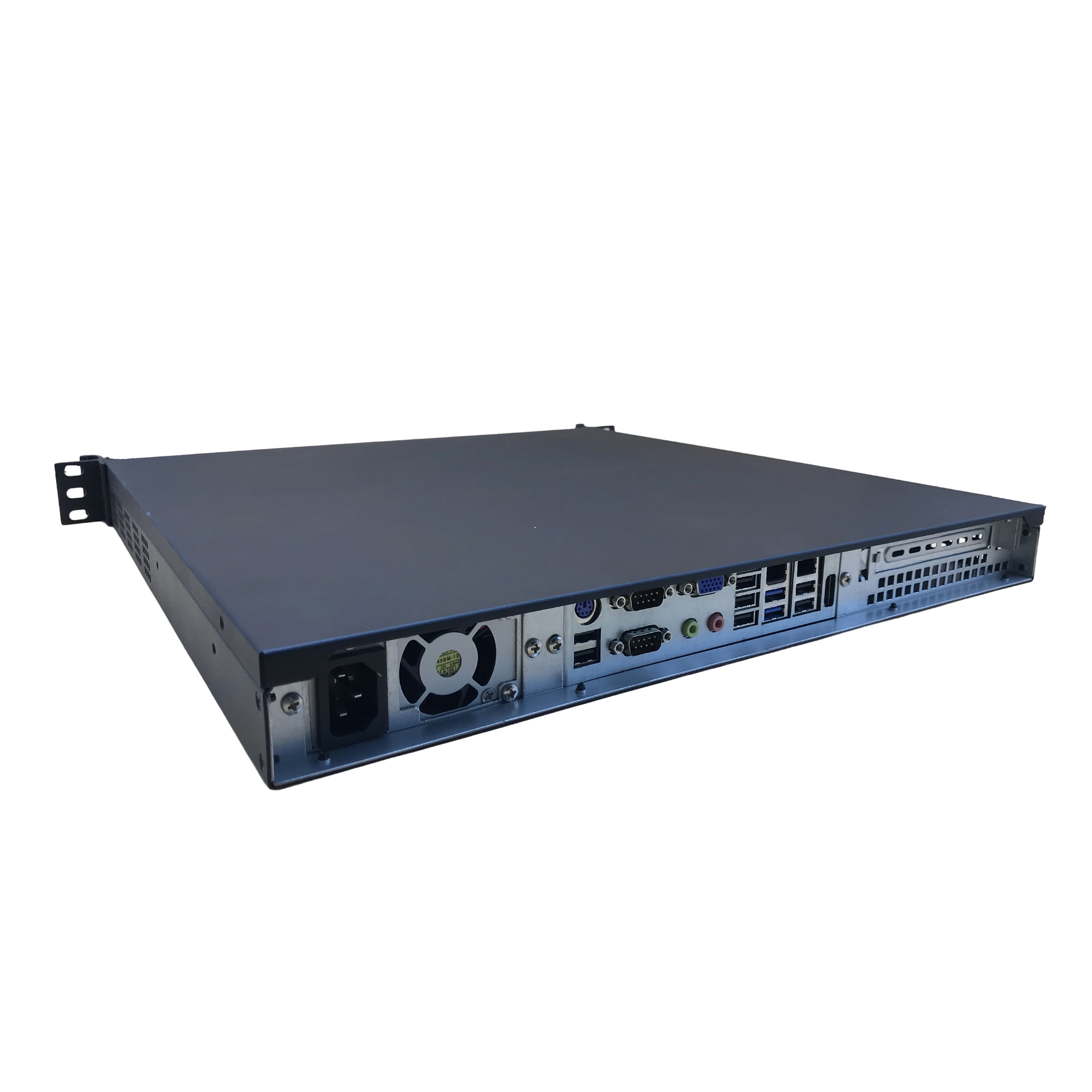

Speco - SB11M - Speco Blue Enterprise Servers to Host and Manage Speco Blue Devices
Part number:
Price:
Product Overview
The Speco Blue Enterprise management servers are designed to meet the requirements for any application, big or small, with their robust performance, scalability, and feature rich platform.
Key Configuration
Model: SB11M
Key Features
- • Comes pre-installed with Speco Blue Enterprise VMS.
- • Supports all Speco Blue Recorders and IP Cameras.
- • Can be connected to and configured remotely via Speco Blue Enterprise Client software.
Installation Notes
19.21in x 1.77in x 17.01in (W x H x D)
| Full Specifications | |
| Model | SB11M |
| Type | Rack-mountable Blade Server |
| Channels | Supports up to 1024 channels |
| System CPU | Intel Core i5 |
| System Memory | 8GB DDR4 |
| System Graphics Card | Integrated Graphics, Intel HD Graphics 530 |
| System PCI Expansion | None |
| System Operating System | |
| System Viewing Capability | 7-CH @ 8MP or 1-1CH @ 5MP or 14-CH @ 4MP or 24-CH @ 1080P or 33-CH @ 720P or 35-CH @ D1 (or lower) |
| Software Software | Speco Blue VMS Enterprise |
| Software Supported Protocols | Speco Blue Protocol, QR Code, ONVIF, RTSP |
| Software Max Number of Channels | 1024-CH |
| Software Max Number of Devices | 128 Devices |
| Software Max Decoding Output | 64-CH |
| Software Max Number of Storage Servers | 0 |
| Software Max Outgoing Bandwidth | 256 Mbps |
| Software Max User Access | |
| Software Max Simultaneous Users | 64 |
| HDD System HDD | |
| HDD Data HDD | 3.5-inch SATAx2, max. 20TB |
| Video & Audio HDMI Output | |
| Video & Audio VGA Output | |
| Video & Audio Display Port | None |
| Video & Audio Audio Output | (1) Line Out |
| Video & Audio Audio Input | (1) Mic Input |
| External Ethernet Interface | (2) RJ45 10/100/1000 self-adaptive Ethernet port |
| External USB Interface | USB 3.0 x 2 USB 2.0 x 10 |
| Other Power | ATX 180W |
| Other Power Consumption | <100 W |
| Other Working Temperature | 32°F to 140°F |
| Other Storing Temperature | -4°F to 167°F |
| Other Working Humidity | 95% @ 104°F (non-condensing) |
| Other Dimensions | 19.21in x 1.77in x 17.01in (W x H x D) |
| Other Weight | 13.27 Lbs |
