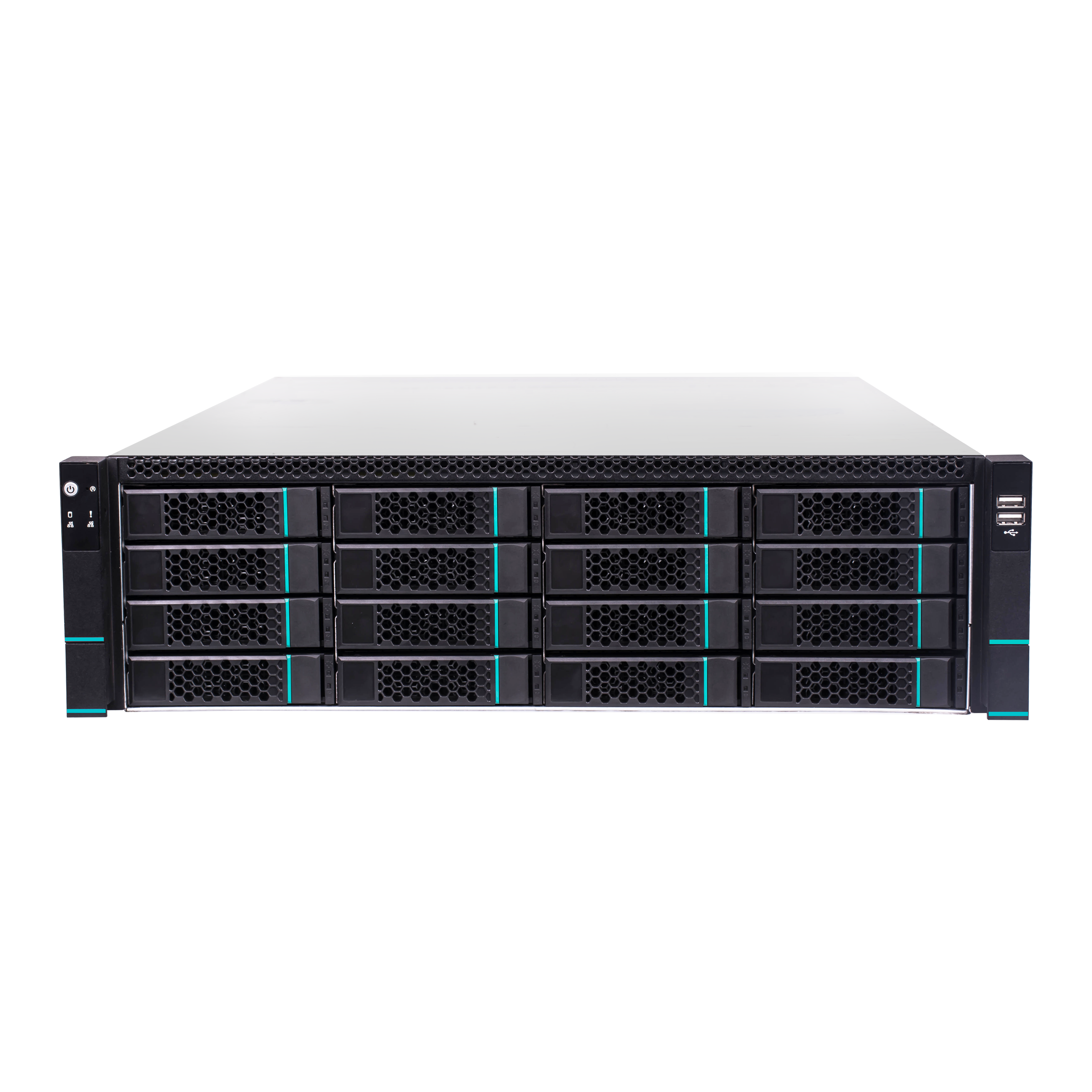

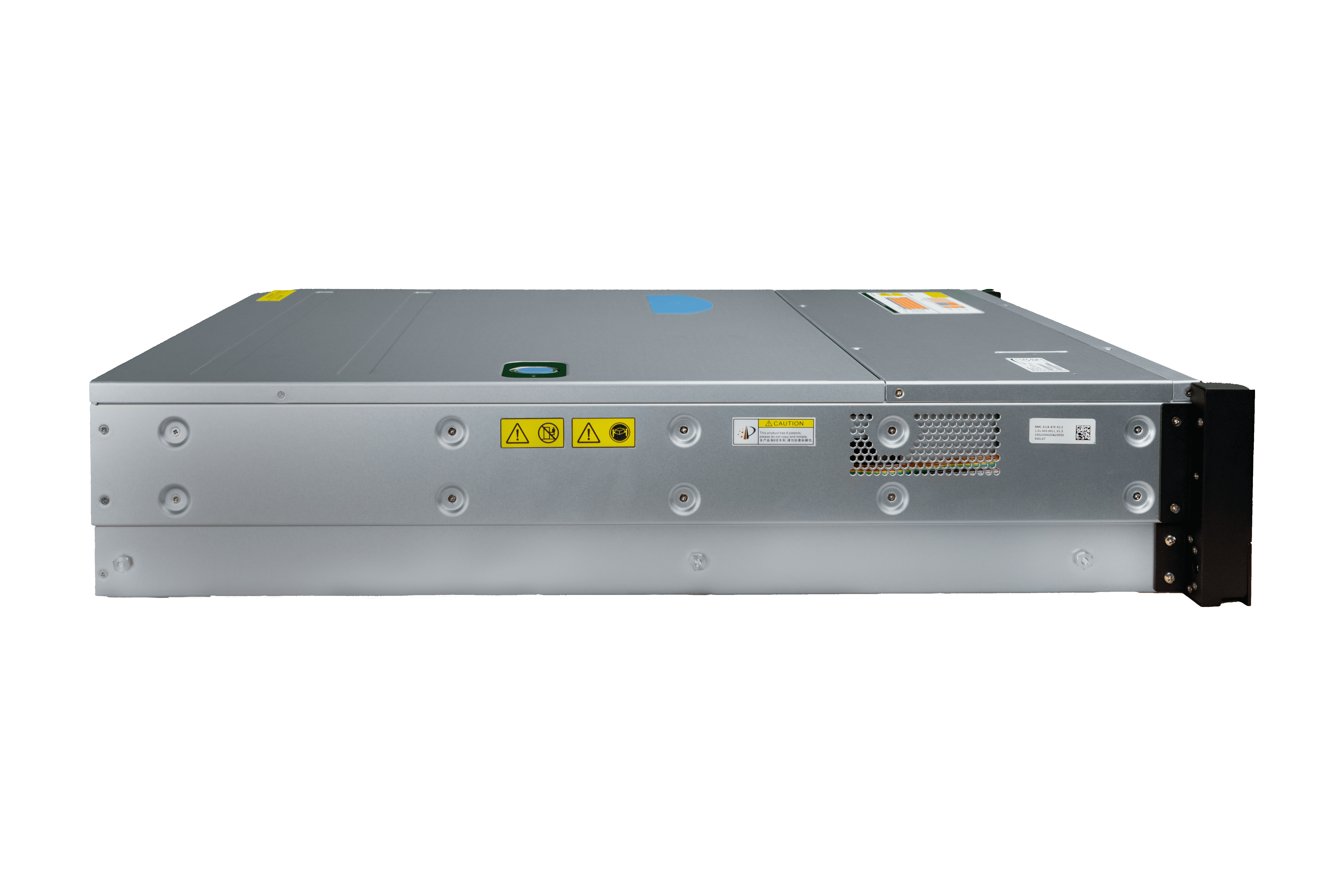

Speco - SB16S80TB - Blue Storage Server - 16bay, 80TB
Part number:
Price:
Product Overview
The SB16S provides an ample storage resource for Speco Blue installations. It can either be the main source of your recordings or be used as an extra layer of storage for your recorder channels adding redundancy.
Key Configuration
Model: SB16S80TB
Key Features
- • Redundant power supply.
- • Can be managed from a web browser or Speco Blue VMS Enterprise.
- • Comes with a hardware RAID controller that supports RAID 0, 1, 5, 6, 10.
- • Interfaces with management servers (SB01M, SB11M, and SB21M) to store recordings.
| Specifications | |
| Harddrive Size | 80TB |
| Protocols | speco Protocols |
| Features | Audio |
| Operating temperature | -40°F to +131°F (ambient) |
| Specification Sheet | |
| CPU | Intel Xeon Processor E3 |
| Operating System | Linux |
| Memory | 8GB DDR4 ECC |
| HDD | 3.5" SATA x 16 (hot-swappable) |
| HDD Installation | Independent HDD bracket |
| Capacity | Up to 256TB (max 16TB per HDD) |
| RAID | Hardware RAID (Supports RAID 0, 1, 5, 6, 10) |
| Expansion | (1)PCI-E3.0x16 (x8), (1)PCI-E3.0x8, (1)PCE-E3.0x8 (x4) |
| Network Card | Integrated I210-AT dual gigabit network card |
| IPMI | ASPEED AST2400BMC, indpendant IPMI interface (supports iKVM) |
| Monitor Control | Integrated display controller |
| Protocol | TCP, UDP, RTSP |
| Search | Built-in index (accurate to second-level) |
| Performance | Up to 800 Mbps incoming, 800 Mbps recording and 96Mbps for playback or live view |
| Management Access | Web Browser, Speco Blue VMS |
| Management Features | RAID Management, Record Management, System Logs, and Alarm Processing |
| Security | TPM |
| Video Output | VGA |

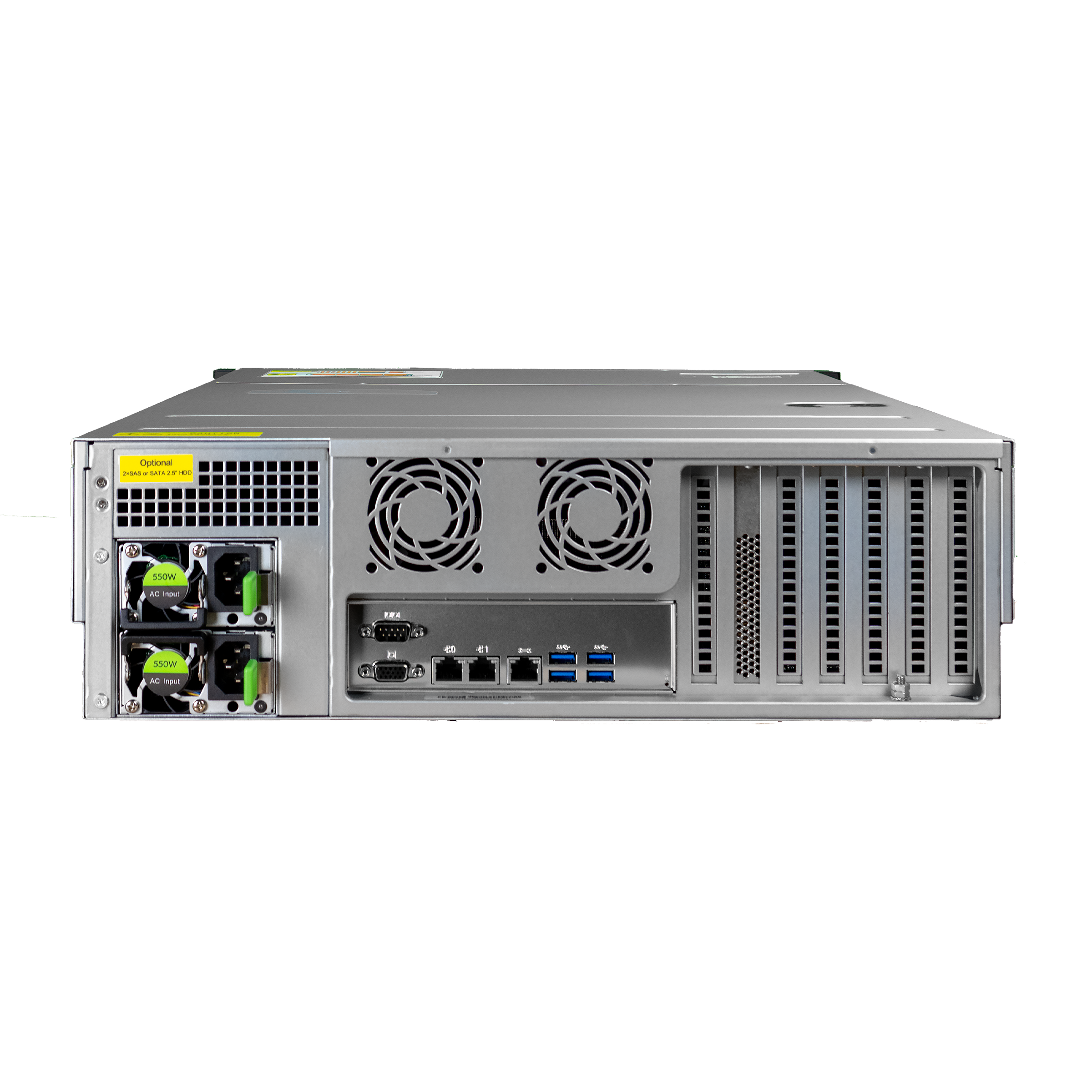

| USB Interfaces | Front Panel: USB 2.0 x 2, Rear Panel: USB 3.0 x 4 |
| Network Interfaces | 10/100/1000 Ethernet x 2 IPMI x 1 |
| Serial Interfaces | RS 232 x 1 |
| Power Supply | 550W Redundant Power Supply, 100-240V-7~3.4A/50~60Hz |
| Working Temperature | 50°F to 95°F |
| Standby Temperature | -40°F to +131°F (ambient) |
| Relative Humidity | Working: <90% RH (95°F) |
| Noise | Working: <50 Dba |
| ESD | Each item conforms to Intel ambient temperature test standard 15KV |
