Product Overview
Supports remote upgrading by Web client. Support PTZ mode, serial port mode, platform mode, up to 256 speed domes controllable in PTZ mode. Supports keypad tone.
Key Configuration

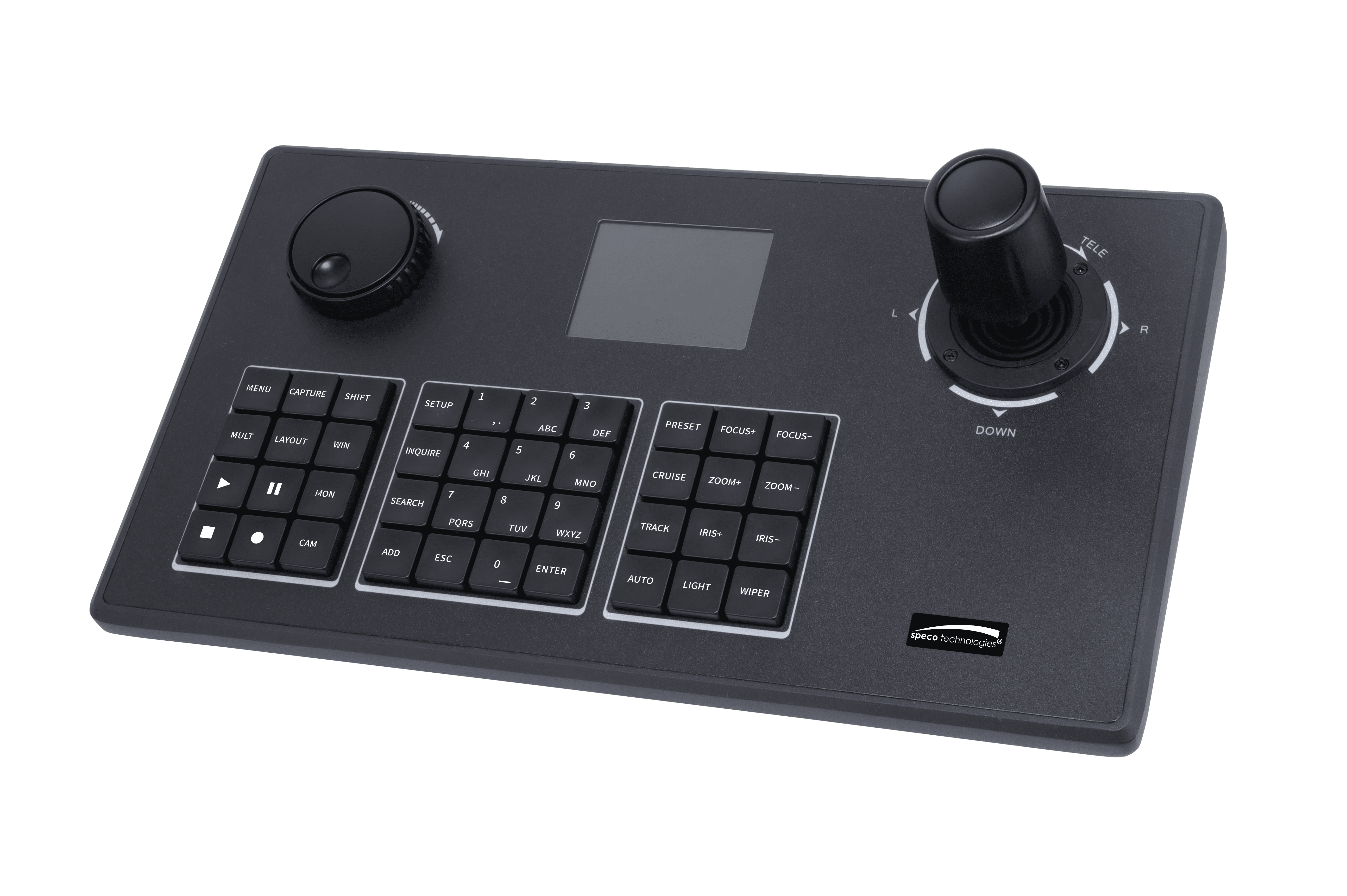

Model: SBPTZJOY
Key Features
- • Supports remote upgrading by Web client.
- • Support PTZ mode.
- • Serial port mode.
- • Platform mode.
- • Up to 256 speed domes controllable in PTZ mode.
Installation Notes
12.64 x 7.06 x 4.27 inches
| Specifications | |
| Display | TFT LCD 320*240 |
| Operation Interface | 4D Joystick, Knob, Buttons |
| Interface | 1 RJ45 10/100M adaptive Ethernet port |
| Control Mode | PTZ mode, platform mode and serial port mode |
| Network Management | The software can be upgraded by WEB client |
| Serial Port | RS422 x1; RS232x1 |
| Baudrate | 1200bps, 2400bps, 4800bps,9800bps,19200bps |
| Power | DC12V 2A |
| PoE | Supports PoE power supply (IEEE802.3 af) |
| Power Consumption | <5W |
| Working Temperature | 14°F-131°F / -10°C-55°C |
| Working Humidity | 20%-80% (non-condensing) |
| Storage Temperature | 14°F-140°F / -10°C-80°C |
| Storage Humidity | 0-90%(non-condensing) |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
User Manual
0.7mb
