Speco - SP6ECS - 6.5" In Ceiling Speaker with Back Box (Pair)
Part number:
Price:
Product Overview

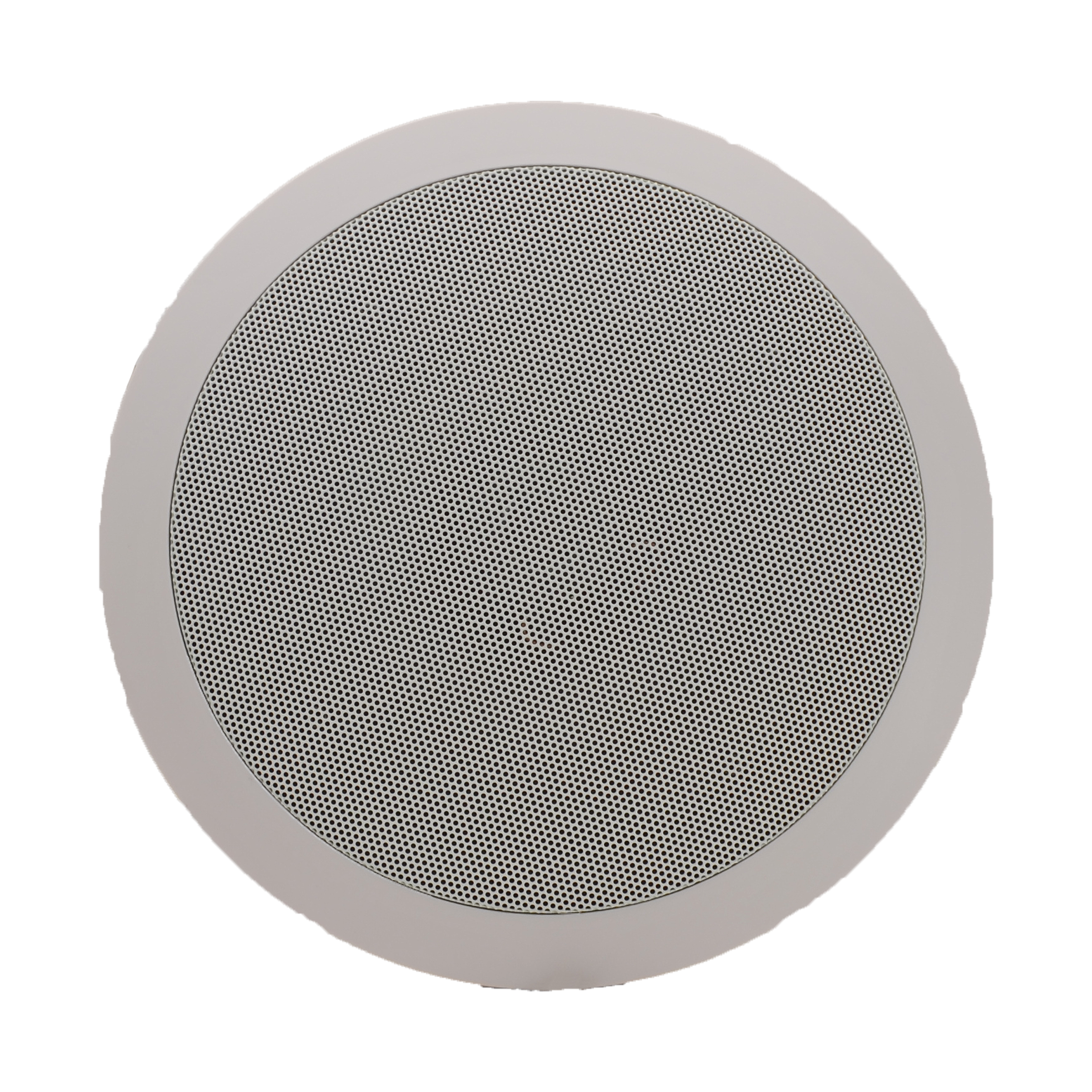

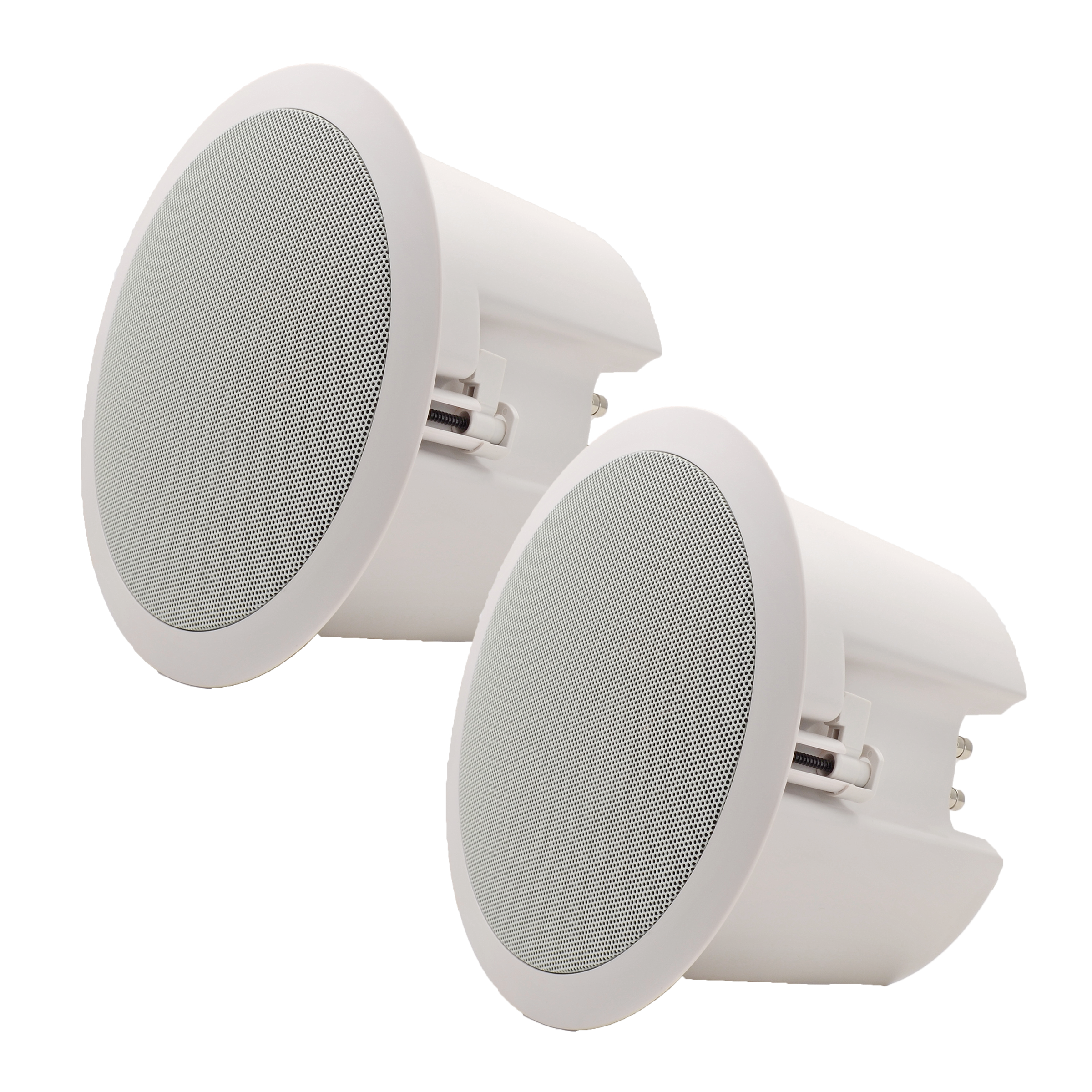

Our 6.5” in-ceiling enclosed speaker system features a plastic back box enclosure, which protects the speaker from dust, dirt and other construction debris, while aiding in the projection of sound into a room. Easy mounting tabs facilitate installation. This model is also available in an 8” version (SP8ECS). Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SP6ECS
Installation Notes
9.43” (Dia.) x 6.1” (D)
| Full Specifications | |
| Woofer Size | 6.5 |
| Speaker Color | Off-White |
| Frequency Response | 65Hz – 20kHz |
| Low Frequency Driver | 6.5” Polypropylene woofer |
| Low Frequency Magnet | 11.6 oz. Ferrite |
| High Frequency Driver | 0.5” Mylar |
| Sensitivity | 90dB (1W/1M) |
| Impedance | 8 Ohms |
| RMS Power | 35W |
| Max. Power | 70W |
| Baffle Material | ABS |
| Back Can Material | ABS |
| Grille Material | Metal |
| Wire Connection Type | Press Terminal |
| Weight | 3.52 lbs. |
| Cut-Out Dimensions | 8.25” |
| Minimum Mounting Depth | 5.6” |
| Baffle Ring and Grille Color | White |
