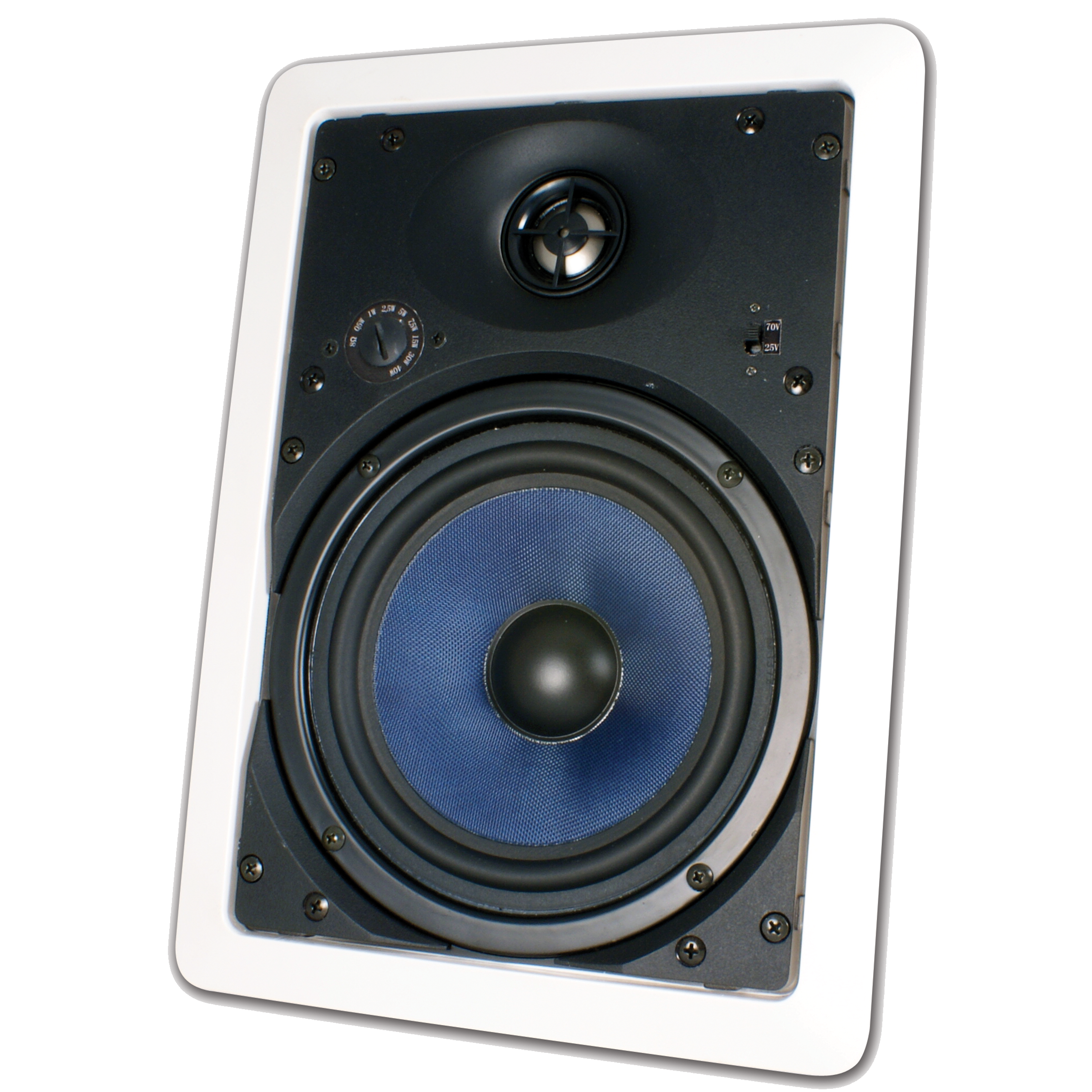

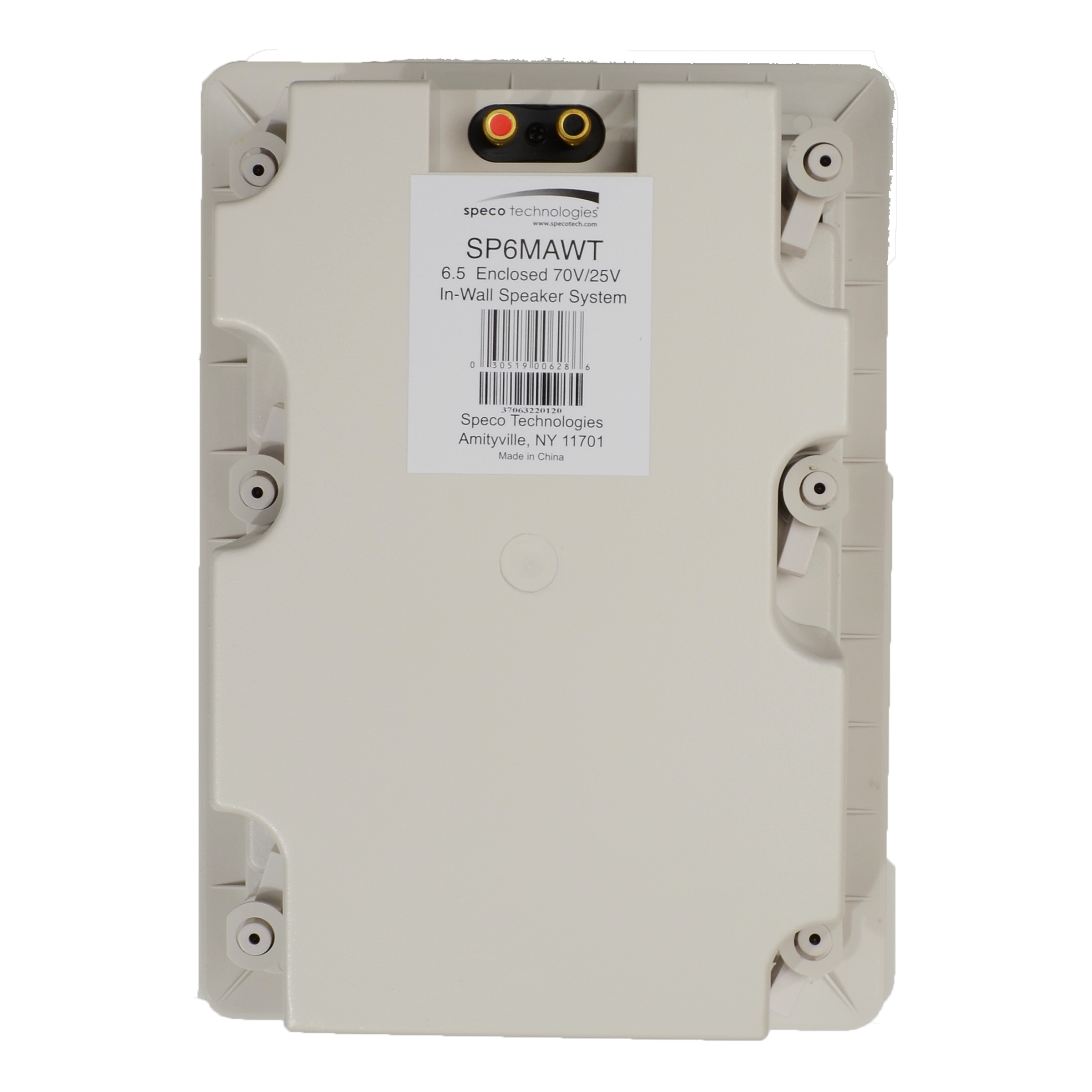

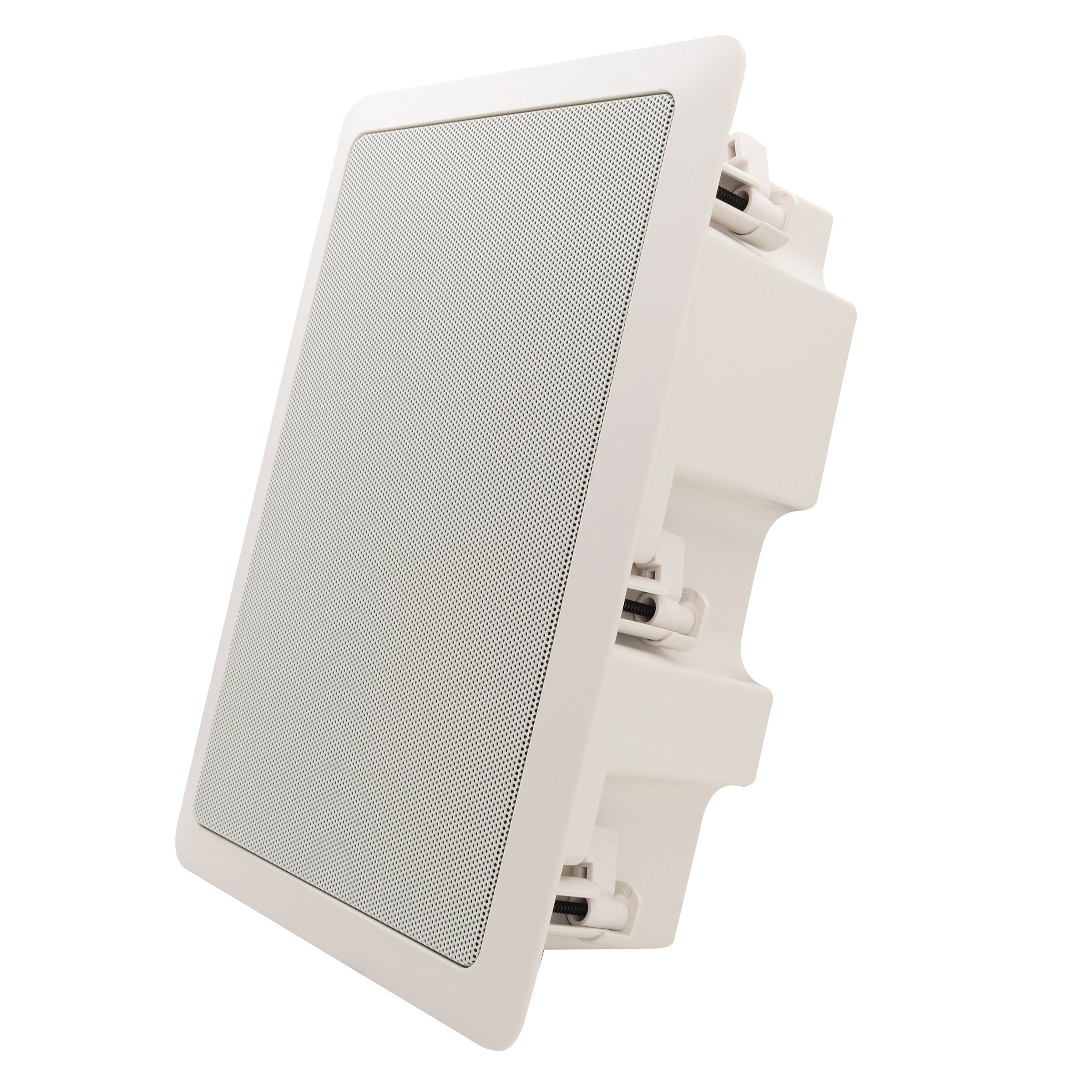

Speco - SP6MAWT - 6.5" Premium In-Wall MA Speaker with Fiberglass Cone & Backbox
Product Overview
Speco Technologies’ Multi-Application Series was designed to make the contractor’s work as easy and time-efficient as possible. Our all-in-one unit comes pre-assembled with back can and mounted transformer. It features a quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial. The 8 individual wattage tap settings cover a complete range of uses. This flame-retardant ABS unit also comes with insulated wires and built-in easy mount tabs for securing the unit. The MA Series is the ideal, all-purpose value speaker covering a wide range of commercial applications. The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs.
Key Configuration
Model: SP6MAWT
Installation Notes
8.63" (W) × 12" (H) × 4.25" (D)
| Full Specifications | |
| Woofer Size | 6.5 |
| Speaker Color | Off-White |
| Speaker Specifications | |
| Model | SP6MAWT |
| RMS Power | 40W |
| Max Power | 80W |
| Transformer Type | 70/25V (selectable) |
| Transformer Power Taps | 40W, 30W, 15W, 7.5W, 5W, 2.5W, 1W, 0.5W, 0.25W, & 8 Ohms |
| Termination Type | Press terminal |
| Sensitivity (1W/1M) | 89dB |
| Maximum SPL (Pmax/1M) | 106dB |
| Driver Impedance | 8 Ohms |
| Magnet | 10 oz. Neodymium |
| Frequency Response Range | 50Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120° Conical |
| Drivers | 6.5" Fiberglass woofer 1" Titanium tweeter |
| Speaker Dimensions | 8.63" (W) × 12" (H) × 4.25" (D) |
| Mounting Dimensions | 7.5" (W) × 10.75 (H) |
| Weight | 5.5lbs |
| Material | Baffle: Fire-resistant ABS Backcan: Fire-resistant ABS Grille: Metal |
