Speco - SPG66TC - 6" Speaker / New Grill Combo w/ Volume Control
Part number:
Price:
Product Overview

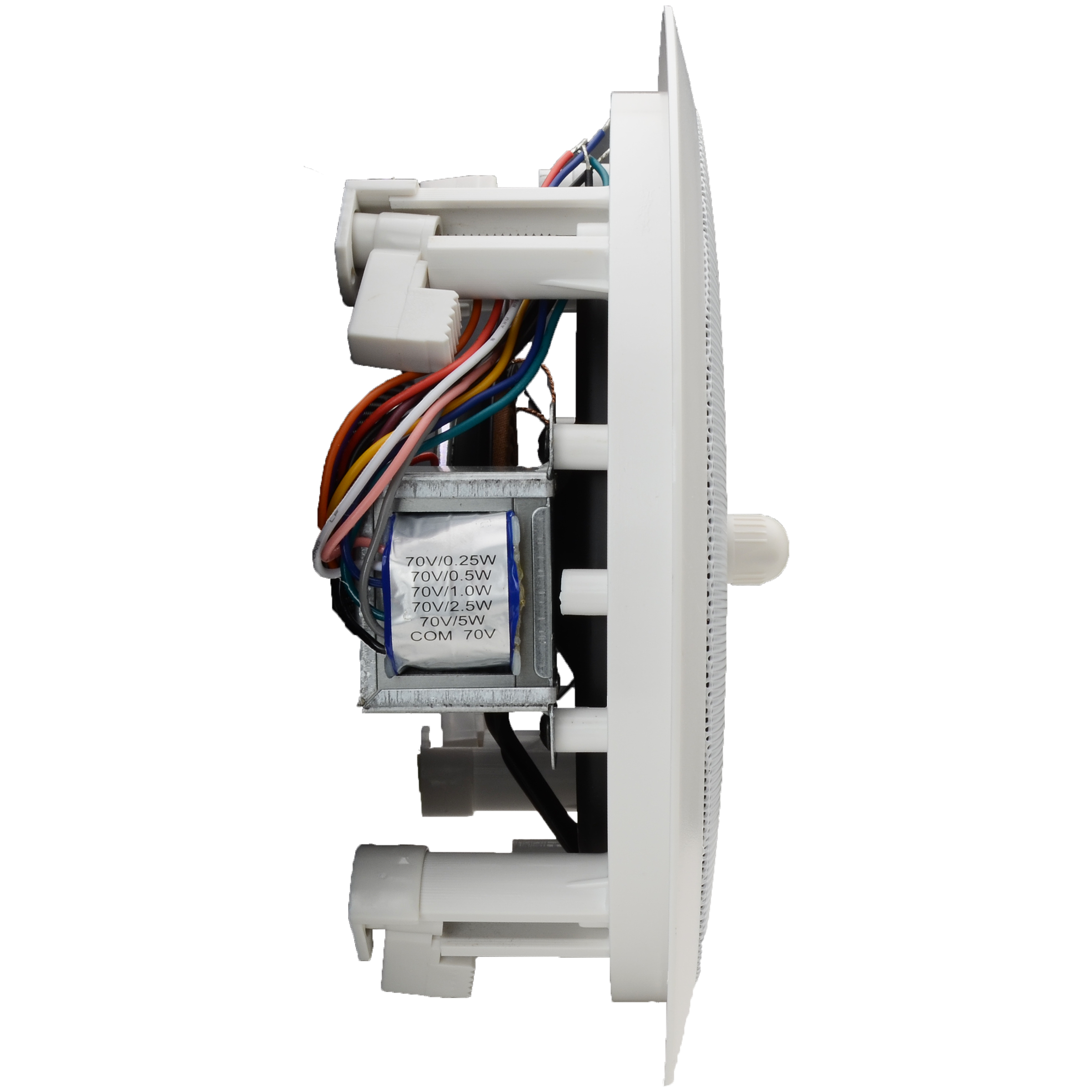

• Modern style mesh steel grille • 70/25V transformer with colored leads • Dog-ear mounting clamps for secure installation \*also available with volume control knob \*\*Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SPG66TC
Key Features

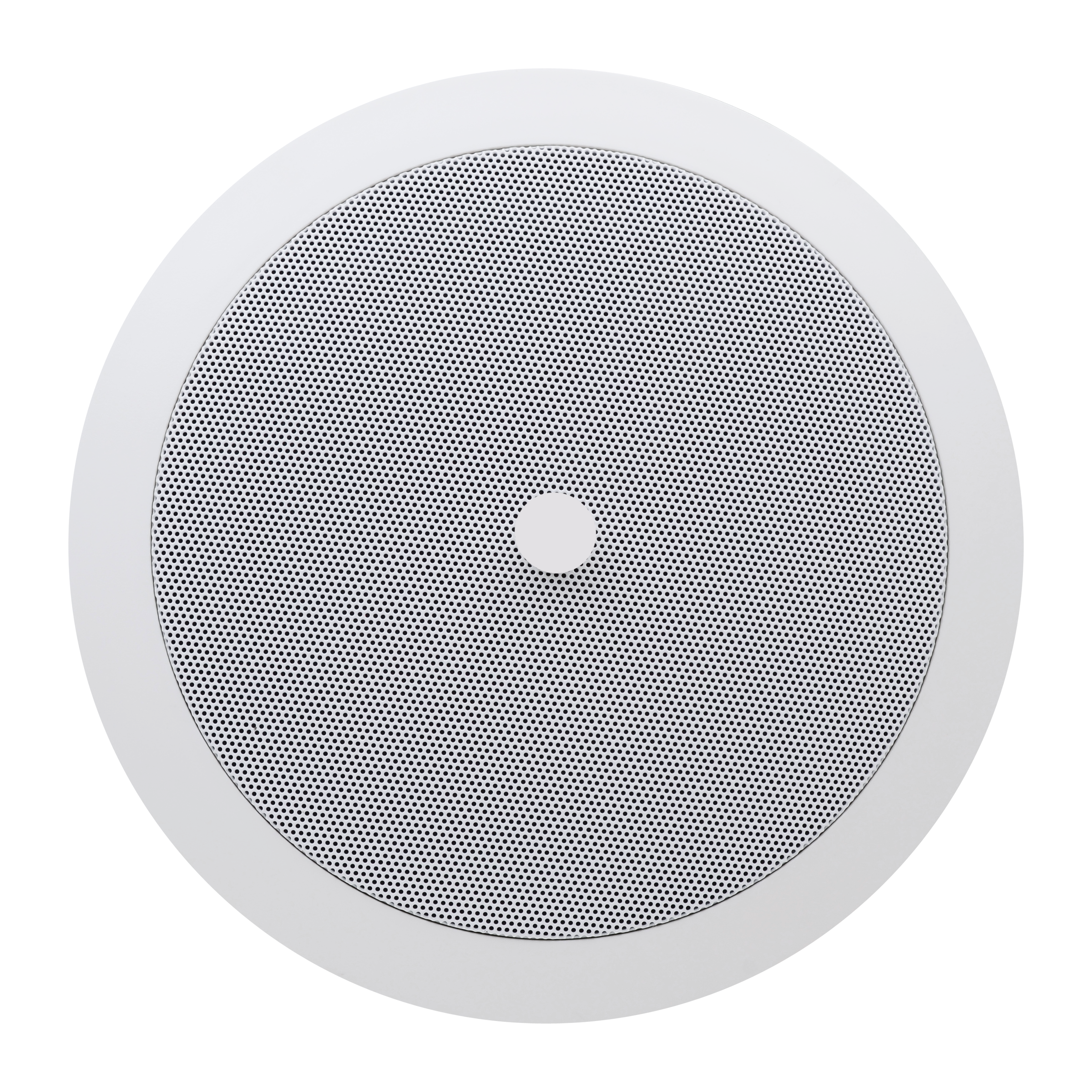

- • SPG86TC and SPG66TC feature volume control knob centered on grille.
- • Lifetime warranty.
Installation Notes
9” (Dia.) x 3” (D)
| Specifications | |
| Max. Power | 15W |
| Transformer Type | 70/25V |
| Transformer Power Type | 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms |
| Termination Type | Colored leads |
| Sensitivity (1W/1M) | 91dB |
| Maximum SPL (Pax/1M) | 100dB |
| Driver Impedance | 8 Ohms |
| Magnet | 5 oz. ferrite |
| Frequency Response Range | 120Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120º Conical |
| Speaker Dimensions | 9” (Dia.) x 3” (D) |
| Mounting Dimensions | 7.625” (Dia.) |
| Minimum Mounting Depth | 2.4” |
| Material | Baffle: High impact polystyrene; Grille: Steel |
| Color | Off-White |
