Speco - SPIPG66T - 6.5" IP Modern Grille In-Ceiling Speaker
Part number:
Price:
Product Overview

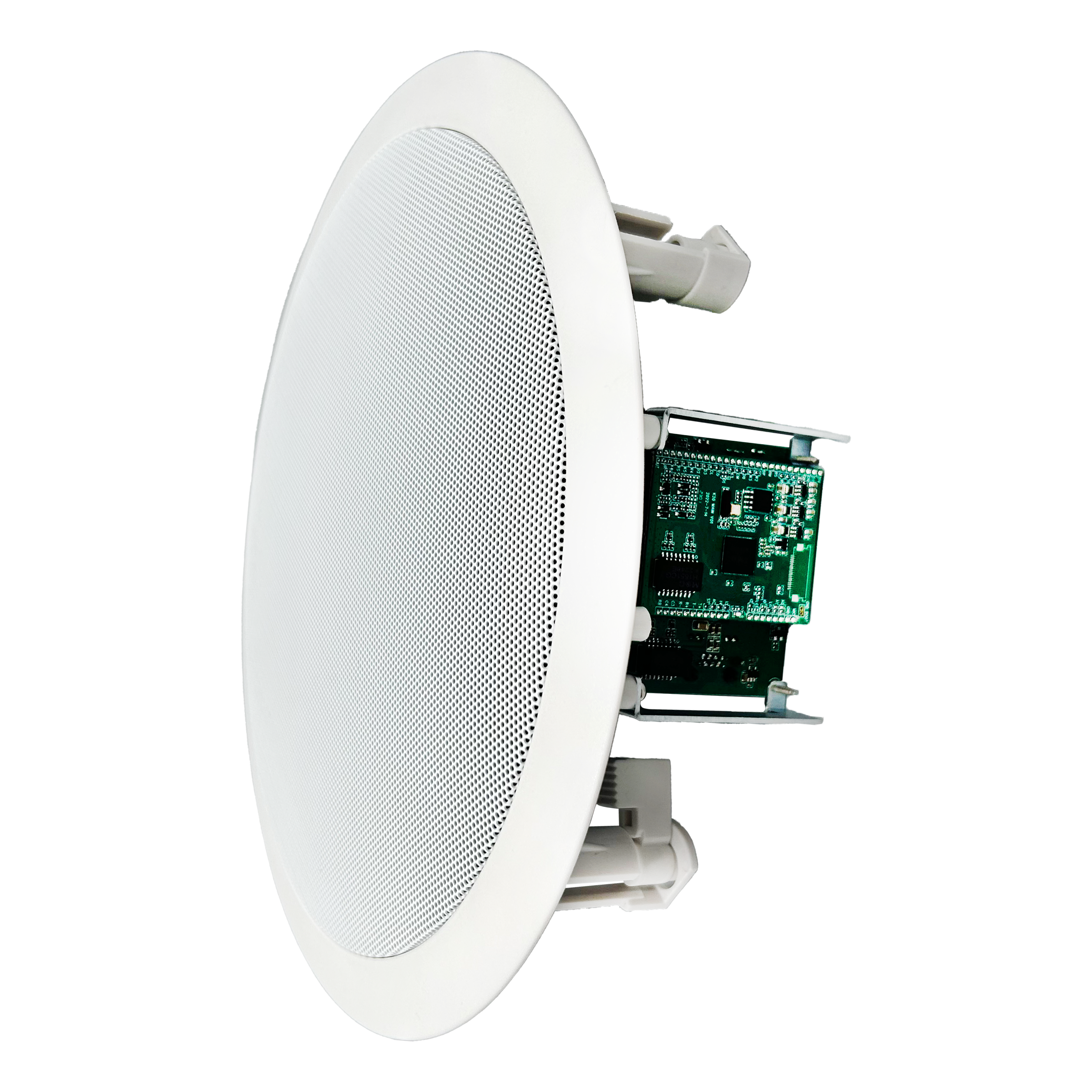

6.5” IP Modern Grille In-Ceiling Speaker
Key Configuration
Model: SPIPG66T
Key Features
- • Works with Speco Audio Manager Software.
- • Compatible with SecureGuard® VMS via ONVIF.
- • Supports pre-recorded messages, schedules, and alarm trigger.
- • PoE or 12/24VDC.
- • Two-way audio support with mic input.
Installation Notes
9" (Dia.) x 3" (D)
| Full Specifications | |
| Speaker Color | White |
| RMS Power | 10W |
| Max. Power | 15W |
| Maximum SPL (Pax/1M) | 90dB |
| Driver Impedance | 8 Ohms |
| Frequency Response Range | 85Hz ~ 18kHz |
| Dispersion @ 1000Hz | 120° Conical |
| Driver | 6.5" paper cone woofer, 0.8" dual cone tweeter |
| Speaker Dimensions | 9" (Dia.) x 3" (D) |
| Mounting Dimensions | 7.625" (Dia.) |
| Minimum Mounting Depth | 2.4" |
| Weight | 1.9 lbs. |
| Material | Baffle: High impact polystyrene Grille: Steel |
| Color | Off-White |
Name
Description
Size
Downloads
File
Specification
1.3mb
