Product Overview

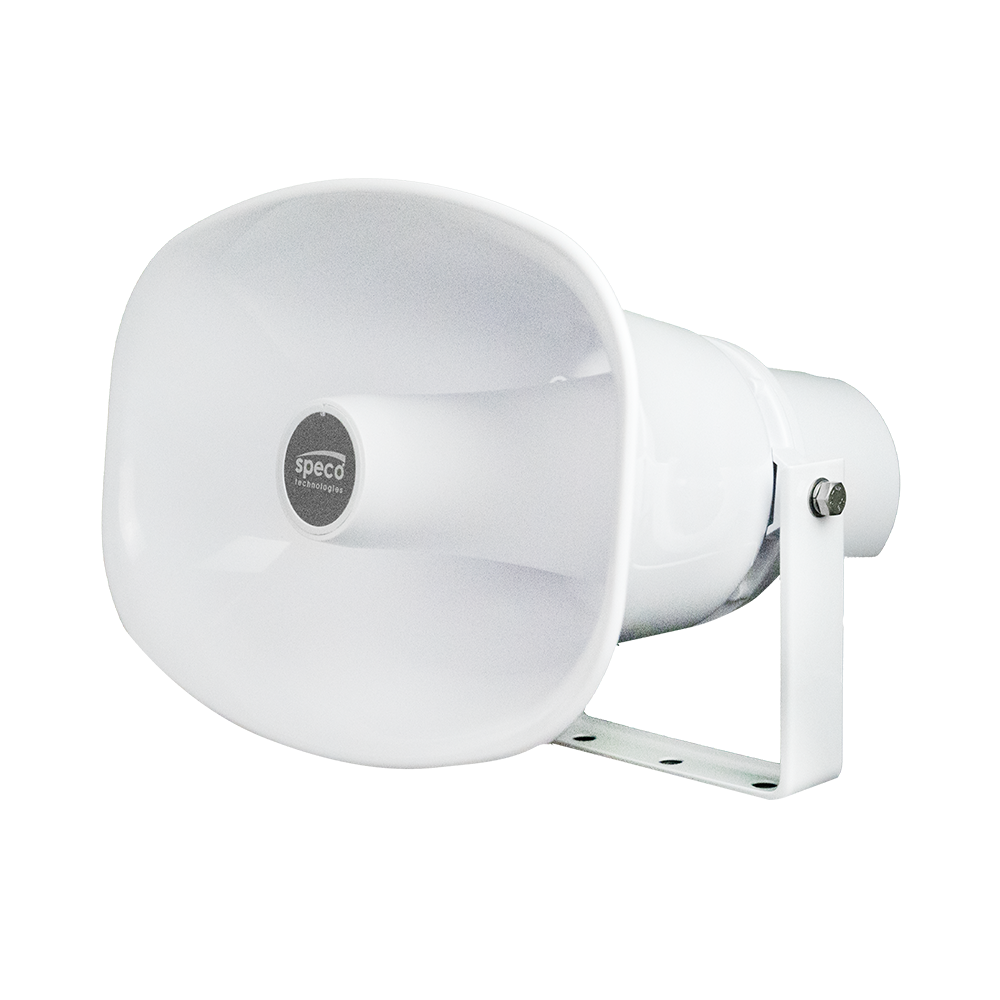

30W IP Horn Speaker
Key Configuration
Model: SPIPH9AM
Key Features
- • Works with Speco Audio Manager Software.
- • Compatible with SecureGuard® VMS via ONVIF.
- • Supports pre-recorded messages, schedules, and alarm trigger.
- • IP67 waterproof design is ideal for outdoor installations.
- • PoE or 12/24VDC.
Installation Notes
11.2” (W) x 8.07”(H) x 11.5”(D)
| Audio | |
| Codec | OPUS 48kHz, MP3 44.1kHz, G.722 ADPCM 16kHz, G.711 PCMU 8kHz, G.711 PCMA 8kHz |
| Max Sound Pressure Level | 120dB |
| Frequency Response | 350Hz~8kHz |
| Frequency Range | 500-2kHZ ± 10dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Network | |
| Security | Password protection, IP address filtering, digest authentication, user access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | integrated with SIP/PBX. VoIP 2 SIP Accounts, SIP Direct IP Call, RTP Multicast |
| Amplifier | |
| Class | D |
| Amplifier Description | Built-in 30W Amplifier |
| Audio Specification | |
| Inputs | (1) Alarm Inputs |
| General | |
| Operating Temperature | -22˚F - 140˚F |
| Operating Humidity | 5% - 85% |
| Material | ABS (IP67 waterproof) |
| Rate Power | 30W |
| Power Supply | PoE or 12-24V |
| External Connectors | |
| PoE | |
| Audio-In | |
| Alarm In | |
| DC Power | |
Name
Description
Size
Downloads
File
Quick Guide
0.3mb
File
User Manual
0.7mb
File
Specification Sheet
1mb
