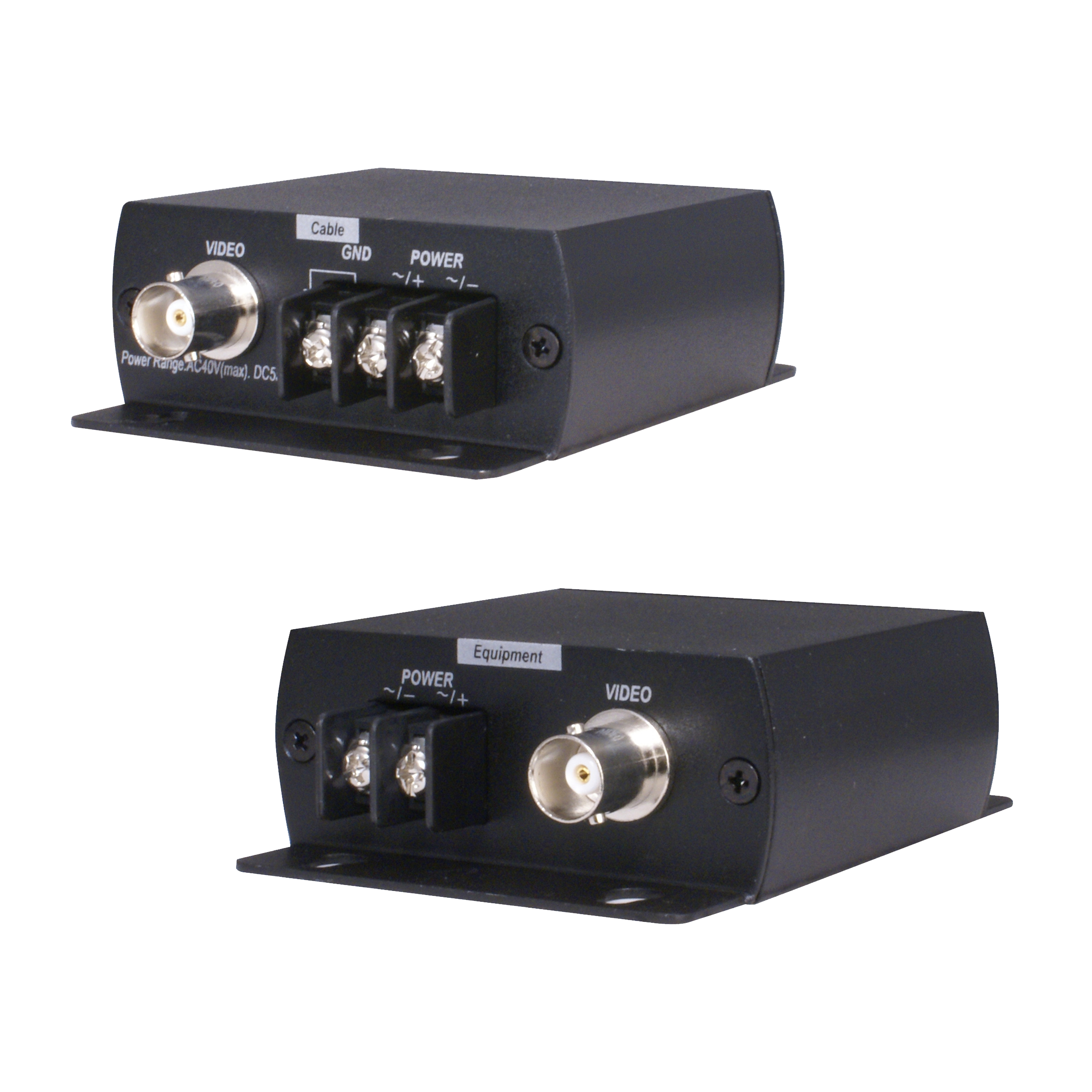

Speco - SPVP - Video & Power Surge Protector
Part number:
Price:
Product Overview
• Two-stage protection: 130V, AC/DC12V • 2-pin terminal+ BNC male to 2-pin terminal • Max power input: AC 40V Max DC 56V Max • Max current up to 2 Amp **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SPVP
Key Features
- • A great compliment to installations that already meet UL grounding requirements.
- • Protects equipment from high voltage surges from nearby lightning strikes.
- • 3 pin terminal + BNC female to 4 pin terminal + BNC female.
- • Wide range of applications: CCTV systems, antennas, receivers (FM, Satellite), cameras, monitors, multiplexers/quads, VCRs, etc.
- • Sold each, can use in pairs to protect equipment on both ends.
Installation Notes
3.4" (L) x 2.6" (W) x 1" (H)
| Full Specifications | |
| Protection Level | Two-stage protection: 130V, AC/DC12V |
| Power Input | AC 40V Max, DC 56V Max |
| Max Current | Up to 2 Amp |
| Surge Protection Attack Time | 1 ns |
| Maximum Surge Voltage | 4 KV |
| Surge Life | 300 surges of 100Amps |
| Normal Resistance Across Coax | 10,000 M Ω |
| Surge Resistance | Approx. 0 Ω |
| BAND PASS | 0 ~ 1 GHZ |
| Power Passing Capability | 130V AC/DC, 65 Vrms @10Amps |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (75 Ω ) | 16 dB |
| Connectors | Terminal |
| Unit Dimensions | 3.4" (L) x 2.6" (W) x 1" (H) |
| Weight | .3 lbs |
