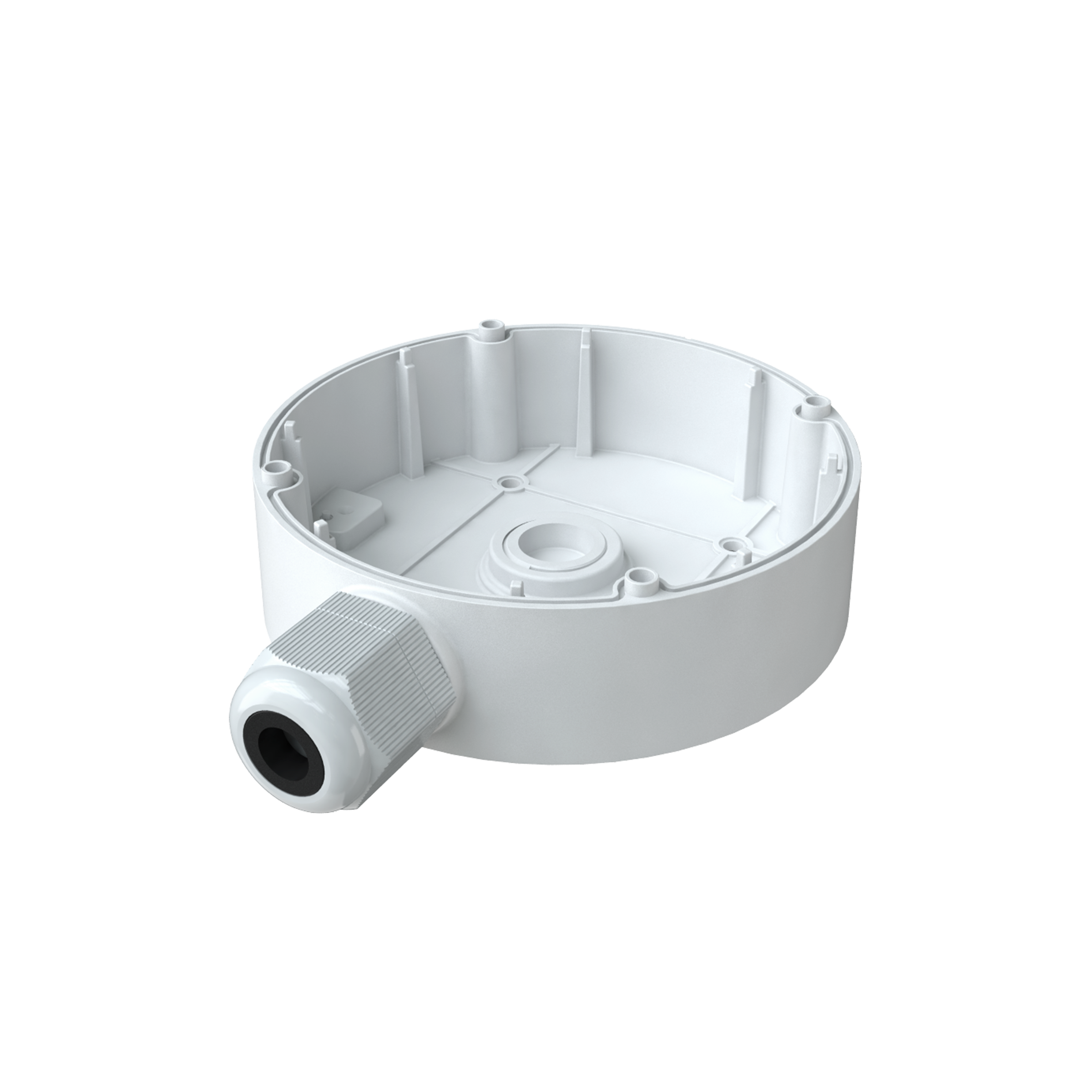

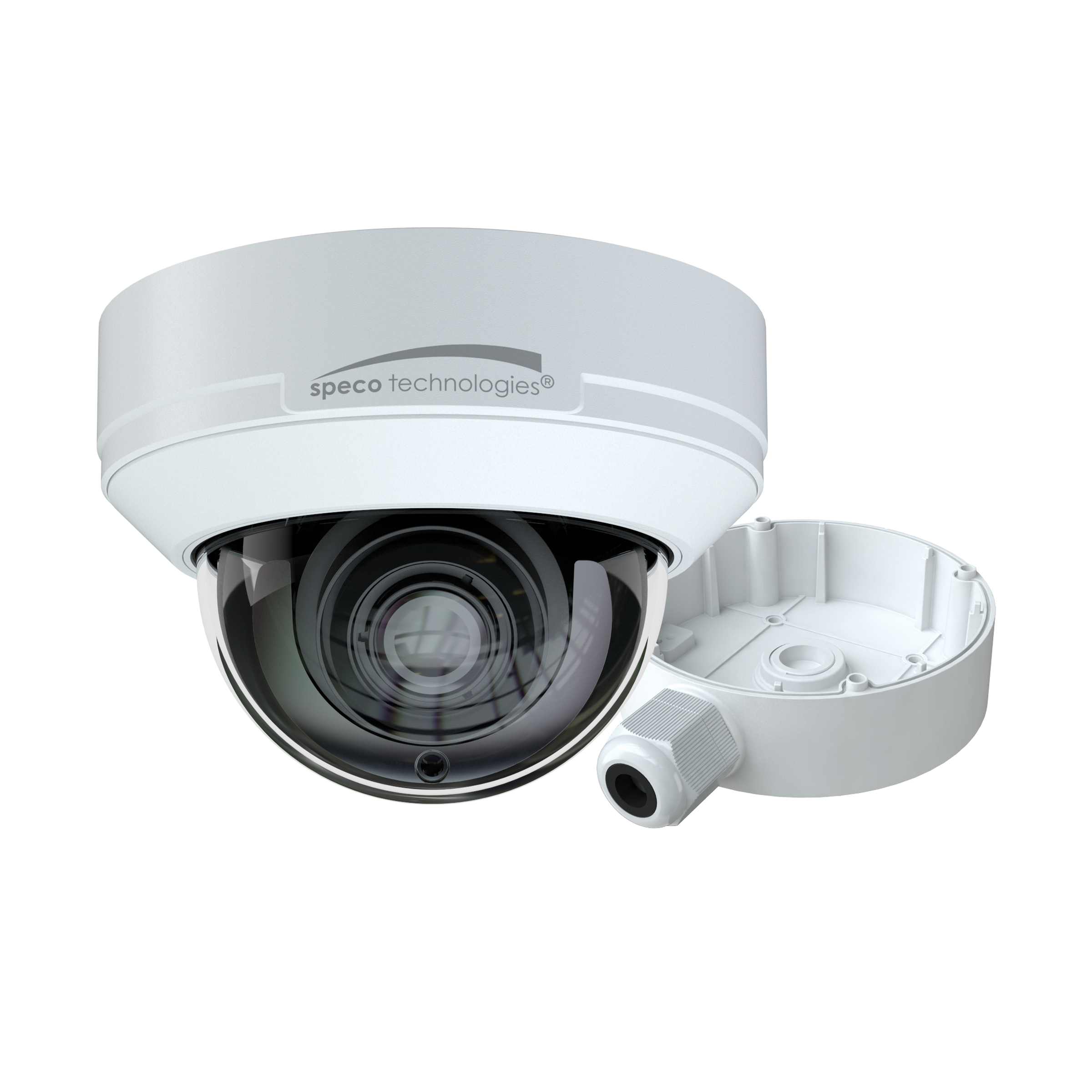

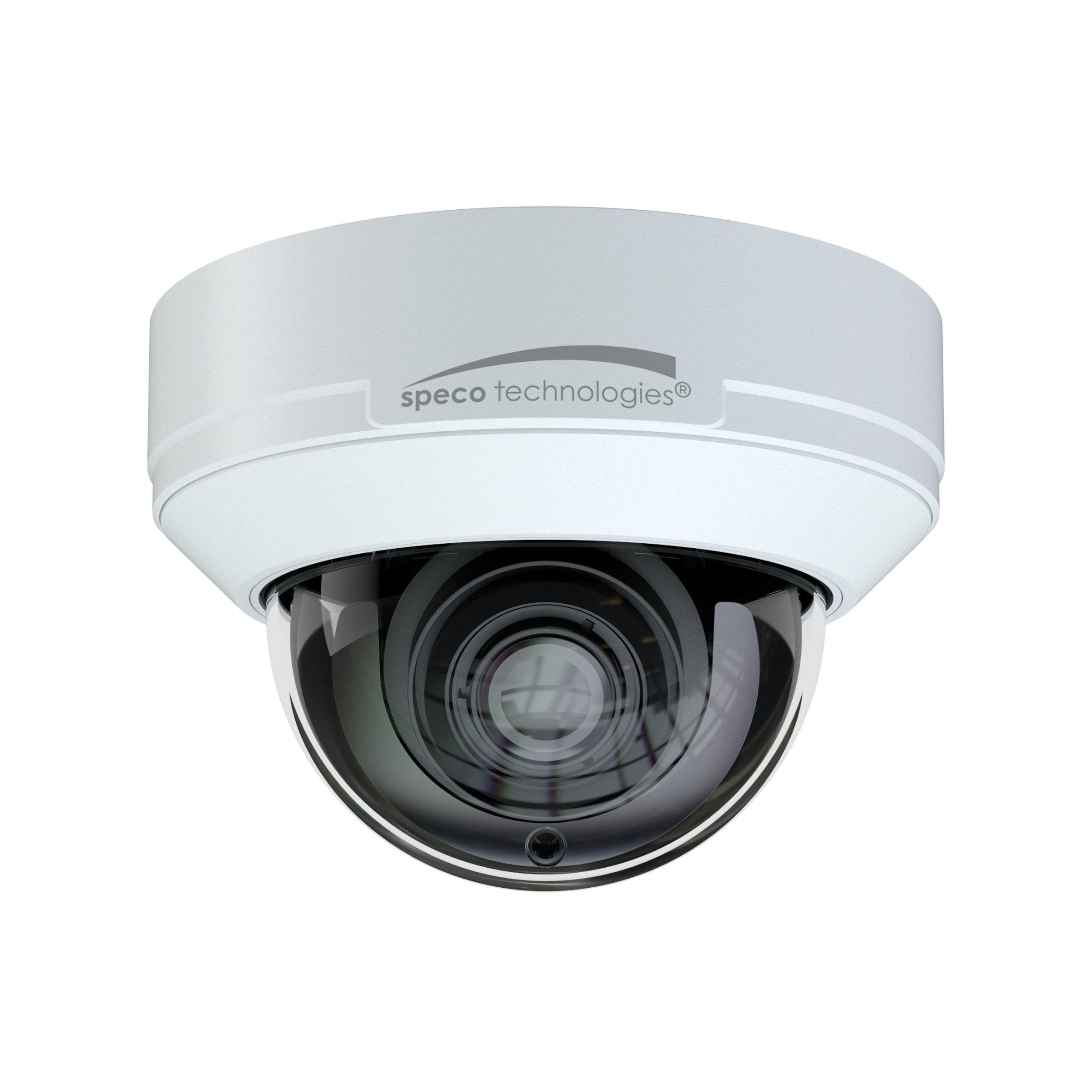

Speco - V5D2M - 5MP HD-TVI IR Motorized Lens Dome Camera with Included Junction Box
Part number:
Price:
Product Overview
5MP HD-TVI IR Motorized Lens Dome Camera with Included Junction Box
Key Configuration
Model: V5D2M
Key Features
- • Supports up to 5MP @ 20FPS.
- • Up to 4x optical zoom.
- • IR Distance: 98’ (depending on scene reflection).
- • DWDR.
- • Motorized lens with auto focus.
Installation Notes
3.9"(H) x 5.6"(Dia.)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 5MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.7" CMOS |
| Resolution | 5MP 2560x1936 |
| Video Output | AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) |
| Image System | PAL/NTSC |
| Electronic Shutter Speed | Auto; 1/50s-1/100000s(PAL);1/60s-1/100000s (NTSC) |
| Minimum Illumination | Color: 0.01lux @ F1.2(AGC ON); B/W: 0 lux @ IR ON |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Function Control | OSD (UTC Control) |
| Day/Night | Yes |
| WDR | Yes |
| DNR | Yes |
| Gain Control | Auto |
| White Balance | ATW |
| Defog | No |
| BLC | Yes |
| LSC | Yes |
| Mirror | Yes |
| Sharpness | Yes |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) |
| Power Consumption | IR OFF ≤ 1W; IR ON ≤ 6W |
| Operating Temperature | -22°F - 122°F |
| Relative Humidity | 10% ~ 90% |
