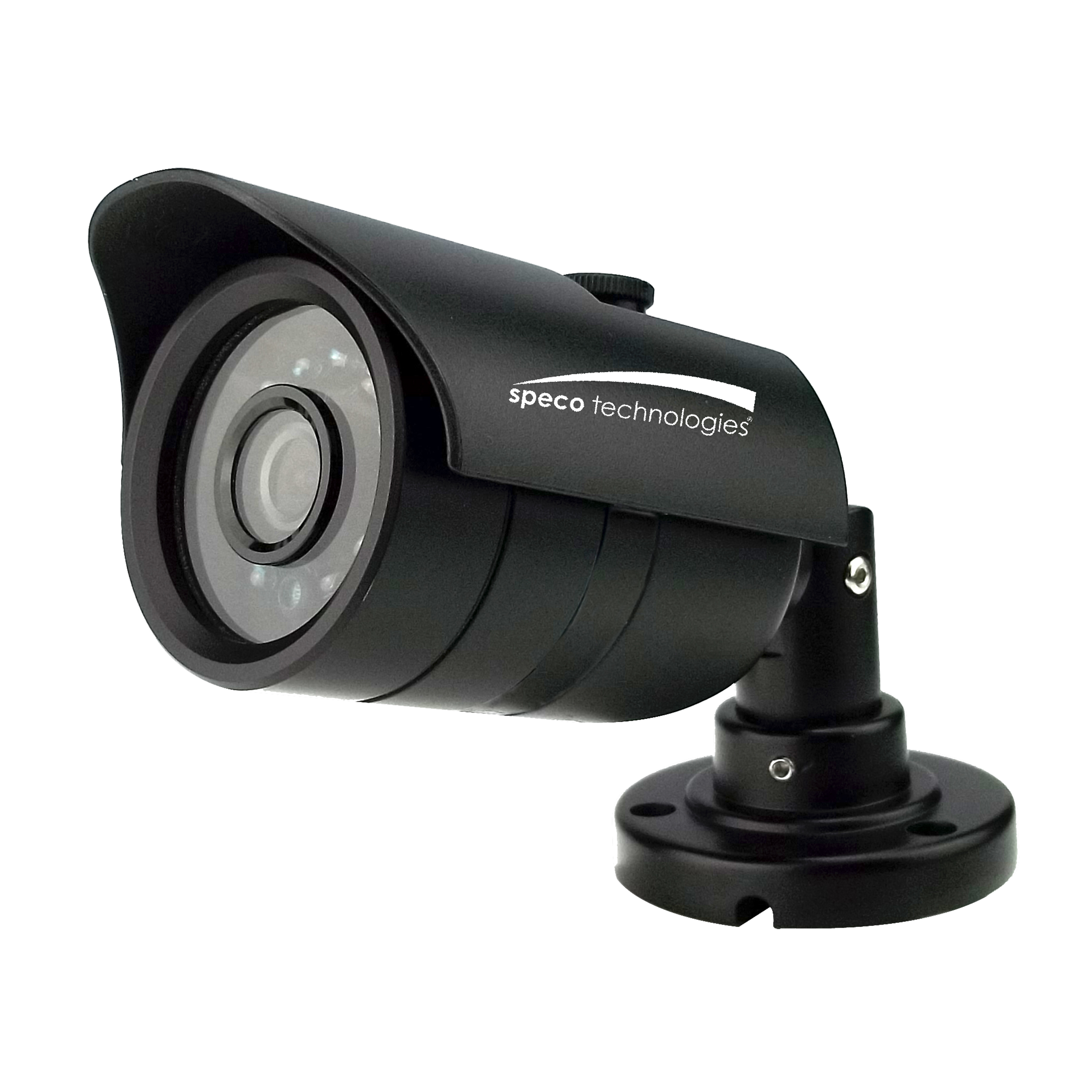

Speco - VL62T - HD-TVI Day/Night Camera w/12 IR LEDs
Part number:
Price:
Product Overview
• Full HD resolution/over coax (HD-TVI) • Color Day/Night camera • Built-in 3.6mm lens • 12 IR LEDs with 60 ft. range (depending on scene reflection) • Weather resistant operation • IP67 compliant • 12VDC power supply included • 5 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: VL62T
Installation Notes
4.37” (L) x 3.98” (H) x 2.46” (Dia.)
| Full Specifications | |
| Housing Color | Black |
| Image Sensor | 1/2.7” Sony CMOS |
| Resolution | 1920 x 1080 |
| Minimum Illumination | 0 lux with IR on / 0.001 lux IR off |
| Effective Pixels | 1928 (H) x 1088 (V) |
| Number of IR LEDs | 12 |
| IR Range | 60 ft. (depending on scene reflection) |
| IR LED Wavelength | 850nm |
| Electronic Shutter Speed | 1/60 sec. – 1/1,000,000 sec. |
| Video S/N Ratio | More than 54dB |
| Gamma | 0.45 typ. |
| Video Signal Output | 1.0Vp-p / 75 ohms |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Backlight Compensation | Yes |
| AGC | Yes |
| Operating Temperature/Humidity | -4° F - 122° F / 20% - 90% RH |
| Storage Temperature | -13° F - 158° F |
| Power Consumption | LED off (50mA) / LED on (120mA) |
| Power Supply | 12VDC (power supply included) |
| Housing | Metal |
